ok i built a adapter to put a holly on my stock 12a manny do you think it will work ok ??

also the rod for the oil squirters how there any peticular way it sould be or just hook up to the car throttle btacket?



pics???



in the works of porting it all out now i will have pics up this weekend



yeah the holley will work on the stock manifold as long s u clear the stock mazda intake for the hollet butter flies and the oil metering rod u can hook it up to the water pump iron where the air pump aused to be if u have it removed



Find a 2nd gen mop rod, they are longer and thicker. You will need to drill the hole in the mop rod lever arm larger, but it will work, then bend to fit. General consensus is you will need a 1" spacer between the carb and intake, both to block heat transfer and to allow the butterflies to fully open.

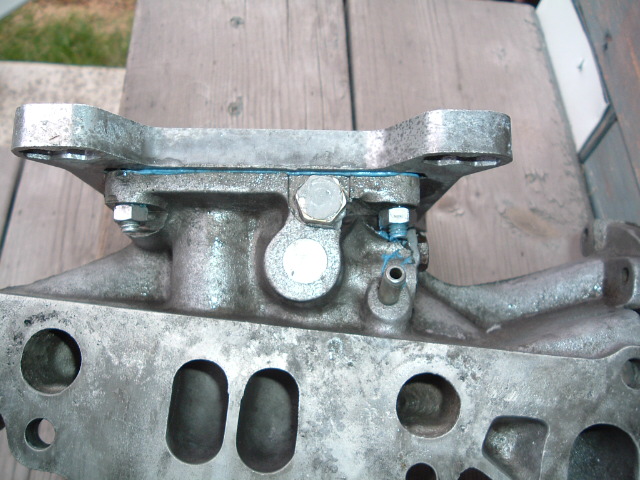

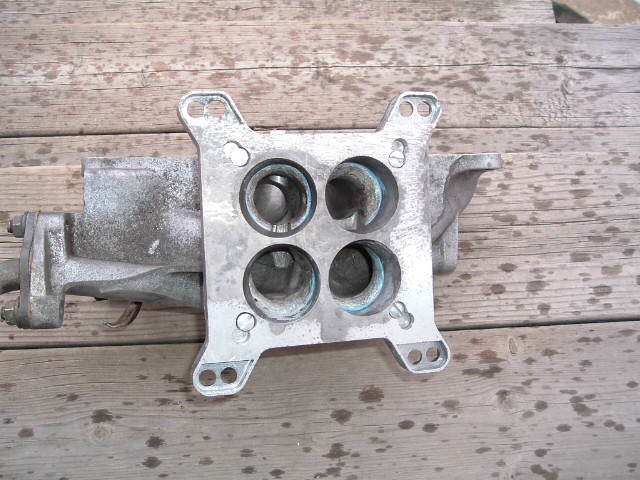

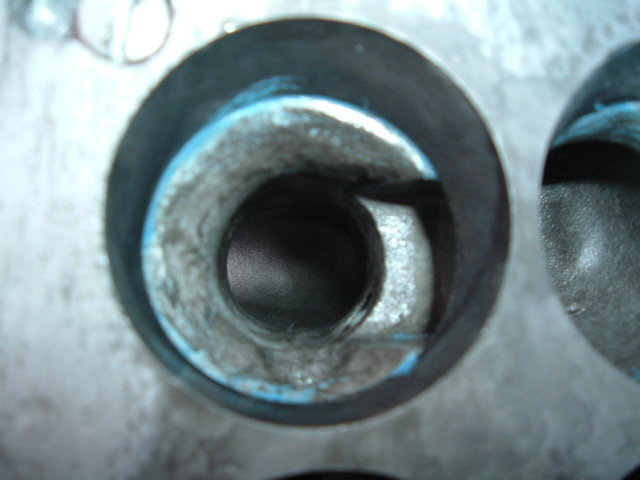

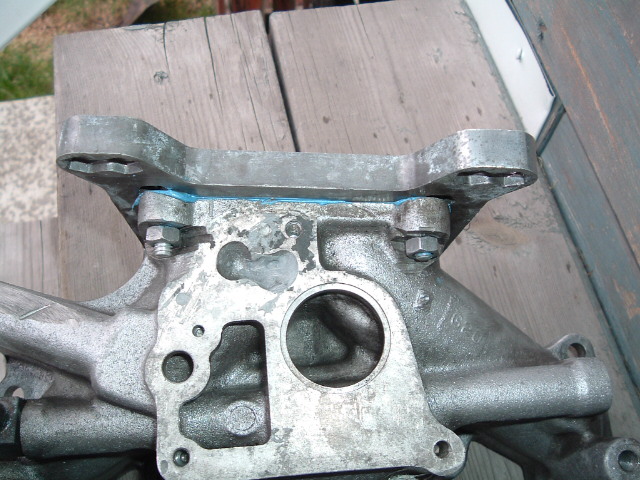

Here is my old manifold project. Cost was about $8 for a grinder bit, $3 for JB weld and the rest was just junk I had kicking around.
