starter (big pic)

hi i got a new starter because my old one well died and i am asking where do all the wires go?





old starter

Reply
Old Mar 17, 2008 | 07:48 PM
  #2
yetterben's Avatar
7less for now!
Tenured Member 10 Years

Joined: Oct 2007
Posts: 1,372
Likes: 0
From: eau claire
um big fat postive cable to the far left ign source to spade connector
Reply
Old Mar 17, 2008 | 07:56 PM
  #3
TheDriver216's Avatar
Get the shovel and boots!
Tenured Member 05 Years
iTrader: (2)

Joined: Jan 2007
Posts: 273
Likes: 0
From: Cleveland,OH
.

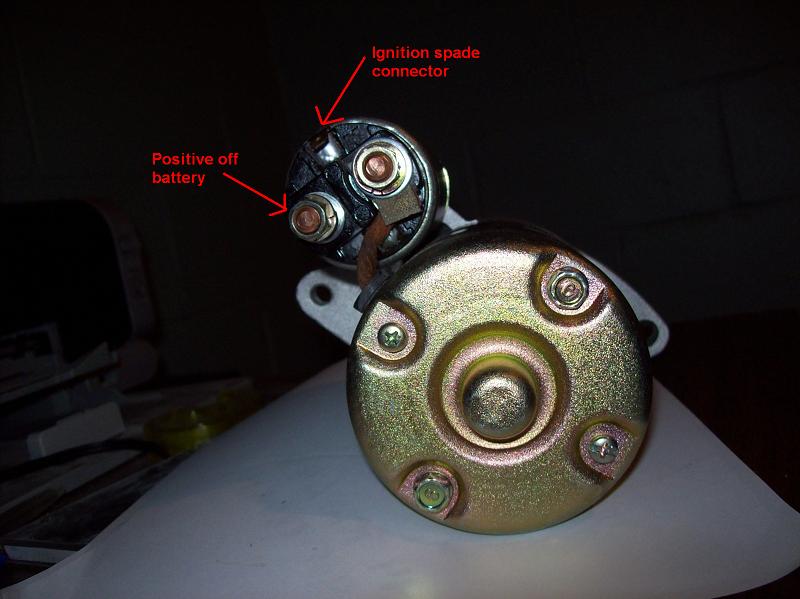

Attached Thumbnails starter (big pic)-w1r5hz.jpg
Reply
Old Mar 17, 2008 | 07:58 PM
  #4
openshot's Avatar
Thread Starter
Wankel Me This!!
Tenured Member 05 Years

Joined: Nov 2005
Posts: 1,241
Likes: 0
From: St Cath Canada
ok thanks. the one not listed i dont put anything on that?
Reply
Old Mar 17, 2008 | 08:51 PM
  #5
'84-12A-GSL's Avatar
Rotary Enthusiast
Tenured Member 05 Years

Joined: May 2007
Posts: 770
Likes: 0
From: Canada
Yeah, big cable coming from battery to right terminal, small 16ga(?) wire with female connector goes on the spade connector, and small 16ga (?) wire with loop on the end to left terminal.
Reply
