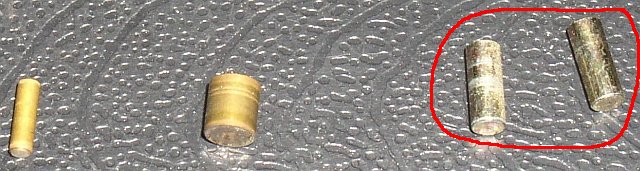

OK, so after figuring out what I did wrong the last time I rebuilt the carb on my '79 ( https://www.rx7club.com/1st-generation-specific-1979-1985-18/couple-nikki-questions-521479/ ) I decided to go ahead and tear it down the rest of the way and put in the rebuild kit I got from NAPA. But I can't figure out where the two weights on the right go. I found one on the bench when I was done tearing it down, and I saw the other come out of the throttle body when I was spraying it with compressed air. Any idea where these go? For reference, I included the accelerator pump inlet weight (left) and the accelerator pump outlet weight (second from left).


Thanks,
Rich



They arent checkweights. They're locating pins for the throttle body to main body interface. They're cad plated steel, not brass. On the carb base/TB you see where theres a line of holes? Well they go in 2 of them. Exactly which holes I will tell you for the sum of ONE MILLION DOLLARS!



























J/k! Im at work and dont rememberwhich holes offhand. Dont want to steer you wrong. Ill have a look when I get home in a couple of hours and report back.

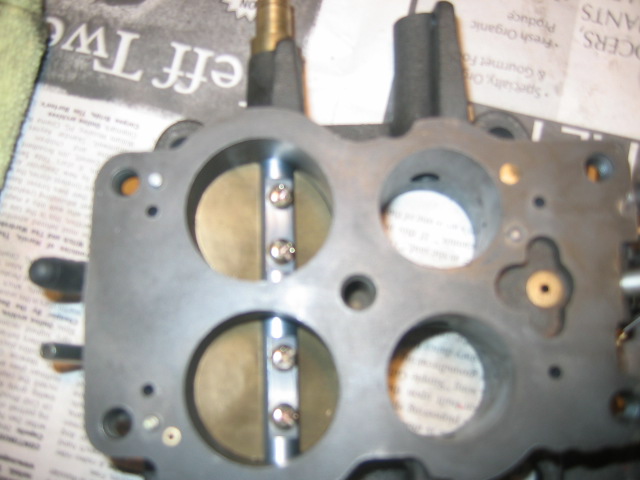

Ok I Can Help You With The Little Silver Ones Heres A Pic

May Be Different Cause My Ones Off A 83
Hopefully Someone Can Help Ya With The Weights



Thanks Carl - I appreciate it. And you're million dollars is in the mail

Rich



There ya go. Its the 2 outboard holes. I'll have to waive the fee now. Thanks blwfly, way to go, you just cost me a million forum bux.



well i need some money to pay off my new fuel pump i just purchaced like 10sec a go

heres my account 1334 5563 344
lol



lol



OK...I'll send a half a million to each of you...many thanks!

Rich



seeing threads over
hay carl did i get a good setup ?
cater fuel pump crt-p4594
holly regulator 2-9psi hly-12-803
and a shitty 15psi gauge

what psi should i run the nikki on its stock motor and do i have to cap the fuel return lines
i dont think this regulator has the return
