Side view mirrors

Can anyone tell me what year side view mirrors are interchangable? I have a an 80 SA, that I need both mirrors for. I have found a few FB's that I can get mirrors from but I want them to use the factory holes in the door? Also, will the power mirrors work on my SA even if I don't use the motors?
Reply
Old Oct 10, 2007 | 04:43 PM
  #2
Johnny Boost's Avatar
Senior Member
Tenured Member 05 Years

Joined: May 2007
Posts: 309
Likes: 0
From: Loveland CO
I have and 83 GSL that has black mirriors that look just like the silver mirrors on the 79 i'm buying. My GUESS is that all 83 and older RX-7s have the same style of mirrior.

(Hit me up in a few weeks... I might be parting out the 83...)
Reply
Old Oct 10, 2007 | 04:47 PM
  #3
Midwest 7's's Avatar
sellout
Tenured Member 15 Years
iTrader: (4)

Joined: Jan 2005
Posts: 3,078
Likes: 0
From: Lawrence KS
all the mirrors bolt up the same.
Reply
Old Oct 10, 2007 | 04:57 PM
  #4
black79's Avatar
Thread Starter
Full Member

Joined: Nov 2006
Posts: 187
Likes: 0
From: New Brunswick, Canada
even the elsectric ones midwest?
Reply
Old Oct 10, 2007 | 05:40 PM
  #5
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
Originally Posted by black79
even the elsectric ones midwest?
yep

My 81 came with european electric mirrors. Later I put on american ones.

I tried both the euro and US on a friends SA (that came with manual ones) and the all bolt the same
Reply
Old Oct 10, 2007 | 05:53 PM
  #6
85 FB's Avatar
7-less
Tenured Member 05 Years

Joined: Dec 2005
Posts: 2,053
Likes: 0
From: No. Virginia, USA
What do European mirrors look like compared to American ones?
Reply
Old Oct 10, 2007 | 08:18 PM
  #7
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
Originally Posted by 85 FB
What do European mirrors look like compared to American ones?
there you go

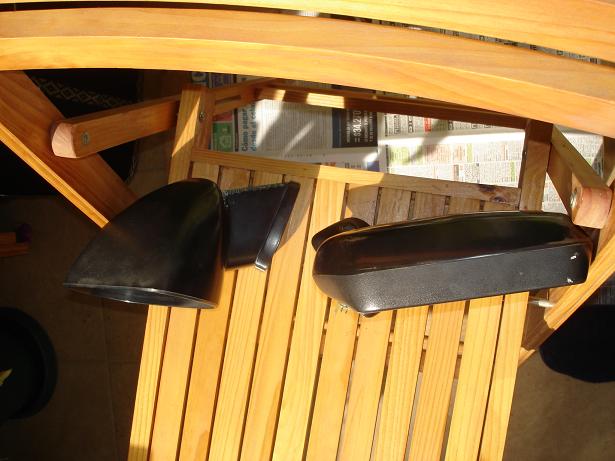

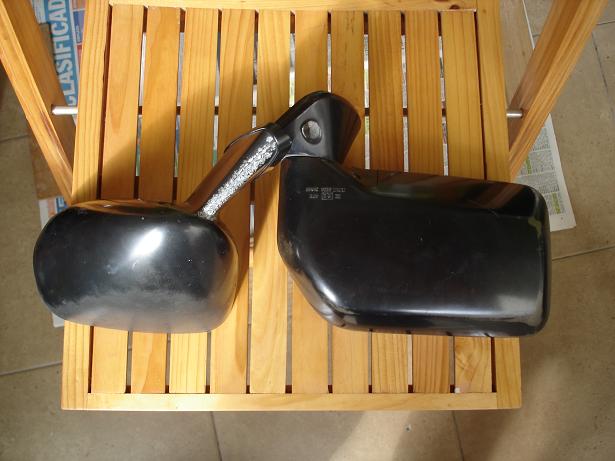

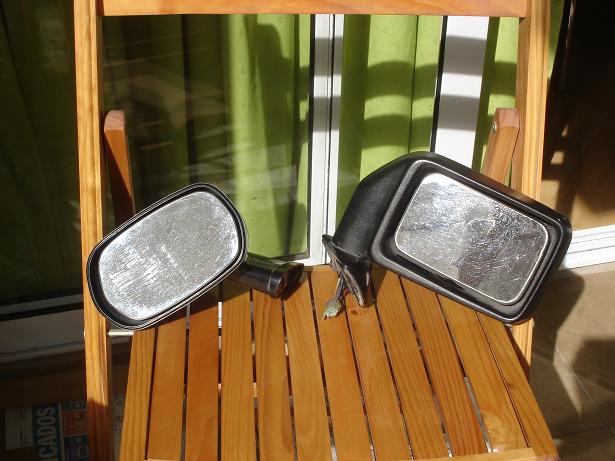

Attached Thumbnails Side view mirrors-dsc06681.jpg   Side view mirrors-dsc06685.jpg   Side view mirrors-dsc06690.jpg
Reply
Old Oct 10, 2007 | 09:33 PM
  #8
Midwest 7's's Avatar
sellout
Tenured Member 15 Years
iTrader: (4)

Joined: Jan 2005
Posts: 3,078
Likes: 0
From: Lawrence KS
Originally Posted by black79
even the elsectric ones midwest?
yes, all as in all.
Reply
Old Oct 11, 2007 | 03:07 AM
  #9
7aull's Avatar
RX HVN
Tenured Member 15 Years
iTrader: (2)

Joined: Jan 2003
Posts: 3,889
Likes: 229
From: Arizona

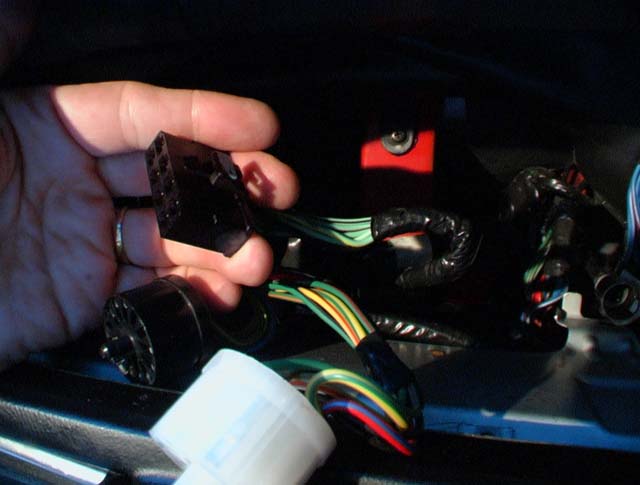

Depending on the SN/ production date of your SA, it may have a big HOLE in the middle of the mirror-mount point on the door (under the mirror) - that's for the wire harness for the mirror to go thru. If you have this hole, then your 80SA is a late enough production number to have the mirror electrics ALREADY WIRED INTO THE _MAIN_ HARNESS - plugs and all (see pic - its 2 unconnected plugs behind the instrument cluster)

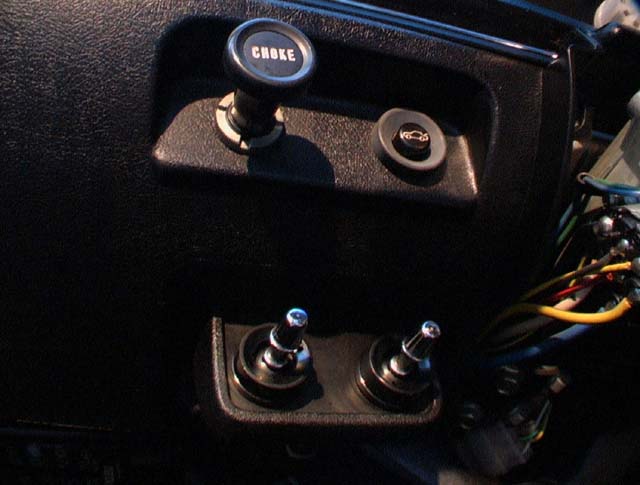

BUT: no DOOR harness* - Those you will need to pull from a donor FB to connect the mirrors to the main harness ... then of course, you will need to find the old-skool joy-stick mirror switches unique to the SA.

*obvious exception is the lucky owners of Anniversary "X" 80 RX or the 80 "LS" which come with the power mirrors

Stu Aull
80GS (late production)
Alaska

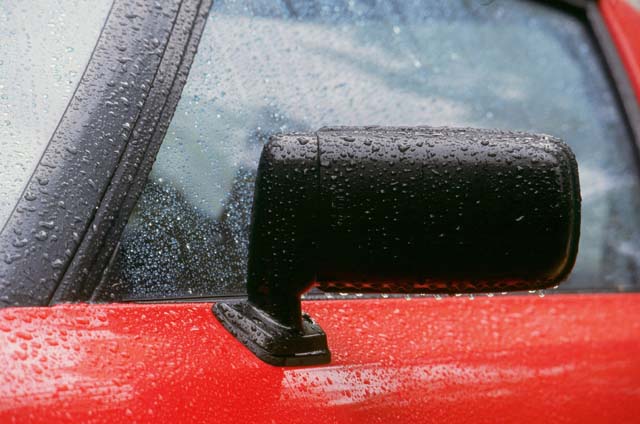

Attached Thumbnails Side view mirrors-rxmirrorharn1.jpg   Side view mirrors-rxmirrorsw.jpg   Side view mirrors-rx-mirror.jpg   Side view mirrors-rxfall.jpg
