Shaved Engine bay
#29
Stu-Tron Get Yo Groove On
iTrader: (4)
Quick camera phone pic of the wire tuck in progress
Took the fender off and there were 3 or 4 holes that got progressively smaller, I chose the 2nd one for the placement, since it was at a right angle to the stock firewall hole. The outer hole is I believe a 2.5", the inside hole is somewhere in the neighborhood of 3". I used the same hole saw for both holes, then used a dremel for about 3 hours (literally) and vacuum to dremel that hole big enough to reuse the stock harness grommit. Gromit. Grommet. However you spell it. I painted the holes then fed the wires through, one by one or bundle by bundle. The trim is some 1/8" vacuum line split down the middle and epoxied on. It would have been cleaner and probably easier if I put the vacuum line trim down first then fed the wires through, but it will be hidden behind the panel anyways. The loom holds my LED switchboard I made. The white/red wire is the stock power that runs into the ignition switch and whatnot. The ignition switch will be getting the relay mod pretty soon. Helpful hint, you can find a bunch of 70A relays for the ignition from ford taurus/thunderbird/crown vic on the passenger strut tower wall.
I have been tossing around the idea of fabbing up some frog arms like the miata's have while the fender is off...
Took the fender off and there were 3 or 4 holes that got progressively smaller, I chose the 2nd one for the placement, since it was at a right angle to the stock firewall hole. The outer hole is I believe a 2.5", the inside hole is somewhere in the neighborhood of 3". I used the same hole saw for both holes, then used a dremel for about 3 hours (literally) and vacuum to dremel that hole big enough to reuse the stock harness grommit. Gromit. Grommet. However you spell it. I painted the holes then fed the wires through, one by one or bundle by bundle. The trim is some 1/8" vacuum line split down the middle and epoxied on. It would have been cleaner and probably easier if I put the vacuum line trim down first then fed the wires through, but it will be hidden behind the panel anyways. The loom holds my LED switchboard I made. The white/red wire is the stock power that runs into the ignition switch and whatnot. The ignition switch will be getting the relay mod pretty soon. Helpful hint, you can find a bunch of 70A relays for the ignition from ford taurus/thunderbird/crown vic on the passenger strut tower wall.
I have been tossing around the idea of fabbing up some frog arms like the miata's have while the fender is off...
#33
Rotary Enthusiast
iTrader: (17)

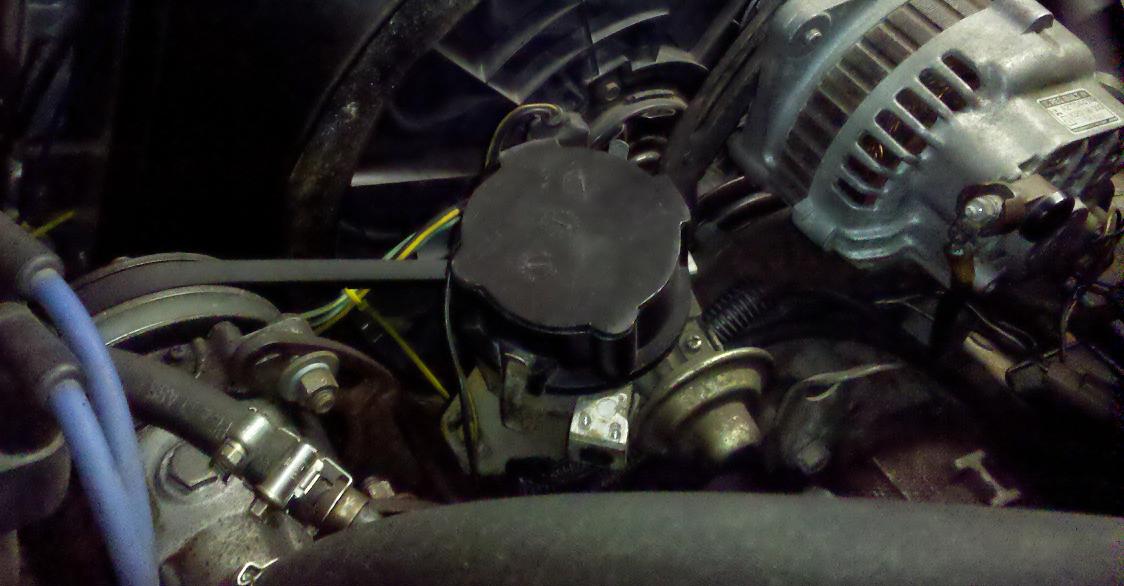

I cut a stock cap down on a table saw with a plastic cutting blade, and cut the top from a piece of plastic my neighbor had ( I was short on plastic ).
I wanted to form a cap with an M in the middle, but as I mentioned, I was short on plastic.
Jeezus I'm sorry for being drunk and lazy, did you exit the wires to the fender well from the cabin, or after the firewall ?
#34
Jolly Green Giant
iTrader: (1)
Join Date: Feb 2008
Location: San Antonio, TX
Posts: 509
Likes: 0
Received 0 Likes
on
0 Posts
Ya, 2GDFLIS, wasted spark, I think
I cut a stock cap down on a table saw with a plastic cutting blade, and cut the top from a piece of plastic my neighbor had ( I was short on plastic ).
I wanted to form a cap with an M in the middle, but as I mentioned, I was short on plastic.
Jeezus I'm sorry for being drunk and lazy, did you exit the wires to the fender well from the cabin, or after the firewall ?
I cut a stock cap down on a table saw with a plastic cutting blade, and cut the top from a piece of plastic my neighbor had ( I was short on plastic ).
I wanted to form a cap with an M in the middle, but as I mentioned, I was short on plastic.
Jeezus I'm sorry for being drunk and lazy, did you exit the wires to the fender well from the cabin, or after the firewall ?
This is where I am currently, intake, water pump and exhaust are all back on for the most part, still have to fix my windshield wiper bushings and such.
As for the wiring, it's going to be as simple as simple can be, wrapped and tucked neatly against the body hopefully won't be too noticable, but I also plan on extending and running the alternator and dizzy wiring across the top of the motor back to the firewall and have it run back there instead of hopping across a giant void just to meet up with the rest of the harness....a little extra wire but alot cleaner look. Also still need to wash the damn thing lol took the wire wheel to the RB intake and some 'awesome' cleaner to the housings which cleaned up nicely but gotta scrub em a little harder and take off that view port plate for the flywheel and clean that up.
#35
Stu-Tron Get Yo Groove On
iTrader: (4)
Ya, 2GDFLIS, wasted spark, I think
I cut a stock cap down on a table saw with a plastic cutting blade, and cut the top from a piece of plastic my neighbor had ( I was short on plastic ).
I wanted to form a cap with an M in the middle, but as I mentioned, I was short on plastic.
Jeezus I'm sorry for being drunk and lazy, did you exit the wires to the fender well from the cabin, or after the firewall ?
I cut a stock cap down on a table saw with a plastic cutting blade, and cut the top from a piece of plastic my neighbor had ( I was short on plastic ).
I wanted to form a cap with an M in the middle, but as I mentioned, I was short on plastic.
Jeezus I'm sorry for being drunk and lazy, did you exit the wires to the fender well from the cabin, or after the firewall ?
Drew you a picture instead, hope that helps.
