Setting timing for turbo w/dizzy
08-16-13, 10:01 AM
#26
what i found worked best using a dizzy on a boostd applacation is to set the timming at 0* at idle with the vac unhooked, than connect the vac line to MANIFOLD vac.
iirc vac advance is 10* and mech advance is10*
this will give you 10* at idle/low rpm 20* under cruse and the boost pressure retards it to 10* when your under boost. i found this to work very well for power and fuel econemy, way better than the locked dizzy a lot of people use.
iirc vac advance is 10* and mech advance is10*
this will give you 10* at idle/low rpm 20* under cruse and the boost pressure retards it to 10* when your under boost. i found this to work very well for power and fuel econemy, way better than the locked dizzy a lot of people use.

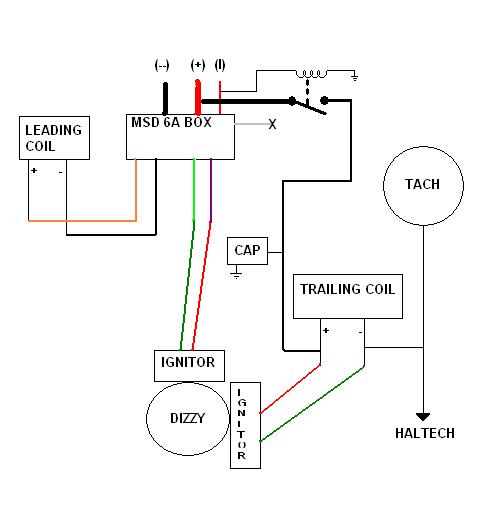

This is how I have it wired currently using the FC leading coil as wasted spark driven by a MSD 6A and a gutted ignitor and trailing going through the distributor.
08-16-13, 12:50 PM
#27
Full Member
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
I've been running this way since the install last November and haven't had an issue. If you mash the throttle under 3-5K it bogs a bit but I try not to drive like that anyway.
This is how I have it wired currently using the FC leading coil as wasted spark driven by a MSD 6A and a gutted ignitor and trailing going through the distributor.
This is how I have it wired currently using the FC leading coil as wasted spark driven by a MSD 6A and a gutted ignitor and trailing going through the distributor.
awesome graph!
08-16-13, 04:50 PM
#28
Full Member
Join Date: Apr 2012
Location: aurora
Posts: 167
Likes: 0
Received 0 Likes
on
0 Posts
your diagram kinda gives me a visual, but are there any walk throughs on how to wire in a msd 6al kit? i bought a full kit from a member but i dont know how to wire this puppy in, im use to coil-pack.
