SE vaccum line - Help Identify Please

Thread Tools

Search this Thread

Old 11-02-11, 10:39 PM
  #1
Senior Member

Thread Starter
iTrader: (2)

G-man's Avatar

Join Date: Nov 2005
Location: Richmond Hill, ON
Posts: 399
Likes: 0
Received 0 Likes on 0 Posts
SE vaccum line - Help Identify Please

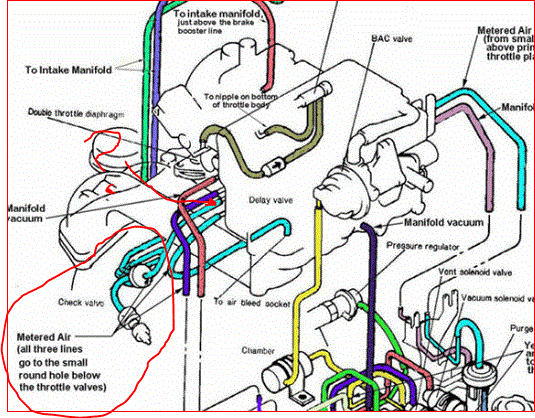

I'm hoping someone can tell me the correct name and purpose of the vaccum lines identified in red on the attached picture. I've searched the FSM emissions section but couldn't find any related pictures. Any help would be appreciated. Thanks in advance.
Attached Thumbnails SE vaccum line - Help Identify Please-vaccum.gif
G-man is offline
Reply Like
Old 11-03-11, 09:20 AM
  #2
Rotary Freak

iTrader: (19)

RX-7 Chris's Avatar

Join Date: Oct 2007
Location: Colorado Springs, CO
Posts: 2,014
Likes: 0
Received 0 Likes on 0 Posts
those are the vacuum lines that go to the oil injectors.

you can see them just below the fuel injectors
RX-7 Chris is offline
Reply Like
Old 11-03-11, 11:50 AM
  #3
Senior Member

Thread Starter
iTrader: (2)

G-man's Avatar

Join Date: Nov 2005
Location: Richmond Hill, ON
Posts: 399
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by RX-7 Chris
those are the vacuum lines that go to the oil injectors.
you can see them just below the fuel injectors
The picture is very helpful. I'll be running premix so I guess I can cap them off. Thanks!
G-man is offline
Reply Like
Old 11-04-11, 10:40 AM
  #4
Rotary Freak

iTrader: (19)

RX-7 Chris's Avatar

Join Date: Oct 2007
Location: Colorado Springs, CO
Posts: 2,014
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by G-man
The picture is very helpful. I'll be running premix so I guess I can cap them off. Thanks!
if you are going premix than don't worry about it. hold onto the vacuum hose spider because they are hard to find.
RX-7 Chris is offline
Reply Like
