S5 T2 Weber blow through project
#1
S5 T2 Weber blow through project
Taking on something new (to me). It's an S5 turbo on a 4 port R5 13B that's been ported kinda big. The intake is a Weber 45 DCOE on a Racing Beat manifold.

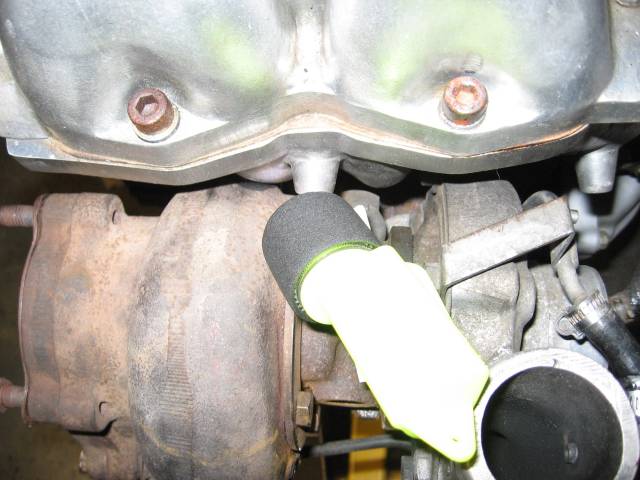

Test fitting and clearancing.

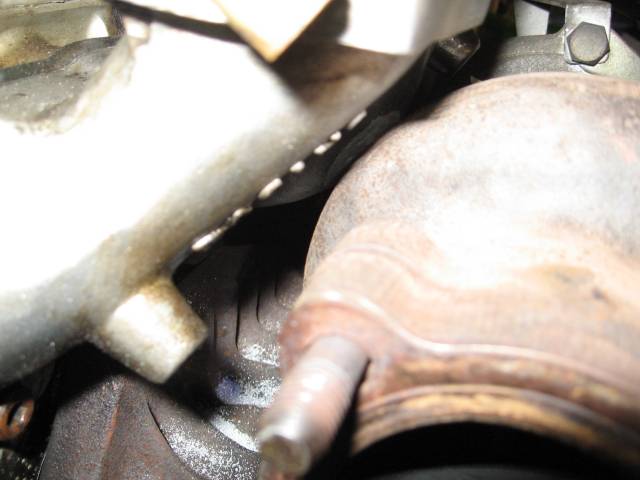

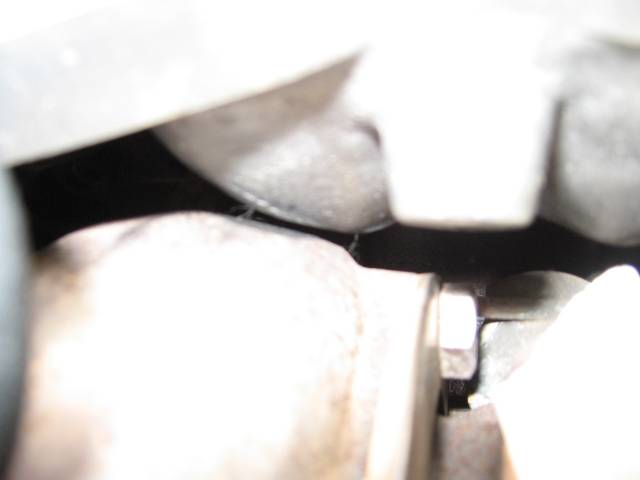

It used to make contact here. Now I've got an air gap. Will it be enough?
Side view.
Test fitting and clearancing.
It used to make contact here. Now I've got an air gap. Will it be enough?
Side view.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,805
Received 2,577 Likes
on
1,831 Posts
stock the t2 has a little heat sheild between the turbo and the intake manifold, that air gap is ok, but the more you can isolate the turbo from the intake the better.
heat = bad
heat = bad
#6
Super Cres at best
Join Date: Oct 2002
Location: here, where ever that is.
Posts: 203
Likes: 0
Received 0 Likes
on
0 Posts
if you get that working let me know, will save me a grip when I finish getting my TII put back together and shoved into my 7. Are you sure the 12a heat shield is going to fit into there though? looks a little cramped
Trending Topics
#9
Ah, wacky, that does kinda help. Is that where the water comes from? I'll just have to use the upper nipple on the S4 T2 waterpump. The water will exit the turbo and enter the lower nipple on the waterpump intake pipe (lower rad hose) where there's suction. PercentSevenC was saying these turbos don't necessarily need water cooling, but I feel at least hooking it up this way will allow the coolant to circulate whether it actually takes any heat out of the turbo or not.
Since this turbo I'm using is an S5, I've heard that it can hit the idler arm. Chris (sold his car to notveryhappyjack) mentioned something about the idler arm, like moving it down a little, but I can't recall the details.
The 1/8" spacers I'm forced to use to move the turbo away from the intake manifold may further complicate things with the idler arm. Any thoughts? The turbo will be relocated a total of 1/4" further from the engine.
Since this turbo I'm using is an S5, I've heard that it can hit the idler arm. Chris (sold his car to notveryhappyjack) mentioned something about the idler arm, like moving it down a little, but I can't recall the details.
The 1/8" spacers I'm forced to use to move the turbo away from the intake manifold may further complicate things with the idler arm. Any thoughts? The turbo will be relocated a total of 1/4" further from the engine.
#14
I'm hoping to get an S5 manifold heat shield at least. Then either wrap the turbo or do something.
I have no clue whether 45DCOE will be big enough. This project is for someone else. He's handling all the details like that. Turbos were foreign to me. I'm just learning as I go.
Does anyone have a stock S5 T2 downpipe they want to get rid of?

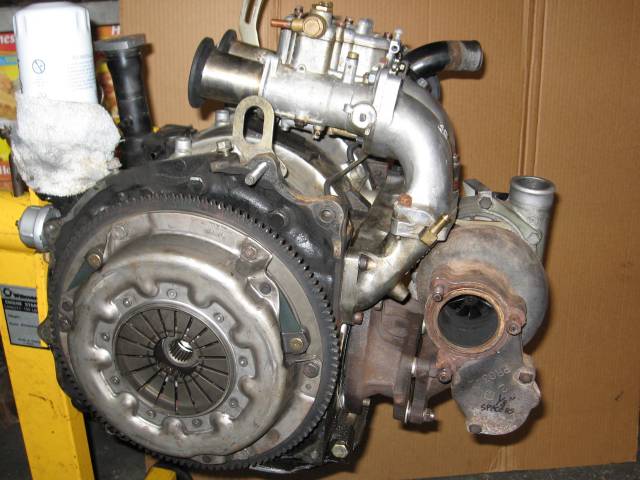

Here is a better shot of the setup.

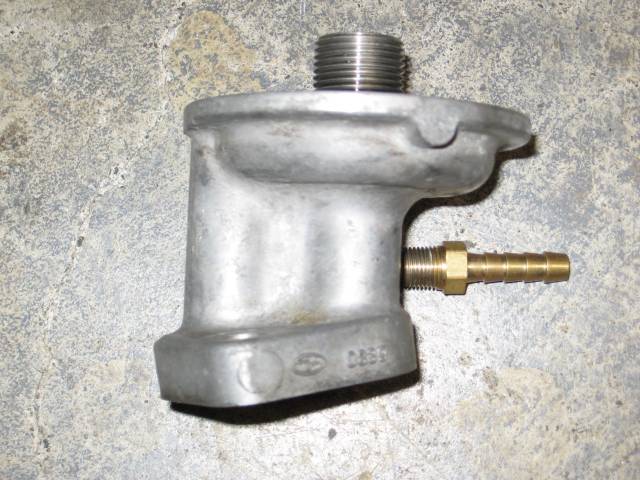

I'll use this filter pedestal with this barbed fitting to feed oil from the filtererd side to the turbo.

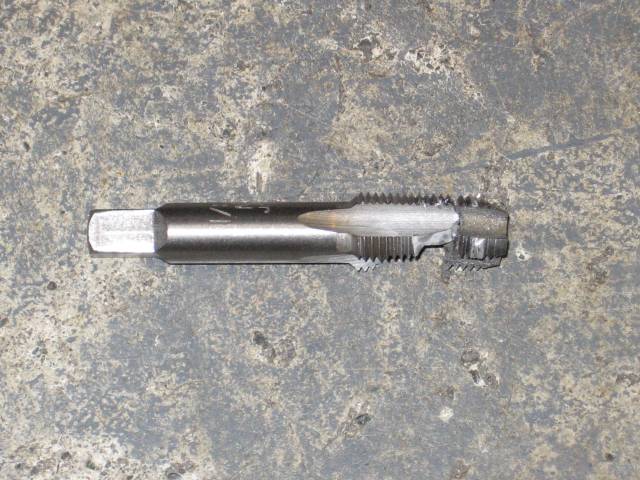

It may have to wait though. As I was cutting threads to add some OMP injection fittings to the manifold, the tap broke. I was fortunately able to flip the manifold upside down and hammer it out, ripping out all the threads in the process. What you see is the end result. I'm sure the other pieces went flying off in all directions when it shattered.
Man I got lucky. I'm glad it worked out in the end.
I have no clue whether 45DCOE will be big enough. This project is for someone else. He's handling all the details like that. Turbos were foreign to me. I'm just learning as I go.
Does anyone have a stock S5 T2 downpipe they want to get rid of?
Here is a better shot of the setup.
I'll use this filter pedestal with this barbed fitting to feed oil from the filtererd side to the turbo.
It may have to wait though. As I was cutting threads to add some OMP injection fittings to the manifold, the tap broke. I was fortunately able to flip the manifold upside down and hammer it out, ripping out all the threads in the process. What you see is the end result. I'm sure the other pieces went flying off in all directions when it shattered.
Man I got lucky. I'm glad it worked out in the end.
#15

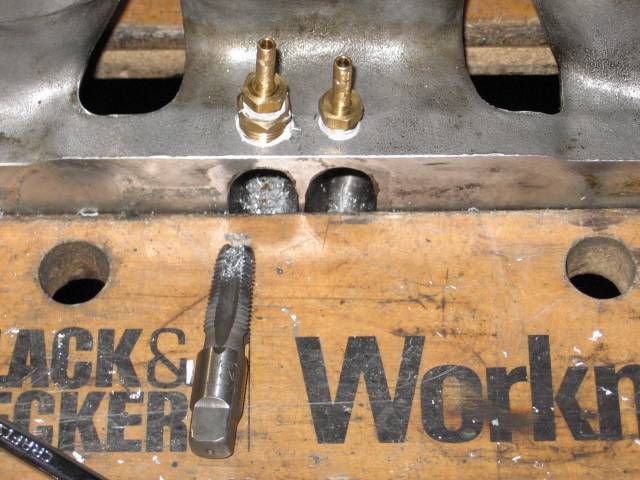

As you can see above, I was fortunately able to move up to the next NPT size and use an adaptor fitting. Do you think I will need to add a restrictor to each line? Will normal engine vacuum pull lots of oil in? Will boost push it back in to the OMP?
#18
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,805
Received 2,577 Likes
on
1,831 Posts
also they found on the fd's (for the 99 updates) that at full boost, it would suck the tube dry, and then it went a few rotations with no oil. theres an sae paper, but the fix was to make the nozzles in the rotor housings a little smaller, and theres a little more space for oil to collect
#19
I installed a set of FD vacuum referenced ones on the RX-4 when it got a set of GSL-SE rotor housings. It would smoke from time to time, with and without the supercharger.
My friend's supercharged rotary 510, the engine has been used in several 1st gens previously, hardly ever smokes. It has the small hole vacuum referenced type, but the vacuum nipples are simply capped. Seems to work well.
Hmm, maybe I should be on the lookout for a set of restrictors which can usually be found inside one of the tubes of a 1st gen rat's nest. Or perhaps I could make a set out of brass with a tiny hole drilled through. I think the smallest drill bit I have handy is 1.17mm. The hole in 3rd gen and 20B injectors is a bit larger. I'll have to compare sizes and pick something that will work.
My friend's supercharged rotary 510, the engine has been used in several 1st gens previously, hardly ever smokes. It has the small hole vacuum referenced type, but the vacuum nipples are simply capped. Seems to work well.
Hmm, maybe I should be on the lookout for a set of restrictors which can usually be found inside one of the tubes of a 1st gen rat's nest. Or perhaps I could make a set out of brass with a tiny hole drilled through. I think the smallest drill bit I have handy is 1.17mm. The hole in 3rd gen and 20B injectors is a bit larger. I'll have to compare sizes and pick something that will work.
#20
The Shadetree Project
iTrader: (40)
I'm hurt you haven't asked me for help considering I've been there and done that! A S5 turbo should not hit the idler arm, mine didn't. It's close, but it should not be a fitment issue. Don`t use the MOP, just premix, and yes you need vacuume/boost reference injectors if you want them to work. the 45DCOE should be good for at least 250whp at 10psi intercooled.
#21
Boosted Fb
iTrader: (1)
Join Date: Nov 2003
Location: Lost!
Posts: 1,471
Likes: 0
Received 0 Likes
on
0 Posts
+1 Hyper

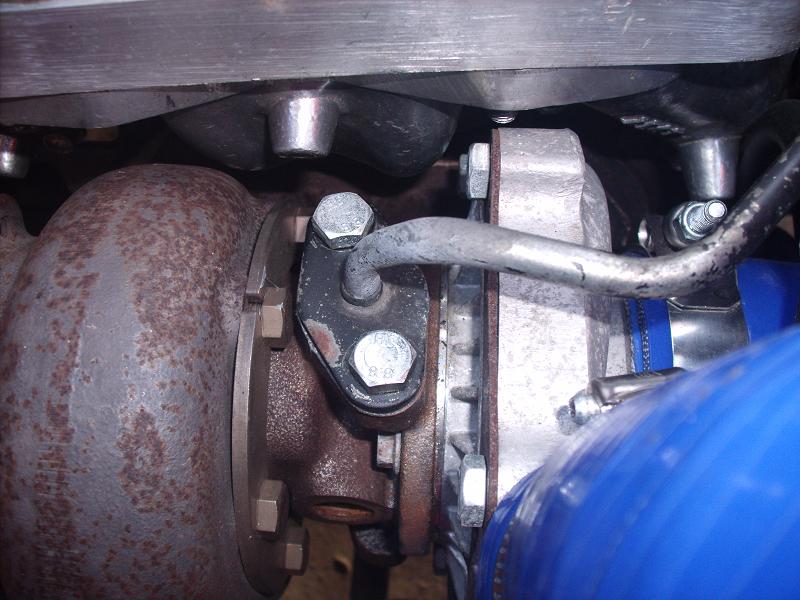

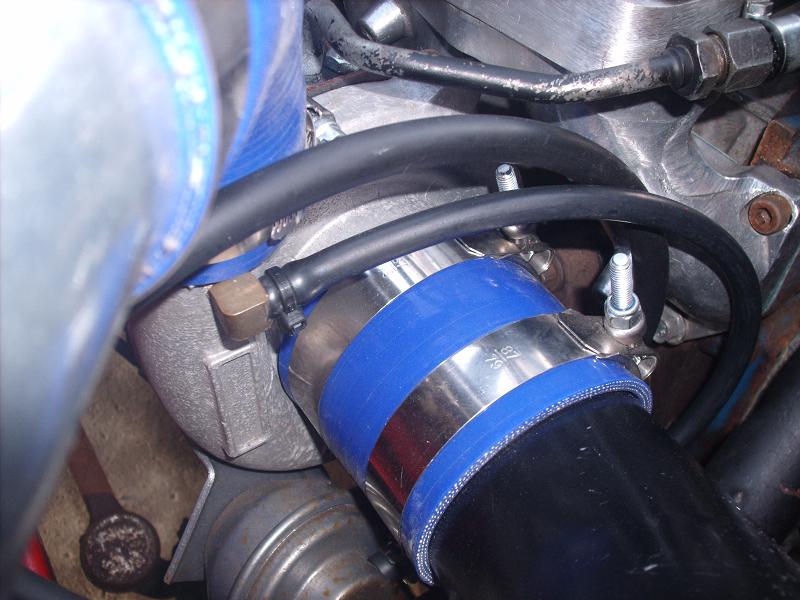

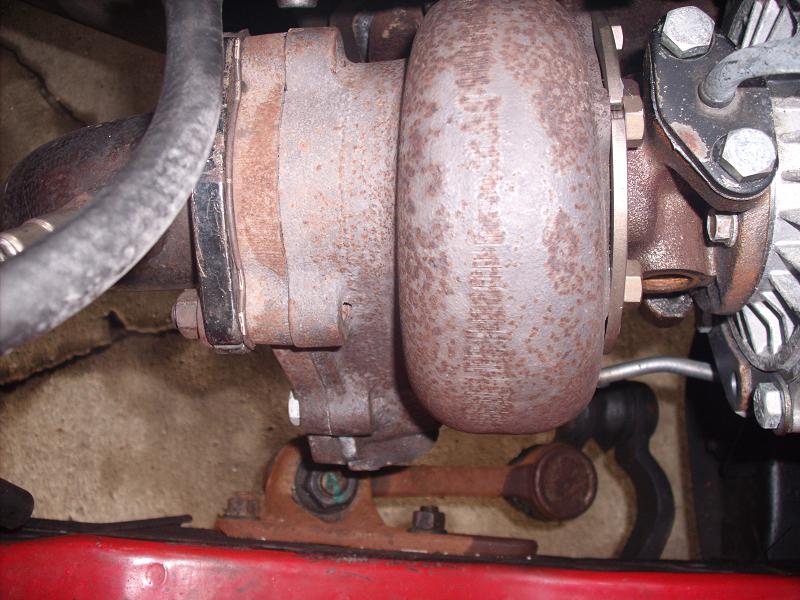

Jeff, here is how mine is set up. I used a header flange to space my turbo. As you can see it clears a BNR stage 3 with no problems(just have to get a turbo beanie). I would also suggest replacing the idler arm with a Moog because it sits lower. Hope this helps!
Thanks, Ed
Jeff, here is how mine is set up. I used a header flange to space my turbo. As you can see it clears a BNR stage 3 with no problems(just have to get a turbo beanie). I would also suggest replacing the idler arm with a Moog because it sits lower. Hope this helps!
Thanks, Ed
#22
This project is actually for PercentSevenC. I'm sure he's asked you about this several times, so don't feel hurt.
Does he really have to use boost referenced type oil injectors? My friend's supercharged engine has them capped off and it works fine. I guess it wouldn't hurt to try. His OMP works perfectly so I'd like to keep it hooked up.
The amount of boost he'll run in the beginning will be very low. Like 5PSI or something.
13BTOY, which exhaust studs did you use? I see you didn't use water cooling.
Does he really have to use boost referenced type oil injectors? My friend's supercharged engine has them capped off and it works fine. I guess it wouldn't hurt to try. His OMP works perfectly so I'd like to keep it hooked up.
The amount of boost he'll run in the beginning will be very low. Like 5PSI or something.
13BTOY, which exhaust studs did you use? I see you didn't use water cooling.
#24
I need a new user title
Join Date: Oct 2005
Location: Yaizu, Japan
Posts: 2,646
Likes: 0
Received 0 Likes
on
0 Posts
Heh, I guess it's obvious I don't check this forum often enough anymore when I missed a thread about my own car.
The 45 DCOE is on the engine and running now. Needs tuning (it's got the stumble at the transition to the main circuit) and a better throttle return spring solution, but we were getting rained on pretty bad, so I'll see what I can do about it later. It's drivable, at least.
Adrian, you can be sure I'll be asking for your help getting this thing tuned. Also, I seem to remember that you used a stock TII intercooler as a front-mount? I had been planning on running low-boost non-intercooled, but if I can find a really cheap intercooler (we're talking like $30) it might be a good idea to use it.
That's the other thing about this project. I have basically no money. This will be the most ghetto turbo installation you will ever see (I hope).
The turbo barely cleared the idler arm when we test fitted it in Jeff's car today. It was actually rather tricky getting it in. There was only maybe a quarter inch or so of clearance. Rx Seven: we considered doing it that way, but the idler arm is so close that we'd have to have the turbo moved well forward to clear it. I've got another idea I'd like to play with, Jeff, maybe I can come over again tomorrow and try it.
brandon davis: I've heard some conflicting information about Weber sizing. I think it will be big enough for now. A 48 would probably be preferable, but this is what I had access to, so it's what I'll use. slate84: a 48 DHLA would be great, and it's what I'd use if I had my choice and didn't want to go EFI.
Water cooling isn't strictly necessary, but it's easy enough to hook it up that we might as well.
The 45 DCOE is on the engine and running now. Needs tuning (it's got the stumble at the transition to the main circuit) and a better throttle return spring solution, but we were getting rained on pretty bad, so I'll see what I can do about it later. It's drivable, at least.
Adrian, you can be sure I'll be asking for your help getting this thing tuned. Also, I seem to remember that you used a stock TII intercooler as a front-mount? I had been planning on running low-boost non-intercooled, but if I can find a really cheap intercooler (we're talking like $30) it might be a good idea to use it.
That's the other thing about this project. I have basically no money. This will be the most ghetto turbo installation you will ever see (I hope).
The turbo barely cleared the idler arm when we test fitted it in Jeff's car today. It was actually rather tricky getting it in. There was only maybe a quarter inch or so of clearance. Rx Seven: we considered doing it that way, but the idler arm is so close that we'd have to have the turbo moved well forward to clear it. I've got another idea I'd like to play with, Jeff, maybe I can come over again tomorrow and try it.
brandon davis: I've heard some conflicting information about Weber sizing. I think it will be big enough for now. A 48 would probably be preferable, but this is what I had access to, so it's what I'll use. slate84: a 48 DHLA would be great, and it's what I'd use if I had my choice and didn't want to go EFI.
Water cooling isn't strictly necessary, but it's easy enough to hook it up that we might as well.
