Removing the tail lights

Thread Tools

Search this Thread

Old Feb 3, 2008 | 02:37 PM
  #1
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Removing the tail lights

Ok, so I am trying to remove the tail lights. Got 8 10mm bolts out, and undid the clip and the bulbs. I am pretty sure that is it, since all the threads I searched say that is. Problem here, I still cannot get them out. They are hard to push out (I am assuming you push them from inside the car and they basically pop out?) and will not even budge, like I forgot some other bolts or something. Anyone know how to take these things off without breaking them?
Reply
Old Feb 3, 2008 | 02:52 PM
  #2
Cascadia's Avatar
Seattleite-moss optional
Tenured Member 05 Years

Joined: Apr 2006
Posts: 209
Likes: 1
From: Seattle
Have you removed the rubber gasket around the outside of the lens?
Reply
Old Feb 3, 2008 | 03:14 PM
  #3
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Originally Posted by Cascadia
Have you removed the rubber gasket around the outside of the lens?
No., and that is probably why. I am trying to take the lights off the car. How do I go about removing it?
Reply
Old Feb 3, 2008 | 03:17 PM
  #4
Re-Speed.com's Avatar
Banned. I got OWNED!!!
iTrader: (3)

Joined: Nov 2001
Posts: 2,483
Likes: 1
From: London, Ontario
With FB's you need to remove the center panel then the lights, IIRC

-billy
Reply
Old Feb 3, 2008 | 03:20 PM
  #5
Cascadia's Avatar
Seattleite-moss optional
Tenured Member 05 Years

Joined: Apr 2006
Posts: 209
Likes: 1
From: Seattle
As I recall, I just got hold of it and pulled it out. I think there is some kind of sealant on it, but it pulled out fairly easy.
Reply
Old Feb 3, 2008 | 03:22 PM
  #6
Cascadia's Avatar
Seattleite-moss optional
Tenured Member 05 Years

Joined: Apr 2006
Posts: 209
Likes: 1
From: Seattle
Originally Posted by bwaits
With FB's you need to remove the center panel then the lights, IIRC

-billy
Ooops! . . . forgot about that. Yes, that is a must!
Reply
Old Feb 3, 2008 | 04:48 PM
  #7
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Ok, removed the middle section, and still nothing. It is like they glued it to the rear of the car. 8 10mm nuts per side removed, plus the 2 nuts for the center. Center is out, bulbs are out, the big main plug behind the tails is unplugged. Pics in a minute.
Reply
Old Feb 3, 2008 | 04:52 PM
  #8
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Pics:




Reply
Old Feb 3, 2008 | 05:27 PM
  #9
Re-Speed.com's Avatar
Banned. I got OWNED!!!
iTrader: (3)

Joined: Nov 2001
Posts: 2,483
Likes: 1
From: London, Ontario
Push harder.


-billy
Reply
Old Feb 3, 2008 | 05:39 PM
  #10
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
try a rubber mallet from the back
Reply
Old Feb 3, 2008 | 06:51 PM
  #11
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Bingo. I just used a hammer on the metal screws and kept tapping it until it came off. Now the rubber around the outside, how can I put it back on? Can I use standard glue or is it some strange compound?
Reply
Old Feb 3, 2008 | 07:08 PM
  #12
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL






I do not have a heat gun.... I didn't use a hair dryer.... HOW DID I GET THEM APART YOU ASK??



I put some tin foil on the rack, tail lights on top, then set the oven to 250*F. When the light turned off saying it was ready, about 2-4 minutes later I pulled them out. Started on one corner, and it made this weird sucking noise, but it popped off with no problem!
Reply
Old Feb 3, 2008 | 07:23 PM
  #13
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
I was afraid of the oven, and used a heat gun

pictures in my mega thread

https://www.rx7club.com/showthread.p...ht=mega+thread
Reply
Old Feb 3, 2008 | 08:00 PM
  #14
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Do you have any pictures of your lights with the brake on? I am interested...
Reply
Old Feb 3, 2008 | 08:04 PM
  #15
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
Originally Posted by Jeezus
Do you have any pictures of your lights with the brake on? I am interested...

nop, sorry
Reply
Old Feb 3, 2008 | 08:06 PM
  #16
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Aw

I assume you are running colored bulbs? I should have mine finished and posted within an hour.
Reply
Old Feb 3, 2008 | 08:09 PM
  #17
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
my car is faaaaar from "running" condition.

the tails are in the front seat
Reply
Old Feb 3, 2008 | 09:38 PM
  #18
2fast2rotar's Avatar
Registered Loser
Tenured Member 05 Years

Joined: Nov 2007
Posts: 206
Likes: 0
From: Concord, NC
NC hmmmmm

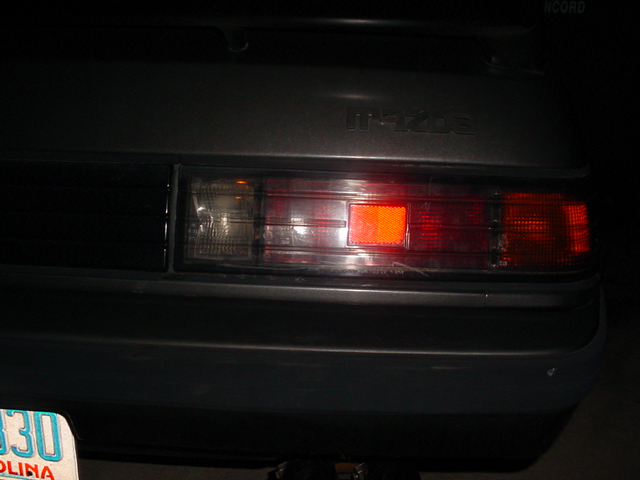

What options would I have with tinting my taillights?? I also seem to have a bit of a problem with my reverse light lense melting in the sun... Any advise from you pro's out there??
Attached Thumbnails Removing the tail lights-tail-light.jpg
Reply
Old Feb 3, 2008 | 09:41 PM
  #19
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
Never seen a melted reverse light... Hmm, I would drill a small hole on the other side of the housing to atleast let some of the built up heat out. But that is just me, and anything redneck enough to work, works for me

Plus its free.
Reply
Old Feb 3, 2008 | 09:42 PM
  #20
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
And for tinting your tail lights, there is a tint out there in a can or something iirc.

What I wanted to do was have like this one way tint, where it looks black on the outside, but when you shine light through it, it looks basically like the tint is not there. Dunno where I saw it at though.
Reply
Old Feb 3, 2008 | 09:45 PM
  #21
2fast2rotar's Avatar
Registered Loser
Tenured Member 05 Years

Joined: Nov 2007
Posts: 206
Likes: 0
From: Concord, NC
Do u think if i get the dye at like walmart and soak just the clear plastic in that it will still shine through??
Reply
Old Feb 3, 2008 | 09:47 PM
  #22
-xlr8planet-'s Avatar
I has an emblem
Tenured Member 15 Years
iTrader: (3)

Joined: May 2003
Posts: 1,786
Likes: 5
From: Argentina
VHT sells a black spray for the tail lights.

Reply
Old Feb 3, 2008 | 09:47 PM
  #23
Jeezus's Avatar
Thread Starter
Stu-Tron Get Yo Groove On
Tenured Member: 15 Years
iTrader: (5)

Joined: Nov 2006
Posts: 8,482
Likes: 31
From: Huntsville AL
I don't know if the dye will soak into the plastic. Try getting some House of Kolor in a can, and lightly spraying it in a sweeping motion.
Reply
Old Feb 3, 2008 | 11:45 PM
  #24
chris_g's Avatar
Always Learning
Tenured Member 15 Years
iTrader: (29)

Joined: Apr 2007
Posts: 684
Likes: 1
From: Western NY
I like the idea of florescent bulb clear plastic light diffuser as a way to spread the light and replace the colored lense. This is what I will be doing in a few weeks, or so I hope.
