Jeezus

iTrader: (4)

Man, I knew it was tough, but not this tough!

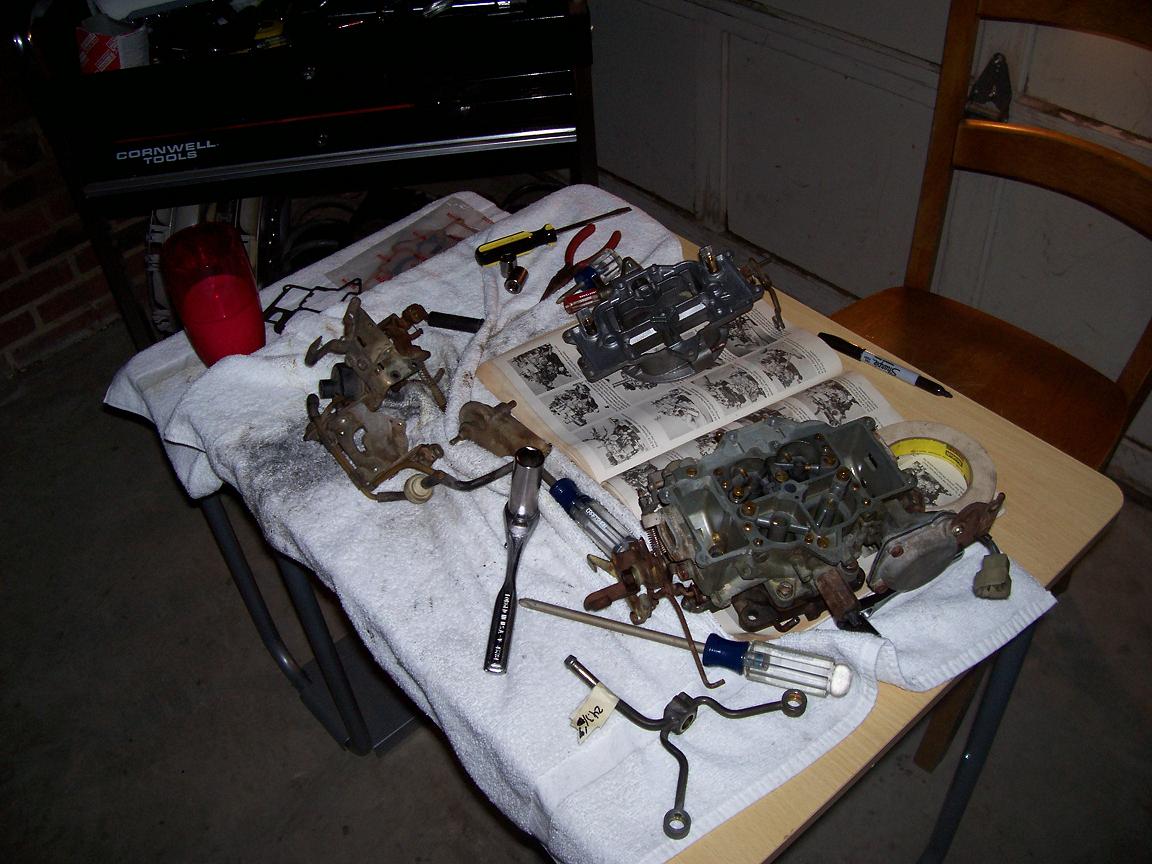

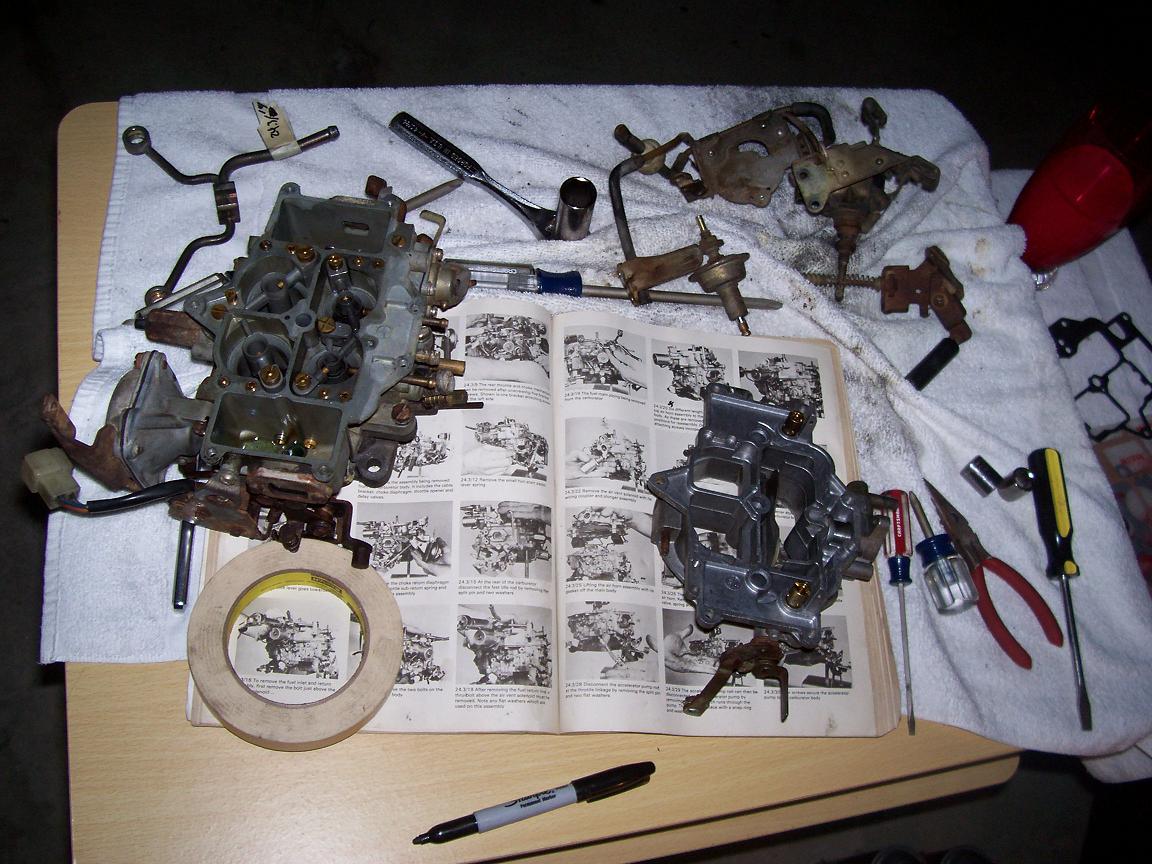

got it off the car ok (the left rear nut holding it to the mani was a PAIN) and in the process of taking it apart. Have my handy dandy haynes manual, and tape/marker so I can write the step number corresponding to the part on it.

Any tips/tricks? I have searched already, so if there is anything I could do performance wise or whatnot, dont hesitate to say

oh, and no, I refuse to do mechanical secondaries, that really messed up my carb... thats why its getting rebuilt. hard to idle, and major major backfires when i kept accelerating in a gear for too long (too long = more than 5 seconds), so bad it blew up my muffler...

trochoid

iTrader: (6)

If it helps, in my sig line is a link to the online factory carb manual. Rebuilding a Nikki can be quite intimidating at first with all the parts. 2 suggestions, 1. take lots of pics, step by step, 2. once the air horn is off, make a digram of the top of the body and note the # imprinted on all of the jets and emulsion tubes.

Jeezus

iTrader: (4)

The only trouble I see myself having, is attaching all the linkages back and getting the hoses where they need to go when it is back on the car.

nick812

Yea the stock nikki is crazy after using the aftermarket carbs.

Jeezus

iTrader: (4)

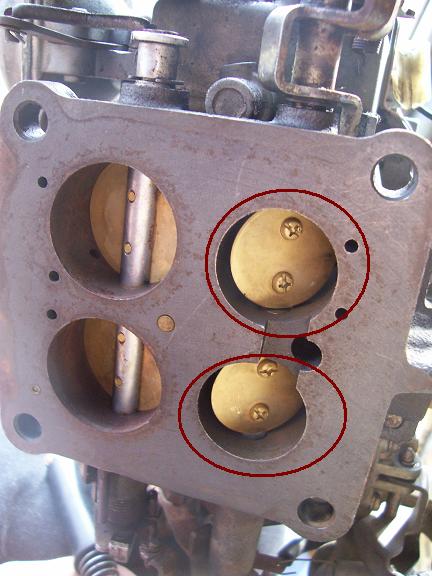

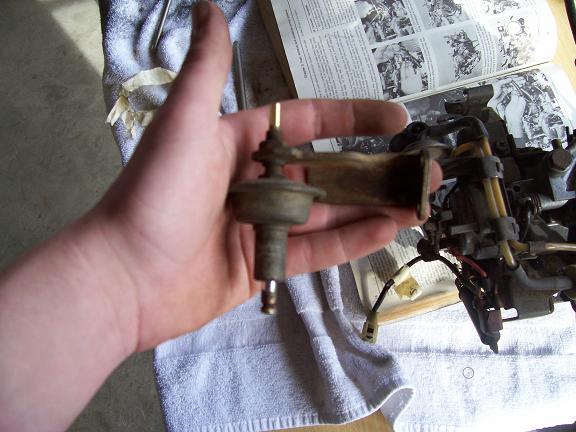

ok, here is where I need you guys help..

what is this and where does it go? please circle where/which side

and one more question on the next post..

Jeezus

iTrader: (4)

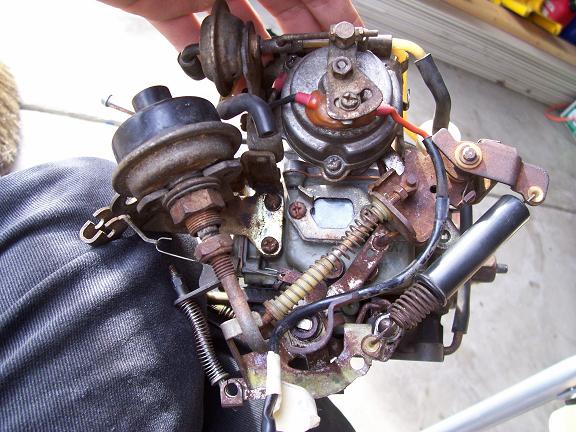

part 2:

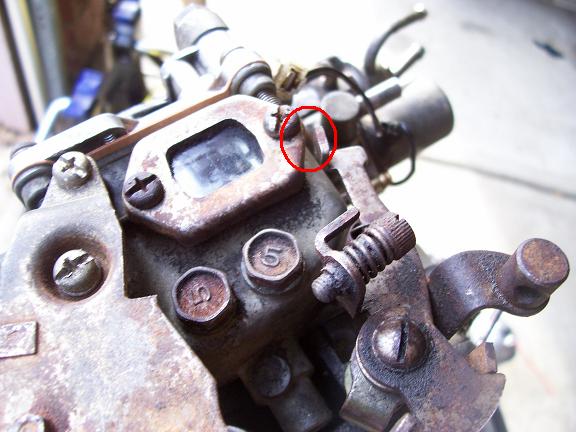

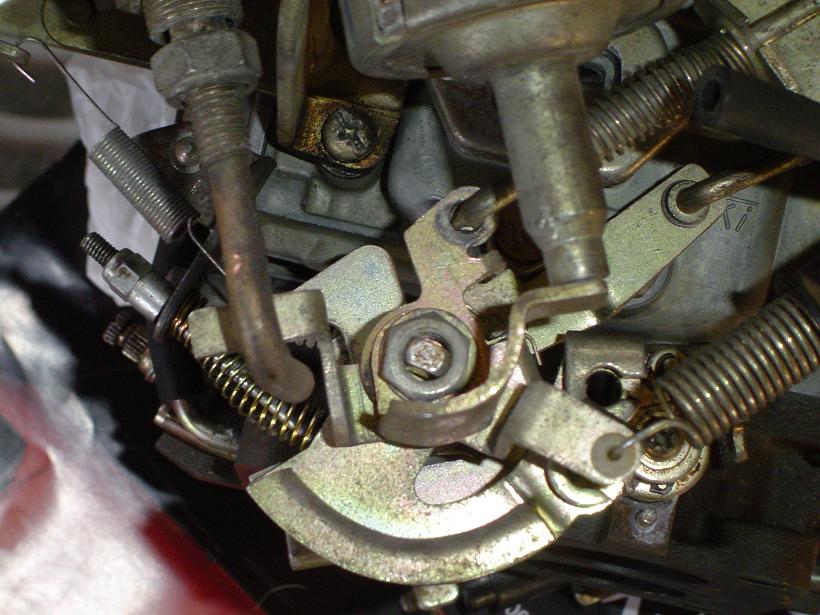

this linkage is hitting the viewing glass, preventing it from opening all the way.. any ideas on how to fix it? I am quite stumped, or I am just overlooking something very obvious...

thanks a ton guys!

Jeezus

iTrader: (4)

how do I make the pictures incorporated in my post, instead of just in the attached files part?

Rx-7Doctor

iTrader: (13)

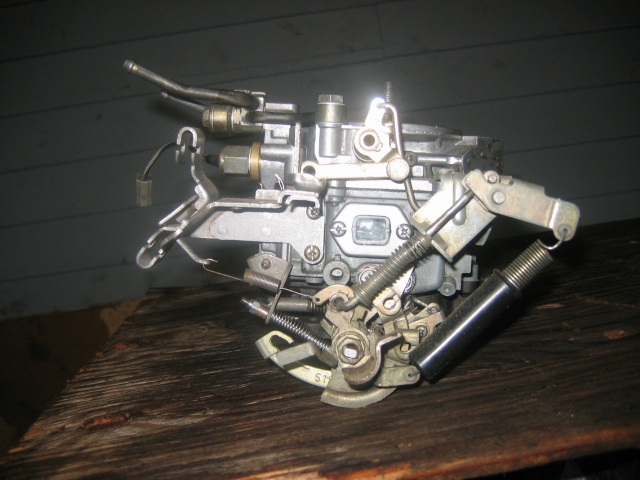

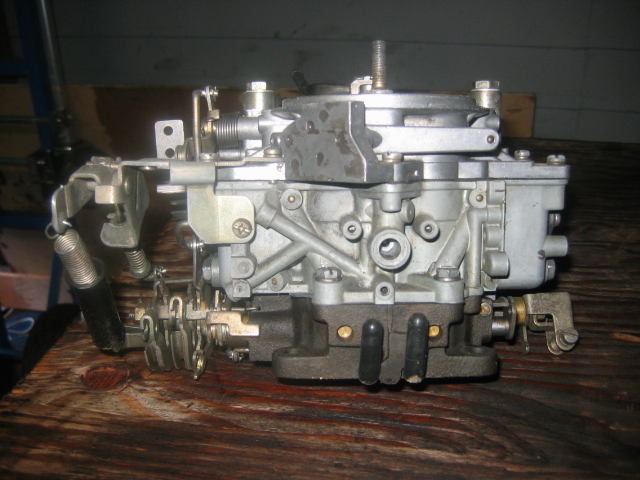

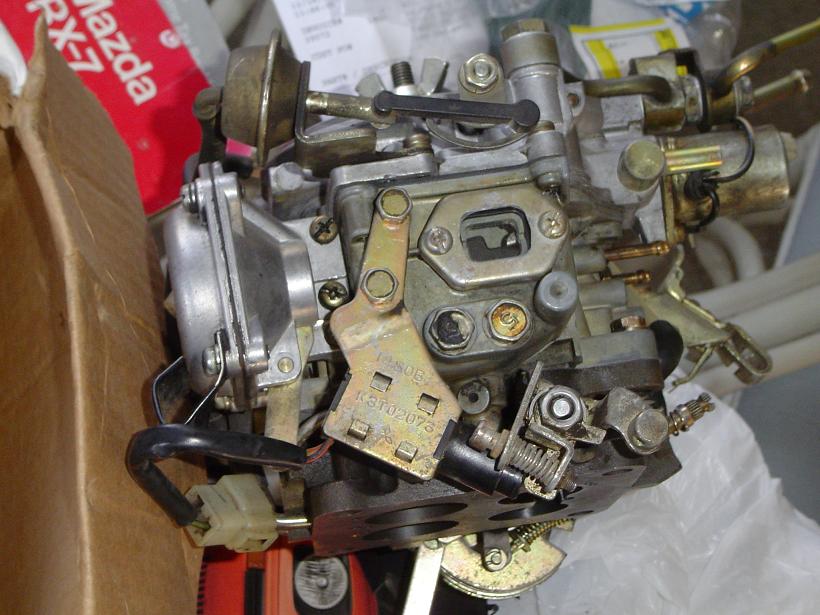

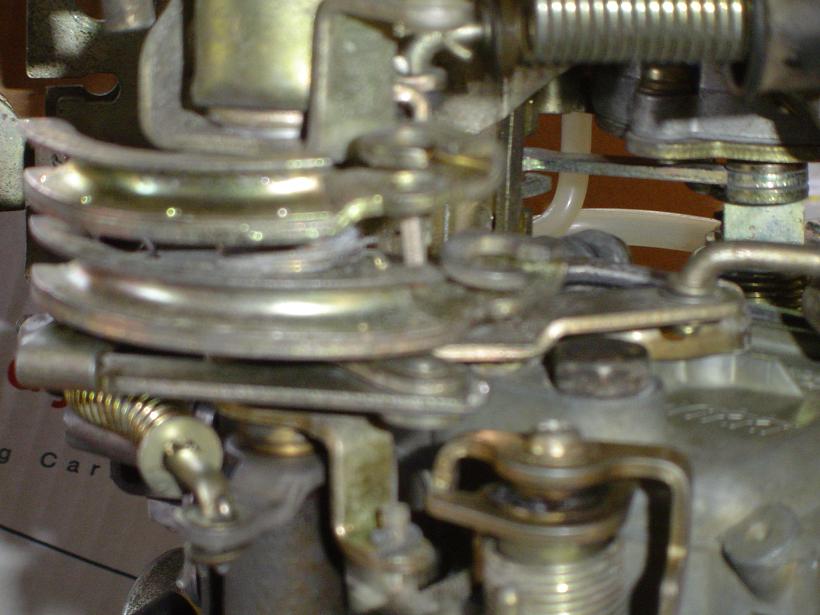

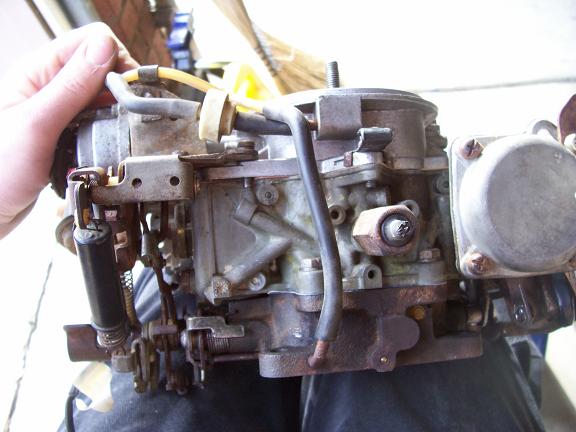

Hope these help. If you need different angles then let me know of what and I will take some more.

Jeezus

iTrader: (4)

the top of the 2nd picture, is that where my missing part goes?

Rx-7Doctor

iTrader: (13)

I only see half of that side of the carb on yours. On the side you mention there should be the TPS and at the top there should be a dashpot but I don't see either of them in your picture.

nick812

Man how come when i try to take pics like that they come out looking like ****? Anyway nice pics very clean I will save them for future reference.

Jeezus

iTrader: (4)

I am missing a lot of things on my carb, some choke related stuff and whatnot. I was following the haynes manual, and some things it said wernt on there. but the car ran fine, minus the huge backfiring.

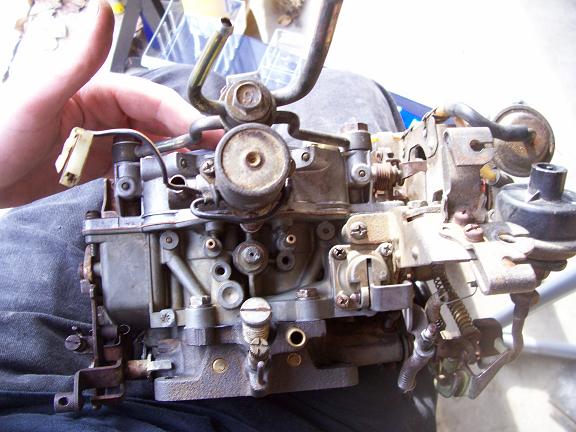

the only side of the carb i did not take a picture of was the top, i have all four sides, and a bottom shot.

Rx-7Doctor

iTrader: (13)

Sorry, I forgot you have a Sa. Where you have indicated there should be nothing. The screw at the bottom in that picture should be straight up and down.

Jeezus

iTrader: (4)

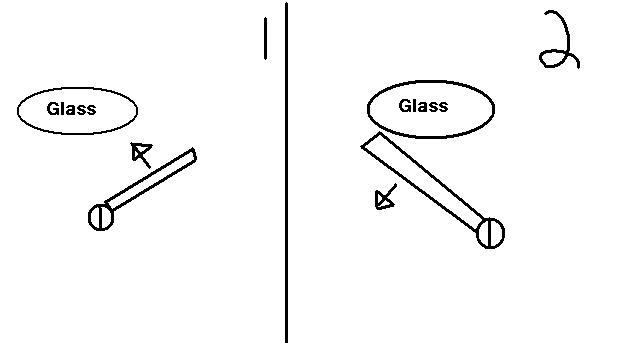

so the 2nd post, the screw that holds the arm hitting the viewglass should be up and down? if I put it up and down, would I be moving hte arm over the glass, or back? lets say it like this: when the throttle opens, should the arm be moving towards the glass or should it be moving away? see picture, one or two

blwfly

iTrader: (4)

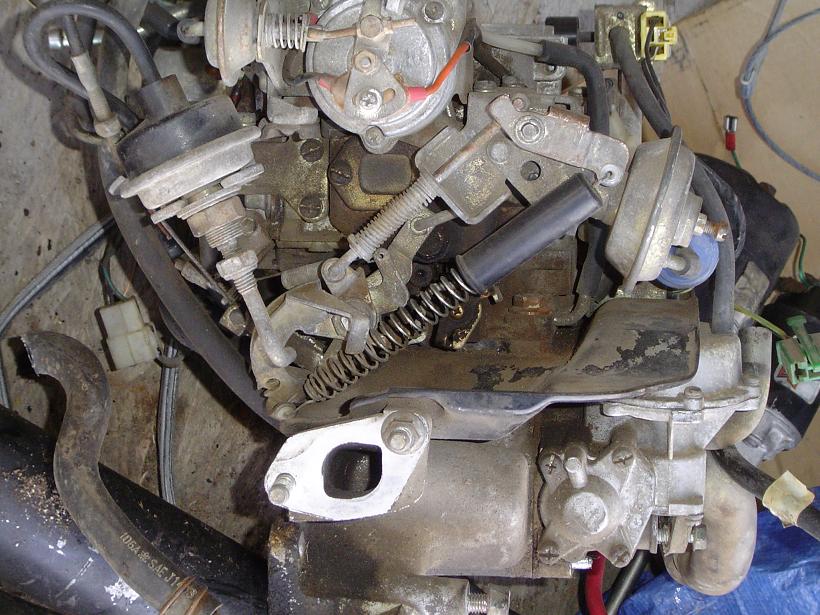

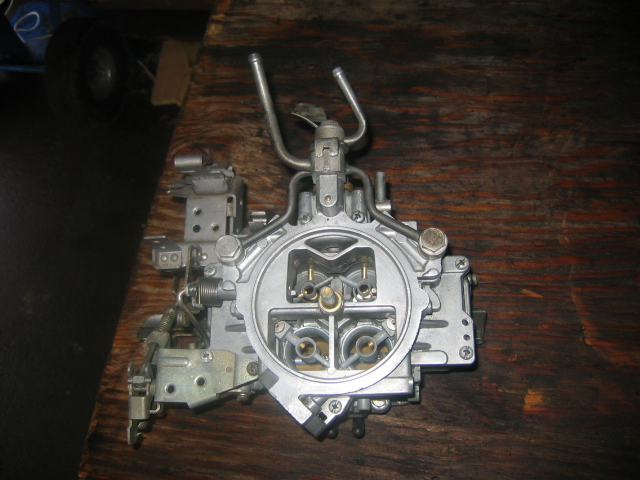

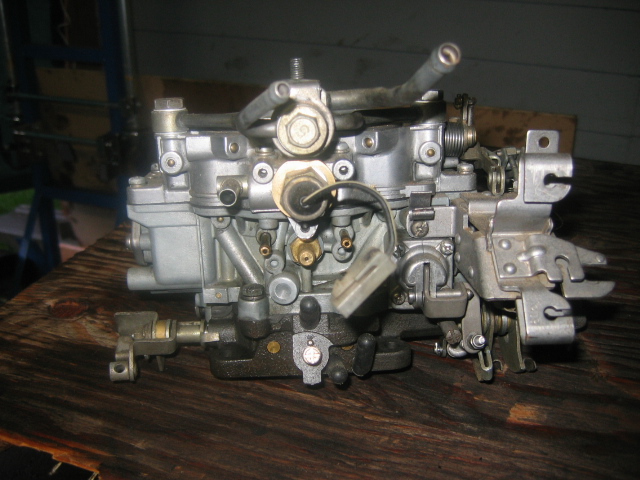

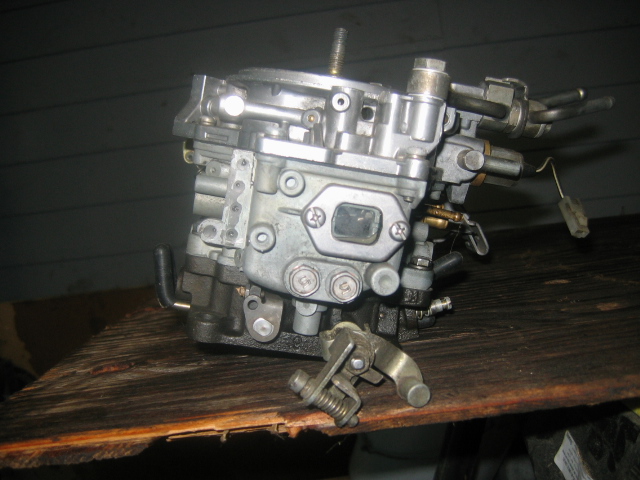

this is waht i rebuilt 4 weeks ago just pics for reference as to what can be takin off and the carb still working mint mech secondarys shouldnt harm idel etc or cause backfires thats to do woth tuning your carb and timming...

.

.

.

.

Jeezus

iTrader: (4)

your carb is freakin mint! i cant even get mine to turn that color, let alone that polish look!

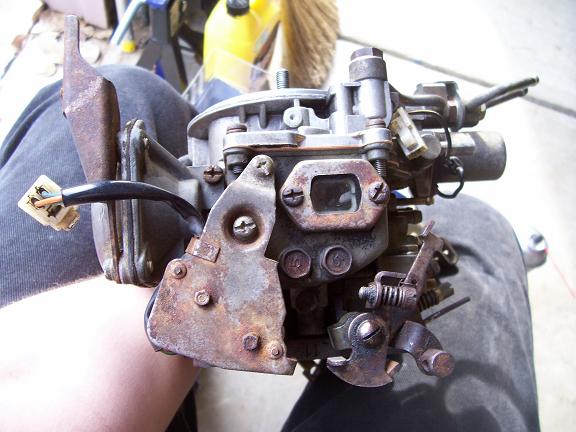

now, what does this look like on your carb, it keeps hitting the viewglass!

blwfly

iTrader: (4)

spend the time cleaning and a wire brush and urs can look like this

what u need to do is download the apropiate carb manual from the fsm"in trochoids" sig
and it should have diagrams on how urs should be reasons myn look diffrent is its a 84 fb carb

Rx-7Doctor

iTrader: (13)

You need to undo that side of the linkage and put it back on correctly. The top portion of the linkage that is hitting the sight glass belongs to the left bottom from where it is now. It is supposed to be against the TPS and the head of the adjusting screw should be pointing upwards towards you.

Jeezus

iTrader: (4)

thats the thing, I never touched that linkage. and now the head is stripped, so I doubt I can pull it off
