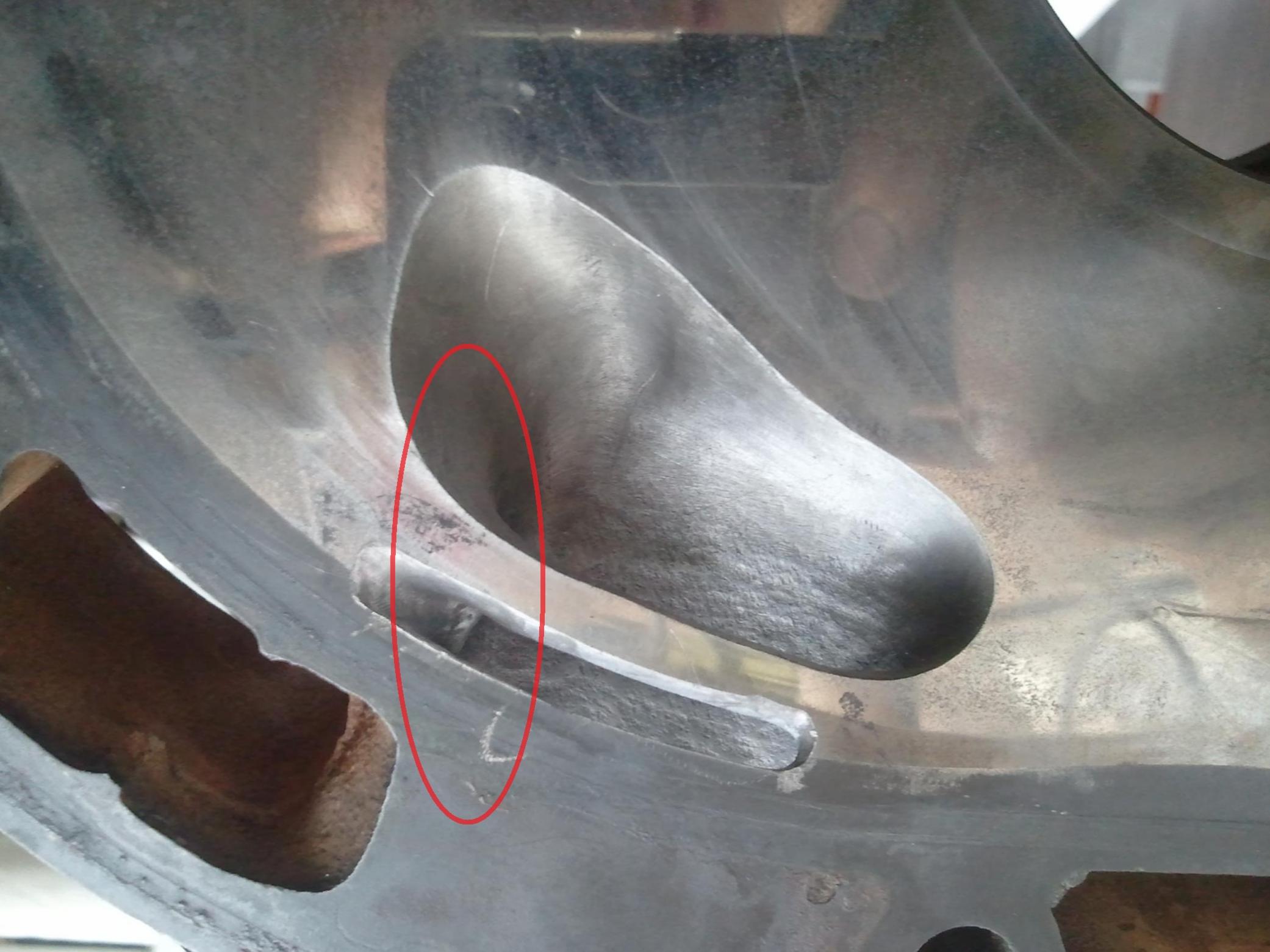

This general area. I picked this port as it looks to be the "worst" in terms of the transition into the closing edge.
Attached Thumbnails Rate my 1st port job-port.jpg
Old 05-31-11, 02:14 PM
  #27
Rotary Enthusiast
Thread Starter
iTrader: (5)

kutukutu1's Avatar

Join Date: Jan 2008
Location: Southfield, MI
Posts: 1,296
Received 60 Likes on 38 Posts
Originally Posted by 81WideMariah
IF you are road racing/autocrossing then ideally you want to keep as much mid range as possible as that's what gets you out of corners faster. Drag racing engines are more concerned with peak HP numbers as that's what increases trap speeds. Also, having usable midrange will help out on those courses where our less than ideal gear ratios show there ugly heads.

So I'd leave the taper. Looking at your ports though it looks like you could stand opening up the ports a bit more near the top/closing edge of the ports. You should have a little more of a bowl shape leading up to the closing edge of the port. I'll grab one of your pics and circle the area in paint in a few mins.
that would be very much appreciated thank you.
Old 05-31-11, 02:16 PM
  #28
Rotary Enthusiast
Thread Starter
iTrader: (5)

kutukutu1's Avatar

Join Date: Jan 2008
Location: Southfield, MI
Posts: 1,296
Received 60 Likes on 38 Posts
k i see what you mean so just make that more into a bowl shape, i didnt go so far in i was afraid to go in to deep and screw it up. but thanks alot for the help
