Racing Beat Flywheel to Clutch HELP

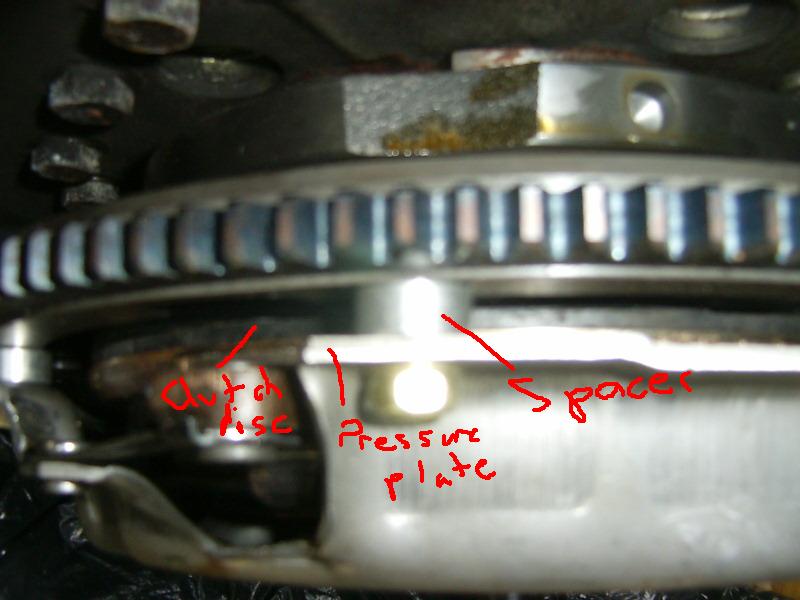

I am trying to install a light steel flywheel with a stock clutch. In the kit they gave me aluminum spacers, I installed them to where I thought they would go, between the pressure plate and the flywheel. When I put the bolts in a tighten them up the clutch disc is loose.
The clutch was supposed to be for an 81' but is now going on an 84'. The flywheel is for an 84' Would the difference in years cause this?
The clutch was supposed to be for an 81' but is now going on an 84'. The flywheel is for an 84' Would the difference in years cause this?
#3
Rotary Enthusiast
iTrader: (4)
Join Date: Jan 2003
Location: Bryan, TX
Posts: 766
Likes: 0
Received 0 Likes
on
0 Posts
You have it correct as far as I can tell. I put a 86 clutch on a rb steel flywheel and it seemed to tighten up. I actually installed it first without the clutch just to play around with it. it closed up enough to make it so the fingers went in a bit.
Make sure your pressure plate it ok. That might be your issue.
Make sure your pressure plate it ok. That might be your issue.
#5
Audio Cronic Syndrome
Join Date: Nov 2003
Location: Anacortes, WA Hometown: P.O., WA
Posts: 890
Likes: 0
Received 0 Likes
on
0 Posts
possibly the clutch plate is backwards?? its gonna be loose till you torque the pressure plate down too. id go in a star pattern btw...
#6
Lapping = Fapping
iTrader: (13)
There's an easy way to remember which side of the clutch disc faces the flywheel. There is usually a note on the disc on the side that faces the flywheel, but if not, you can remember that the FLat side faces the FLywheel. The other side of the disc with the PRotrusion faces the PResure PRate or uh plate.
FLat side - FLywheel
PRotruision side - PRessure plate
FLat side - FLywheel
PRotruision side - PRessure plate
Trending Topics
#8
Senior Member
Thread Starter
Join Date: Jun 2003
Location: Canada
Posts: 352
Likes: 0
Received 0 Likes
on
0 Posts
Torqued up with the clutch on the proper way I can still with the clutch aligning tool move the disc and see a couple mm of space.
I do have a counterweight installed
I do have a counterweight installed
#9
Super Moderator
iTrader: (3)
The counterweight should be for an '84. Now the clutch is smaller for the '81 than the '84 (215mm vs. 225mm), but it should still work. Now, Mazdatrix lists all lightweight steel flywheels as being the same from '72-'88 N/A. However, the hardware package is different between your '81 and the '84. Perhaps you need different hardware (spacers wrong thickness)? Maybe give Mazdatrix a call and see for sure.
#10
Senior Member
Thread Starter
Join Date: Jun 2003
Location: Canada
Posts: 352
Likes: 0
Received 0 Likes
on
0 Posts
I will try giving them a call
The counterwieght is for an 84'
For giggles I tried installing the old clutch that was on the 84' and I get the opposite results, spacers become too small. I fear I have to buy another new clutch.
The counterwieght is for an 84'
For giggles I tried installing the old clutch that was on the 84' and I get the opposite results, spacers become too small. I fear I have to buy another new clutch.
#12
Originally Posted by g prime
I will try giving them a call
The counterwieght is for an 84'
For giggles I tried installing the old clutch that was on the 84' and I get the opposite results, spacers become too small. I fear I have to buy another new clutch.
The counterwieght is for an 84'
For giggles I tried installing the old clutch that was on the 84' and I get the opposite results, spacers become too small. I fear I have to buy another new clutch.
If you end up not needing the spacers, I will be happy to buy them from you. I have a light steel flywheel and a stepped pressure plate combo that requires spacers and it will save me from either making them or exchanging the pressure plate for a non-stepped one.
--
Blake
#14
Senior Member
Thread Starter
Join Date: Jun 2003
Location: Canada
Posts: 352
Likes: 0
Received 0 Likes
on
0 Posts
I tried it with no spacers and it seemed to suck it down, the pressure plate touches the flywheel when it is torqued, and the clutch is tight.
Thanks for everyones help.
Blake - I will be happy to sell you the spacers but, let me put everything back together first to make sure it will shift without drag or any other problems.
Thanks for everyones help.
Blake - I will be happy to sell you the spacers but, let me put everything back together first to make sure it will shift without drag or any other problems.
