Post your Mikuni carb pics.
Thread Starter
Joined: Mar 2001
Posts: 3,843
Likes: 1
From: Convoy, Ohio, USA
Post your Mikuni carb pics.
I am installing my Mikuni, post pics of your installed carb please, advice also on what to do with the two outlet/inlets on the underneath of the carb.
Steve
Steve
i dont actuallt own the car yet
but will this saturday

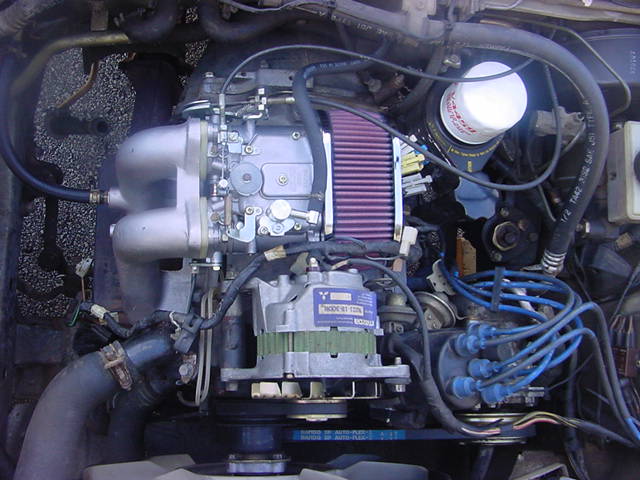

sorry i have no helpful info, but it is a pic of a 44mm mikuni
what are your plans for the carb? what kind of build are you doing? what kind of hp you aiming for?
but will this saturday sorry i have no helpful info, but it is a pic of a 44mm mikuniwhat are your plans for the carb? what kind of build are you doing? what kind of hp you aiming for?
wow, that carb looks pretty serious! What applications would you use this carb for? Mainly for getting the most hp out of the car? And how much does one cost? Also mech secondaries or vaccum operated?
Ryan
Ryan
Thread Starter
Joined: Mar 2001
Posts: 3,843
Likes: 1
From: Convoy, Ohio, USA

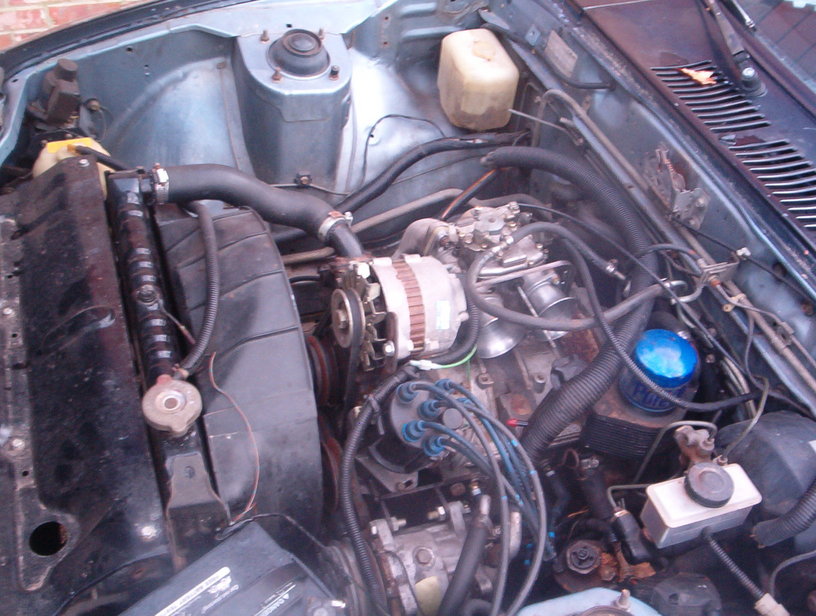

Mikuni is excellent for stock or mild stree port, not for max hp in a wildly ported engine, but can easily make a stock 12a release 150hp with decent exhaust and ignition. This is my DD with full interior its the conservative nice car, my 83 however, well, I'll reveal that later on.
Trending Topics
ROTISSERIE ENGINE POWER!
Joined: Jul 2003
Posts: 245
Likes: 0
From: Winterpeg, Canada
Burning Oil-Grinding 3rd
Joined: Apr 2002
Posts: 4,094
Likes: 1
From: Union Mills NC
Originally Posted by EonBlue
I have 2 of those carbs and did not know those 2 extra nipples, that I have capped, were coolant lines. Most interesting.
Steve, I hope I didn't steer you wrong in my PM.
Steve, I hope I didn't steer you wrong in my PM.
Thread Starter
Joined: Mar 2001
Posts: 3,843
Likes: 1
From: Convoy, Ohio, USA
Mine has the 2 OMP connections plugged but has the coolant nipples? So do I need to remove the OMP and go pre mix. Where do most of you plug into coolant from. Or is this backwards.
Hey Scott, no problems, just trying to work this thing out, have it mounted, fuel lines run, just working on the throttle linkage and whatever those two nipples are supposed to do...
Hey Scott, no problems, just trying to work this thing out, have it mounted, fuel lines run, just working on the throttle linkage and whatever those two nipples are supposed to do...
Hope this helps give you an idea of the brackets needed. I don't really want to part this carb out, it was set up for an SE and I have the UIM for it too.
You might try contacting Wolf Creek Racing, they are the east coast supplier fo Mikuni. There is one on the west coast too, but I don't remember who they are.
www.wolfcreekracing.com
Todd Walrich
3 Columbia St
Westbury NY 11590
516-635-6775
Your other pics will be in the mail soon.

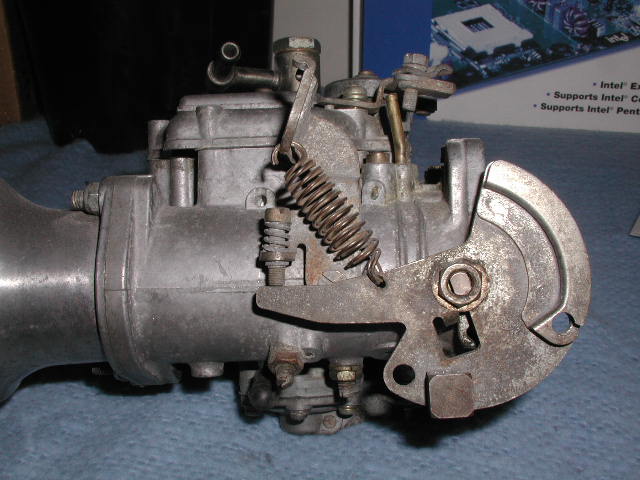

In the top pic, the bracket at the top of the spring holds the cable sheath, one jamb nut goes on each side like oem. The cable then wraps around the curved lever arm, lays in the square block at the bottom, it's held in place there by a screw and the round end of the cable goes in the very bottom hole.

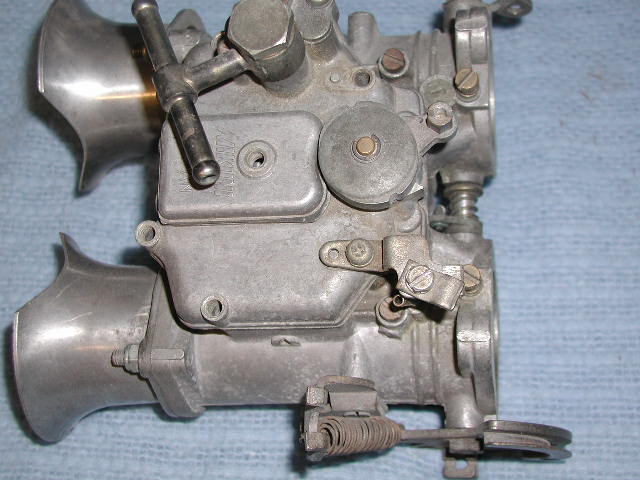

The lower pic shows the top of the carb and the starter lever and bracket where the choke cable goes. Th Mikuni's don't have a choke, per se, it's called a starter circuit and richens the mixture instead of reducing the air flow with a choke butterfly.
You can order a manual from Wolf Creek that covers most of the operation and tuning of the carb. You will get a loose leaf copy of the original. PM me if you want a copy of a copy.
Does your carb have the lever arm on the other side of the throttle shaft for the mop rod? When I bought mine on eBay, the mop rod didn't come with it. The 1st gen rods are too short. I ended up modifying a 2nd gen one to fit, then had to drill the pivot on the mop lever to accept the larger diameter 2nd gen rod.
Thread Starter
Joined: Mar 2001
Posts: 3,843
Likes: 1
From: Convoy, Ohio, USA

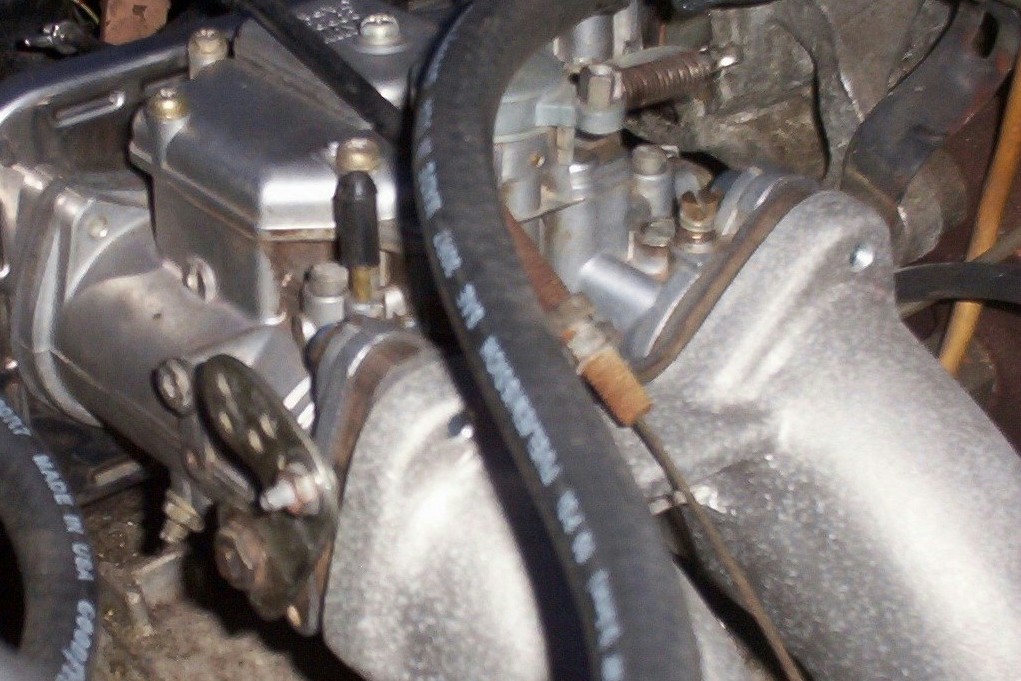

Update, apparently I have a race linkage which allows for throttle cable adjustment to get better response for track days, cool huh, I also found the cable link, it was attached to the top of the carb, i just didn't recognise it as it was out of place (for security)

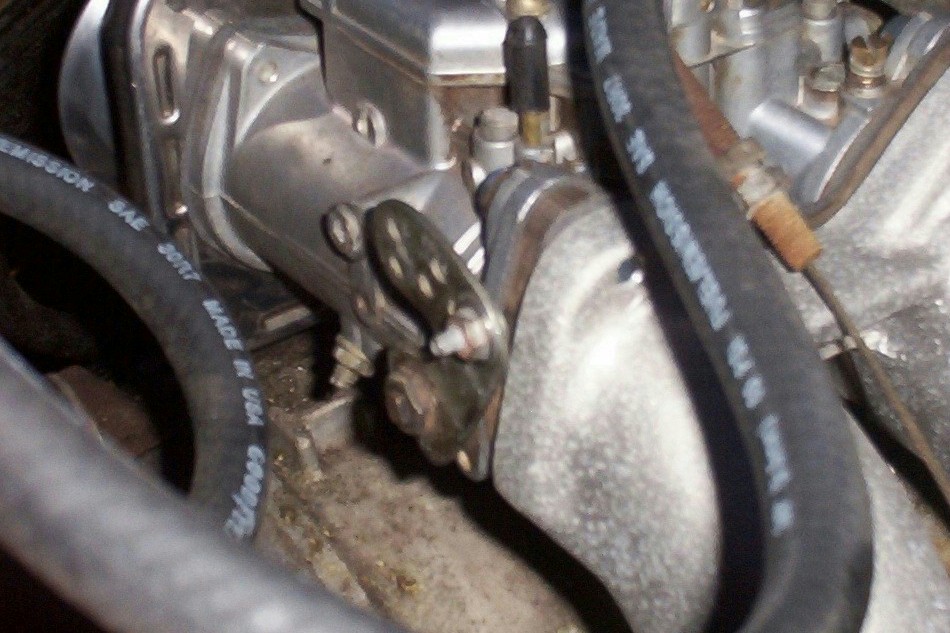

See the brass screw to the upper right, that's the linkage.
See the brass screw to the upper right, that's the linkage.
Last edited by aussiesmg; Apr 3, 2006 at 10:36 PM.
