A request for people with holley setups to please post pics. Also if someone has pics of rb holleys and non rb holleys throttle linkage it would be greatly appretiated. I have searched for hours trying to get pics to show how rb modifies their throttle linkage for use on the firewall side. Every Holley I have seen pulls the throttle open from the top but from what I can tell the rb setup and people using non rb holleys somehow hook up their throttle cable to bottm of the throttle arm. I have been having a hard time figuring out just how to setup a good throttle cable linkage for my non rb holley. Thanks a bunch.

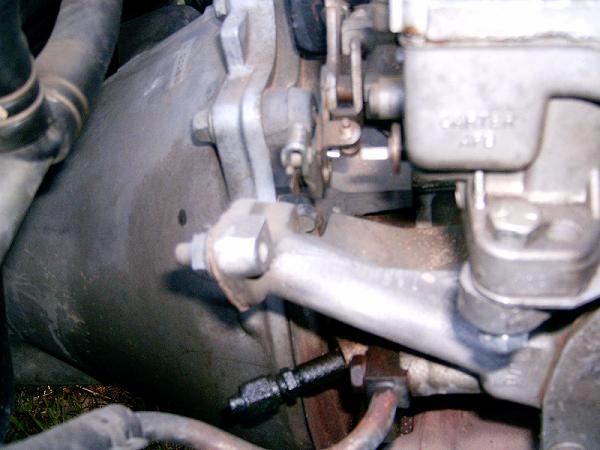

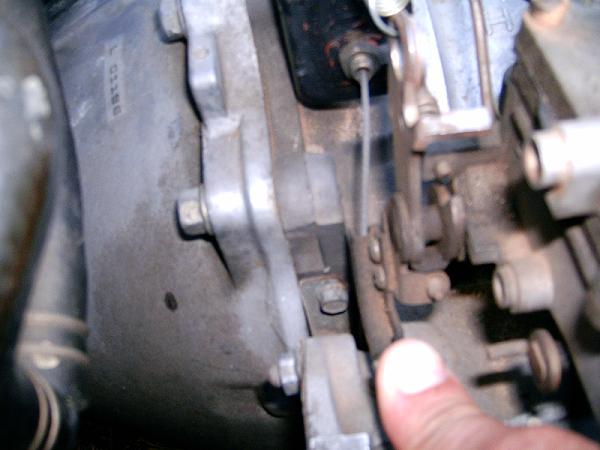

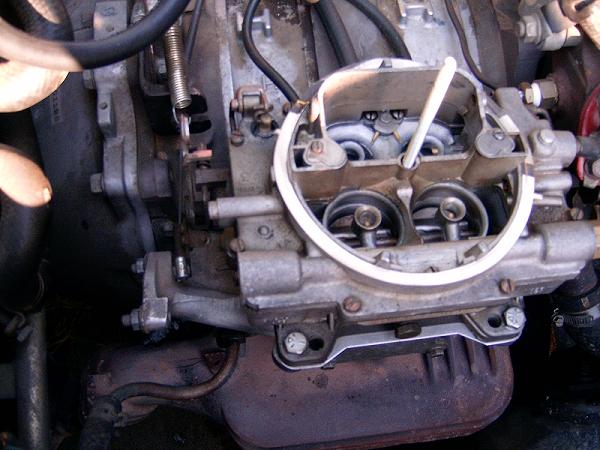

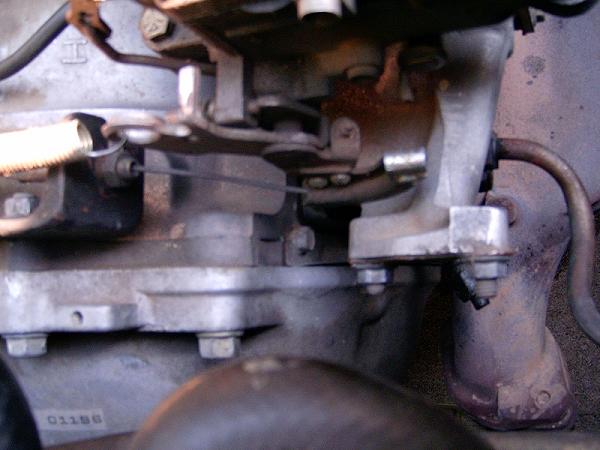

Here are a few pics of mine... I dont know anything about it, since I just bought the car, but maybe it will help.



Mazdatrix sell the linkage for the cable. If you have an old Lego toy set you will find similar linkage for the cable.



[twin peaks quote]THE WORD LINKAGE REMINDS ME OF SAUSAGE. NEVER CARED MUCH FOR THE LINKS, PREFERRED THE PATTIES. BUT BREAKFAST IS A REAL GOOD IDEA. BONZAI. REMEMBER THOSE OLD WORLD WAR II MOVIES? BONZAAIIIII!!!!
[/twin peaks quote]

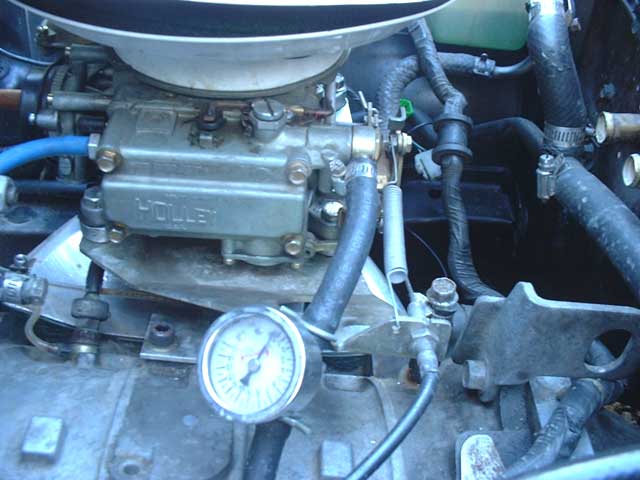

err... ya, is this what you meant?



Thanks for the pics.



Nice to see the new home of my old setup!!



Hey Jon!

Yup, its working out pretty good so far, secondaries arent opening up very far tho. gonna have to figure a way to fix that. otherwise its a great setup.

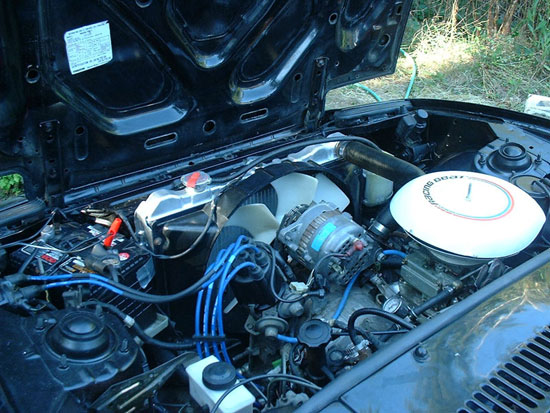

here's a more recent pic of the engine, its cleaned up a fair bit since the 12A days, or the semi-functional EFI setup's ive had on there lately. haha



Edelbrock has a piece you can get for that.
