slate84

As the title states, im finding it impossible to find it, a description and a picture would be amazing. could someone please help? I've looked at the fsm and my haynes.

Kim

Not sure what You mean here.:

Throttle cable cam and all the springs n' stuff ?

Jeezus

iTrader: (4)

Butterflies? Throttle shaft? Carb or EFI? What carb?

85 FB

His user profile says he has an '84 GSL. So, I'm guessing carb.

slate84

i'm trying to find out the throttle opener vacuum line.

Jeezus

iTrader: (4)

What do you mean by throttle opener? Are you talking about the throttle shaft, or the throttle cable holder?

Jeezus

iTrader: (4)

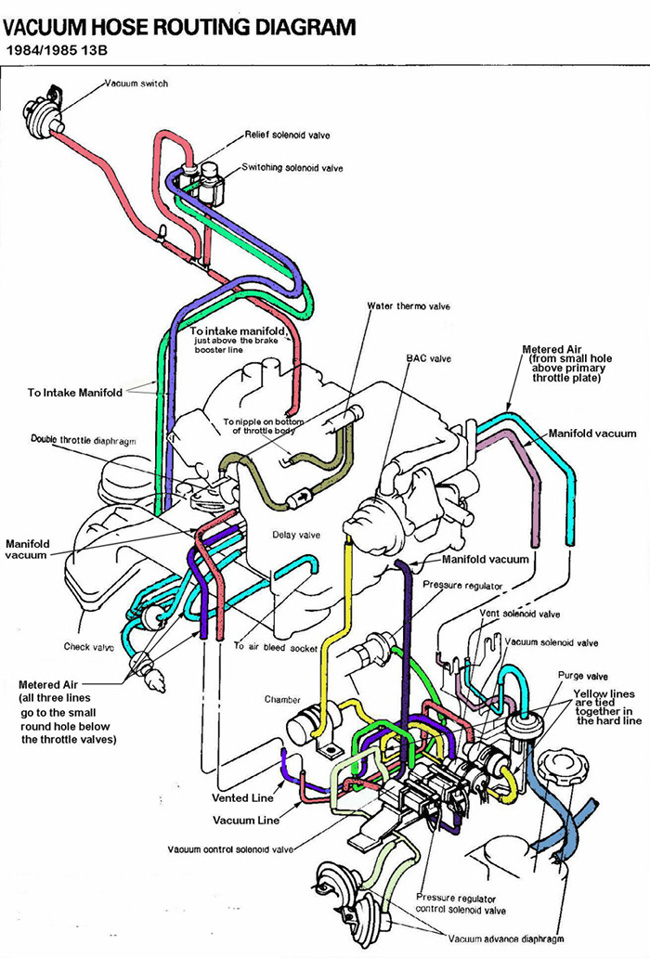

I hope this can help somewhat, even though it is for 13b

https://www.rx7club.com/attachment.p...5&d=1191758209

Stevan

iTrader: (17)

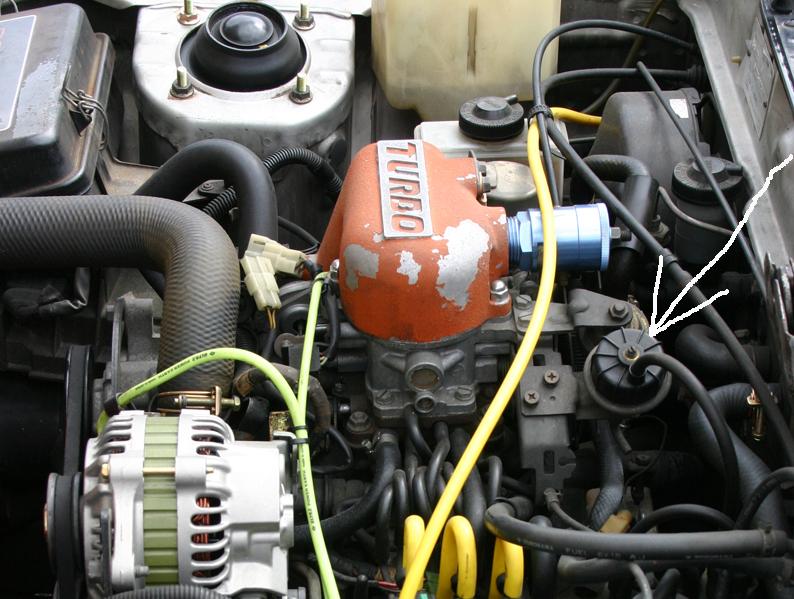

Although this is a jdsm turbo the throttle opener is the same and is at the rear of the carb.

steve84GS TII

I thought he meant the electric hot start throttle opener,but it lookes like hes reffering to the AC throttle kicker that ups the idle when the accessory loads drag the engine down.

rotary_X7

Stevan i believe pegged it on the money.

rotary_X7

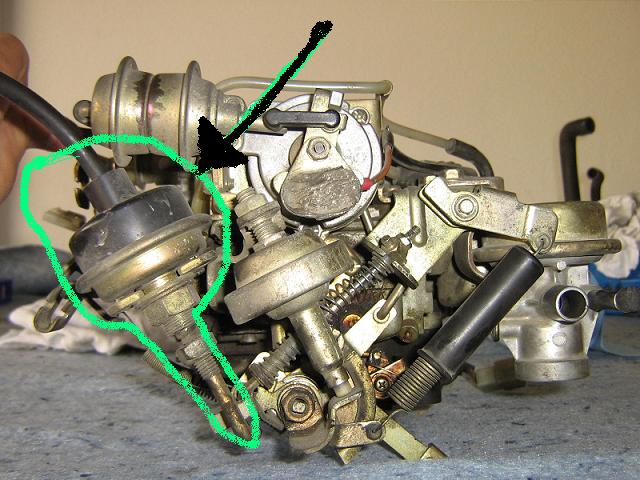

Just to make sure you know what it is. Another pic of it...closer up.


As i said in the other post though...if you don't run A/C and don't have a big sound system etc. there is no need for this. It's purpose is to compensate for the engine being under power load when you turn on the A/C or turn on the fans, etc etc.

mazdaverx713b

iTrader: (91)

usually when the a/c is on and the throttle opener is opening the throttle to compensate for the load, it can raise the idle up to as much as 1200rpm.

84stock

iTrader: (5)

The throttle opener is the long flat black pedal to the right of the one that stops the car..........

74RX4

iTrader: (10)

Excuse the foggy pics. It was 44 (BRRRRR) this morning in Naples and the camera was in the garage.

Here's the vacuum line going from the Throttle opener to the hard metal line as shown.




The metal line follows the dashed line and the short hose at the other end goes to the ....





AC solenoid valve. It is the one closest to the firewall with the White connector

trochoid

iTrader: (6)

Wow, I'm impressed, between humor and some very good technical pics, you guys got the job done. Maybe someday we can shake our 'Evil Forum' nickname. At least in the 1st gen extion, there's no hope for the 2nd gen guys.
