Noob could use some help on starting to sort out my SA
12-06-15, 07:44 AM
#1
Full Member
Thread Starter
Join Date: Nov 2015
Location: SoCal
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Noob could use some help on starting to sort out my SA
Hi guys - started digging into my SA yesterday and not surprisingly started finding issue right away.

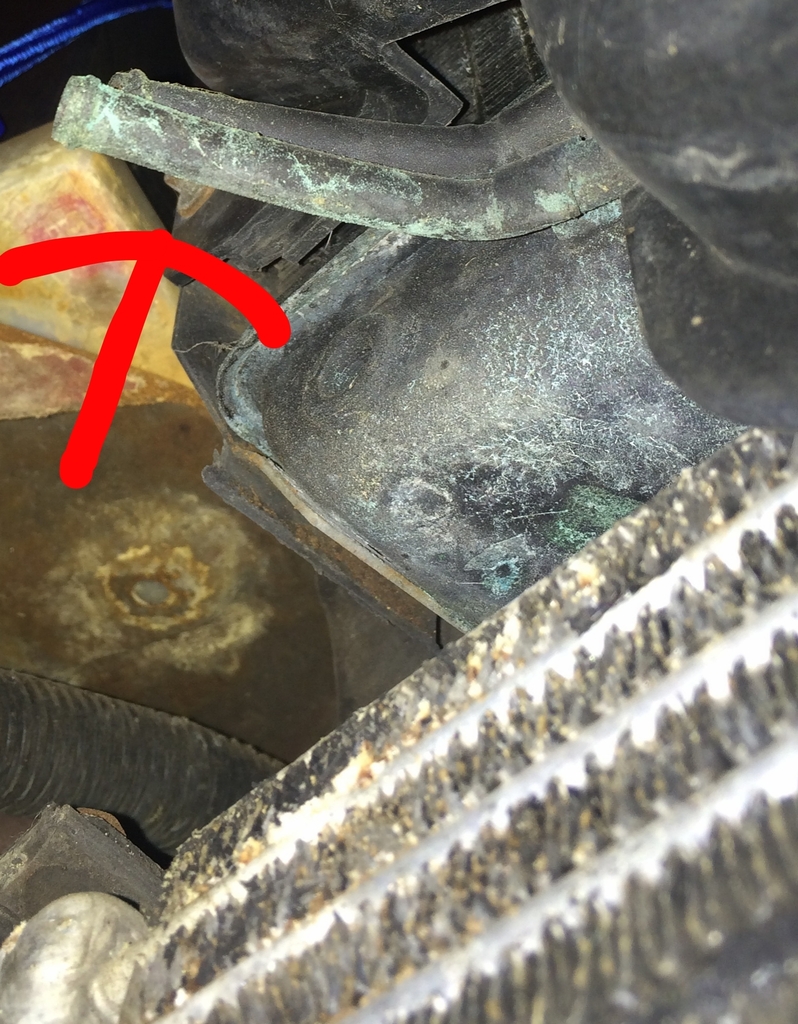

1) I am assuming that I shouldn't have open cooling lines here, right? Picture was taken laying on the ground looking up at the oil cooler. Red arrow points to the open fittings. What is supposed to go there?

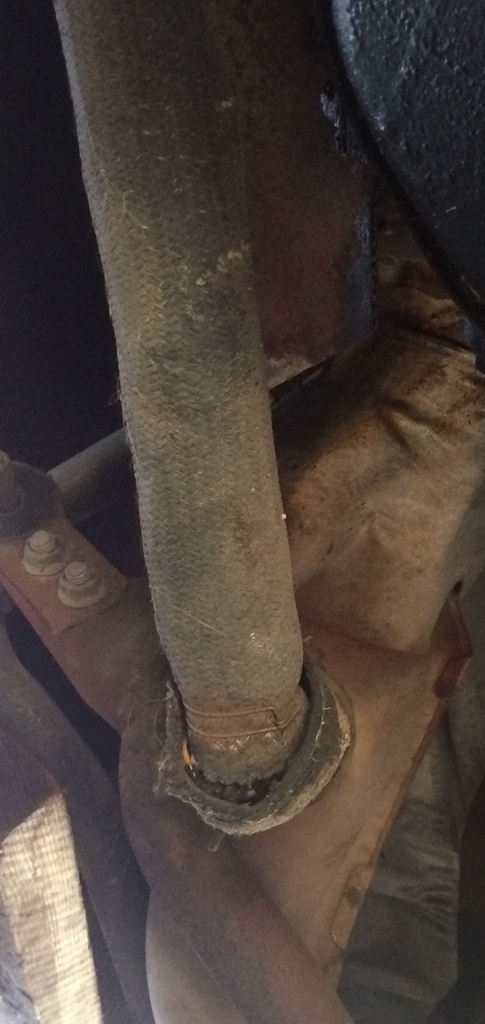

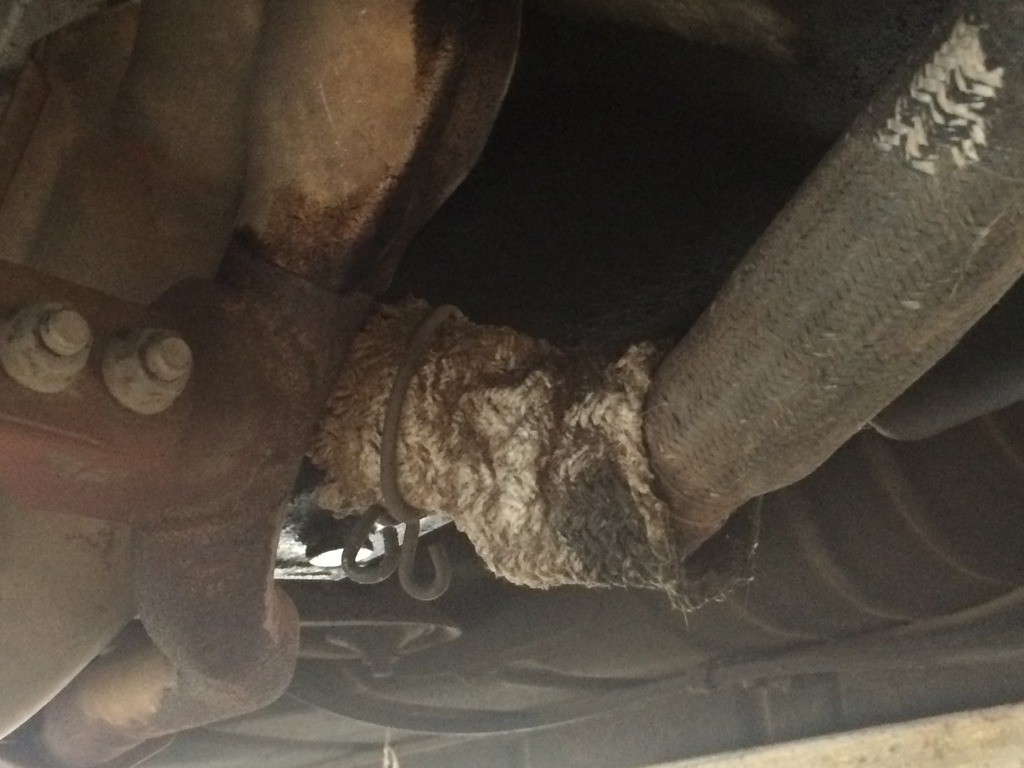

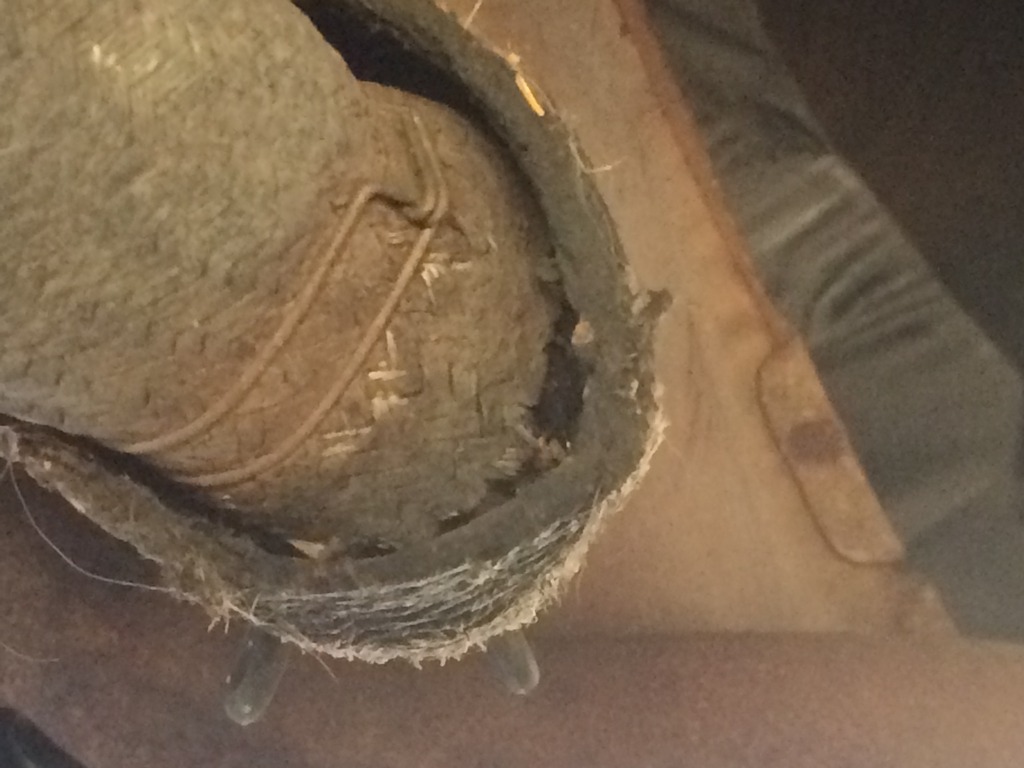

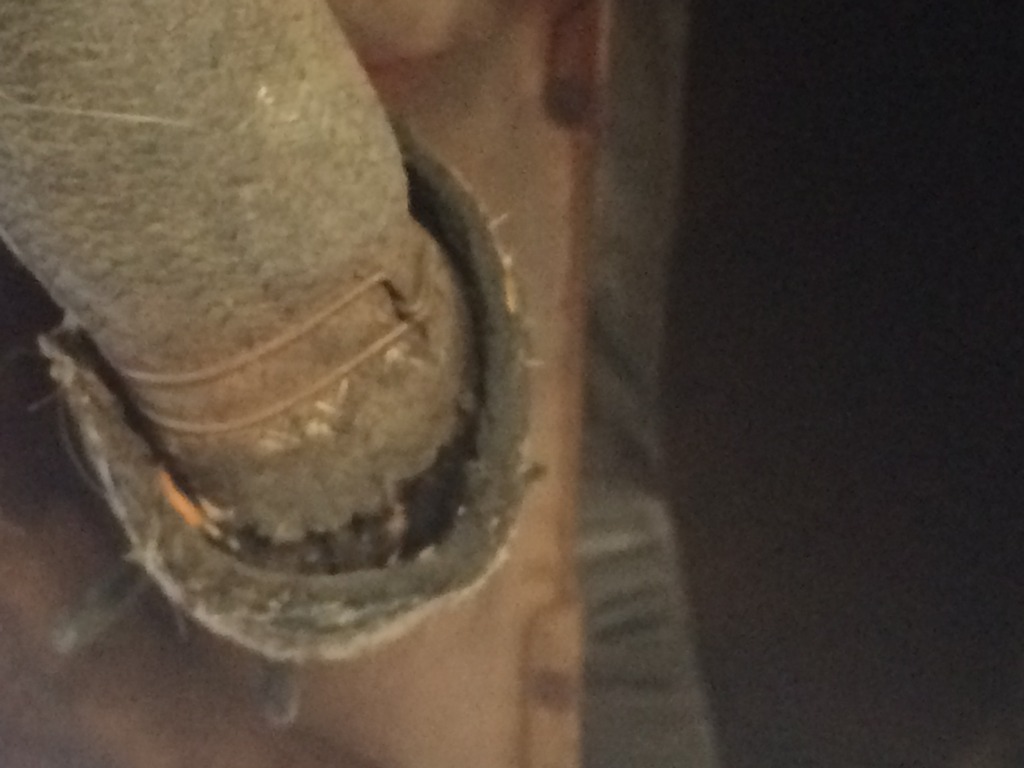

2) My car has a bad backfire when I lift off the throttle, and while I know this is not uncommon this is pretty excessive. This looks off to me and likely letting in extra air, could I get your coaching on this please?
Thanks in advance for the help.
1) I am assuming that I shouldn't have open cooling lines here, right? Picture was taken laying on the ground looking up at the oil cooler. Red arrow points to the open fittings. What is supposed to go there?
2) My car has a bad backfire when I lift off the throttle, and while I know this is not uncommon this is pretty excessive. This looks off to me and likely letting in extra air, could I get your coaching on this please?
Thanks in advance for the help.
12-06-15, 11:01 AM
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
1. are the cooler lines for the a/t cooler. most aftermarket radiators come with them, that way there is 1 part number to do every car. if yours is an m/t then they are just left open.
2. that pipe doesn't look good, i'd pull it off and look further
2. that pipe doesn't look good, i'd pull it off and look further
12-06-15, 11:22 AM
#3
Full Member
Thread Starter
Join Date: Nov 2015
Location: SoCal
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Agree that pipe looks nasty. What exhaust routing is that specifically for?
Thanks for the help.
12-06-15, 12:45 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
not sure, the thing that looks like a catalytic converter in the middle of the car, is a heat exchanger, it takes the air pump air and heats it up, and then injects it into the thermal reactor.
that pipe looks to be either the pipe to or from the heat exchanger, i don't know which is which
that pipe looks to be either the pipe to or from the heat exchanger, i don't know which is which
12-06-15, 11:19 PM
#5
84SE-EGI helpy-helperton
What's crazy is that's how Mazda shipped these things back then. That's probably a high-temp (asbestos?) shielding which surrounds a metal pipe that comes from the heating catalyst to the front of the thermal reactor and is switched by the air control valve on the lower intake manifold.
You are correct that these tend to get banged up, holes rust through, and let cool air into the exhaust at the front and heating catalyst which will definitely cause heavy backfire. When mine had a hole in it, flames would occasionally shoot out the muffler with backfire sounding like a 12ga shotgun. You'll need a new bypass air pipe if yours is damaged unless you can find a welder to work on it.
You are correct that these tend to get banged up, holes rust through, and let cool air into the exhaust at the front and heating catalyst which will definitely cause heavy backfire. When mine had a hole in it, flames would occasionally shoot out the muffler with backfire sounding like a 12ga shotgun. You'll need a new bypass air pipe if yours is damaged unless you can find a welder to work on it.
01-11-16, 10:38 AM
#7
Full Member
Thread Starter
Join Date: Nov 2015
Location: SoCal
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
What's crazy is that's how Mazda shipped these things back then. That's probably a high-temp (asbestos?) shielding which surrounds a metal pipe that comes from the heating catalyst to the front of the thermal reactor and is switched by the air control valve on the lower intake manifold.
You are correct that these tend to get banged up, holes rust through, and let cool air into the exhaust at the front and heating catalyst which will definitely cause heavy backfire. When mine had a hole in it, flames would occasionally shoot out the muffler with backfire sounding like a 12ga shotgun. You'll need a new bypass air pipe if yours is damaged unless you can find a welder to work on it.
You are correct that these tend to get banged up, holes rust through, and let cool air into the exhaust at the front and heating catalyst which will definitely cause heavy backfire. When mine had a hole in it, flames would occasionally shoot out the muffler with backfire sounding like a 12ga shotgun. You'll need a new bypass air pipe if yours is damaged unless you can find a welder to work on it.
Anything this else I need to be aware of?
Thanks!
Trending Topics
01-13-16, 06:39 AM
#9
Full Member
Thread Starter
Join Date: Nov 2015
Location: SoCal
Posts: 108
Likes: 0
Received 0 Likes
on
0 Posts
Thanks Stu. As it turns out I do not have an exhaust leak, so it is looking like my Air Control Valve.
Thread
Thread Starter
Forum
Replies
Last Post
wthdidusay82
Microtech
10
12-16-15 09:14 AM
