Just wondering if you guys could give me a step by step on how to install the msd on my gsl. It's for a friend of mine and his ignitor broke so he is wondering if he can use the msd in place of the ignitor or does he need the ignitor? Thanks for any info you can give.


https://www.rx7club.com/showthread.p...talling+an+msd

this kind of tells us what wires to hook up but I'm still unsure if we need the ignitors or not. Thanks



Look on the FAQ page under:

Q. Can I convert to direct fire ignition?

If your friend doesn't already have all the MSD stuff, look at DLIDFIS with HEI igniters. Straightforward, works well, and is about $100 for all the stuff.

- David



Well what does he need to just hook up the box to the distributer? And does he need the stock ignitors? We don't want to do anything fancy we just want to put the msd on the dizzy. Thanks for the help so far.



FAQ writeups are very good. Have done it with MSD and Jacobs. Wires into ignitor.



just read this one http://www.mazspeed.com/msd.htm and it had the answers I was looking for, thanks guys. Now back to the second gen section

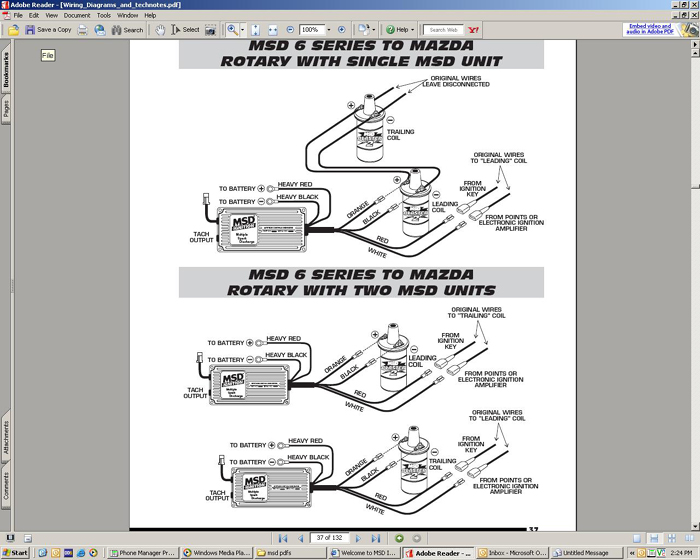

Here's a picture sent to me from a rep at MSD. It shows how to do a single and dual box setup. Hope this helps.



That's the best diagram I've seen yet. Thanks 85 FB, too bad I did the 2gcdfis w/TT mod.
