Glazedham42

iTrader: (4)

This is a rather strange request, but if someone could put up a picture of a stock FB centerpipe (81-85) I would appreciate it. I need a picture of one to look at while I fab up my exhaust. I tried searching but couldn't find one. All I got was 10,000,000,000 threads about racing beat headers...

Jamie

SunRedRX7

If no one posts a pic by this evening, I have my 85 exhaust in my basement that I should be able to post pics of when I get home tonite.

Glazedham42

iTrader: (4)

Okey doke. That'd be very helpful.

kurpluck

Kinda in the same boat. I could take a flick of mine but its a total mickie mouse job.

Would anyone mind selling there old one?

Neill

P.s. Sorry for the thread steal.

Glazedham42

iTrader: (4)

No prob. I just need a picture of an unmolested one so that I can make a new one out of straight tubing and new flanges....

VPTUNING

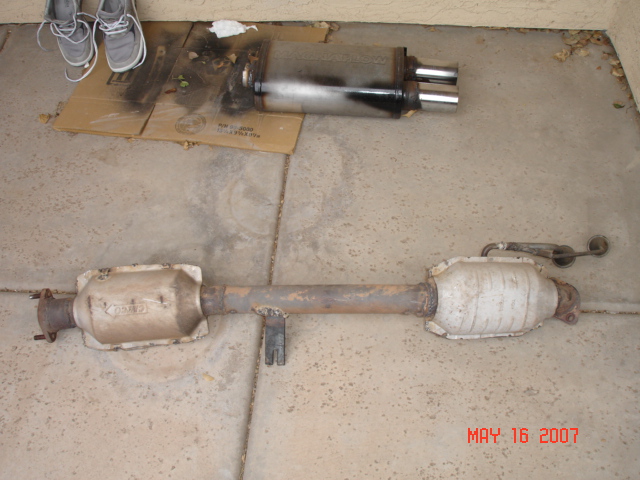

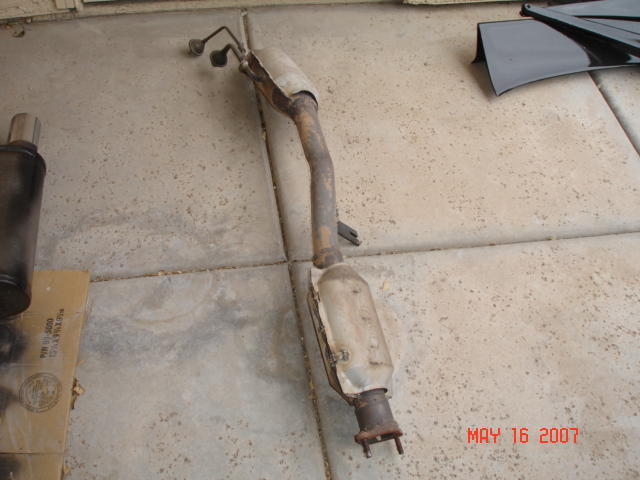

is this what u need

Glazedham42

iTrader: (4)

Whoa, that doesn't look like mine at all. Mine is just an S shaped pipe with a flange on each end and a hanger for the rubber straps. All of my cats came before the center exhaust pipe. What car is that one from??

I'm working on an 83 GS BTW...

VPTUNING

aw mine is an 85 gsl

StealthGXL

iTrader: (1)

I can take a pic for you tomorrow.. from an 83 GS.

trochoid

iTrader: (6)

This is not an oem exhaust.

SunRedRX7

Sorry about not posting the pic, got stuck late at work then went straight to a friend's to watch the Hockey game.

I found this pic on Mazdatrix

I just put a note in my pocket so that when I get home tonite, I'll remember to get the pic, now my car was missing the 3 cats and had a racing beat cat replacement pipe installed to if that changes anything.

Glazedham42

iTrader: (4)

^^^^ That pic is what I needed. I looked around on the Mazdatrix website but wasn't able to find that one for some reason. I must've been looking in the wrong section. On to fabricating the exhaust now! Thanks for the assistance!
