Speedfreaks101

How could it be done without a bodykit? Just throw out some ideas please,


thanks,
Bart

Max7

coilovers & rolled fender lips?

Rx-7Doctor

iTrader: (13)

It is all in the back spacing of the wheel, i have 16x7 wheels and 205/45/16 on mine and have no clearance problems. You can purchase the flared fenders off the widebody kit but just doing the front will not look very good. rx7doctor

Speedfreaks101

How wide can I go (with a 17 inch rim) if I go this route?


Are there any that are peferable over other for our applications?



Thanks guys,
Bart

FD Racer

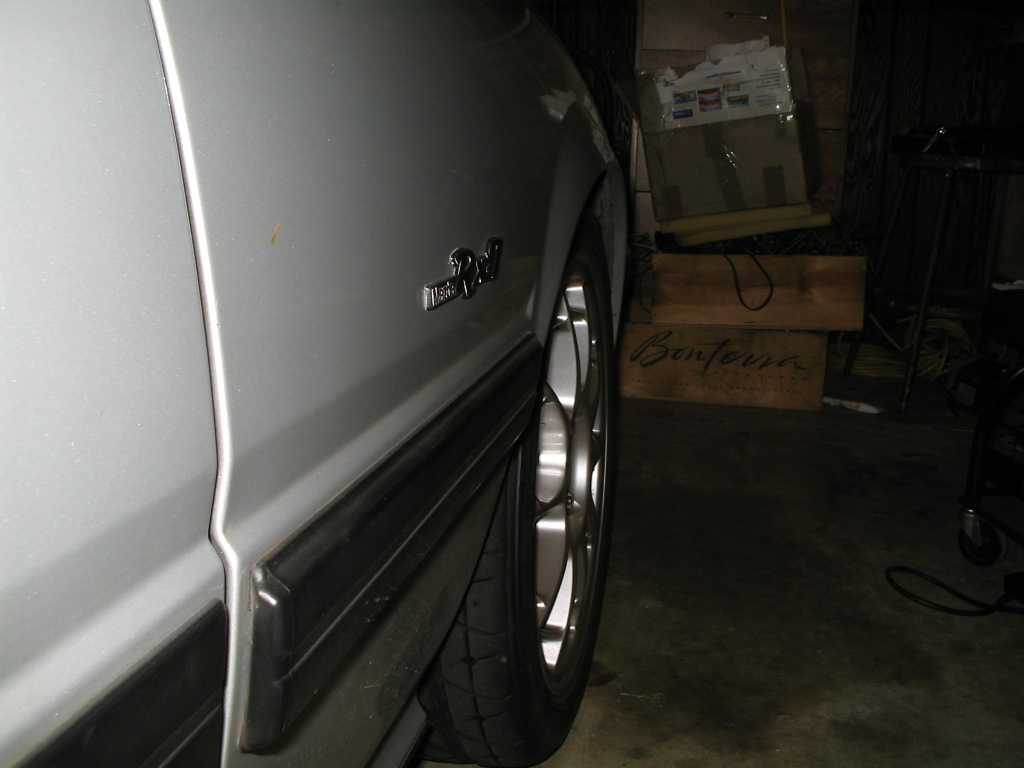

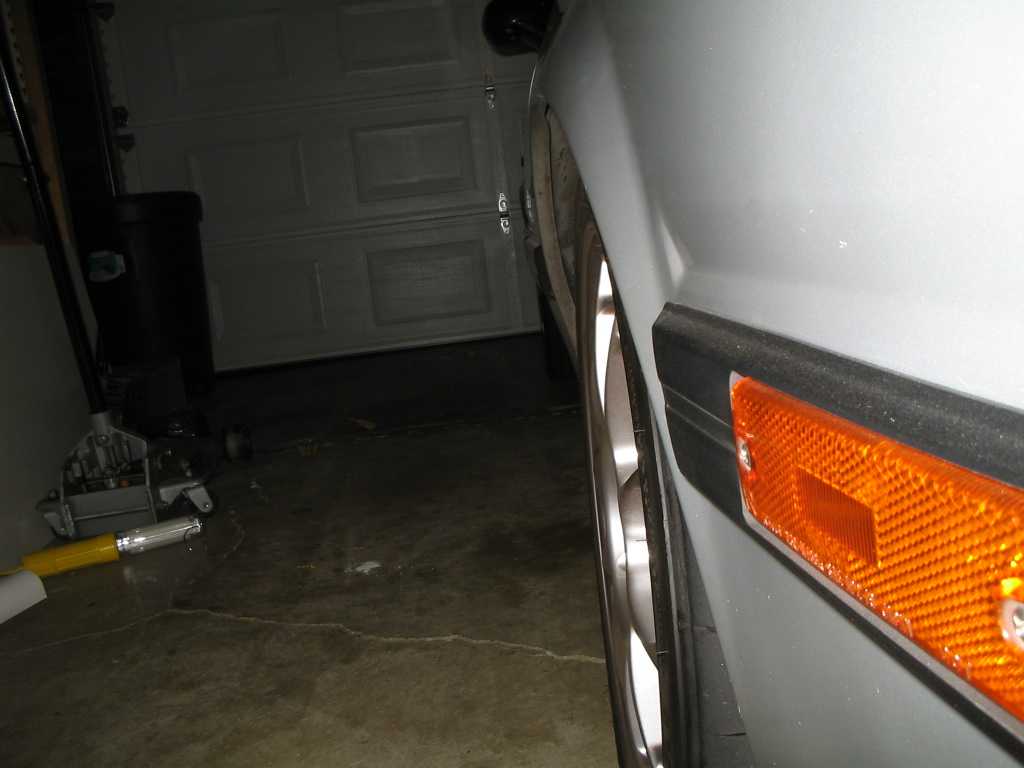

I have 16x7's all around and they all have a 43mm offset (FWD offset / SE suspension). As you can see in the pictures I could have gone wider. The key is getting them inboard as much as you can without rubbing the shock or spring. Since I have coilovers I was able to grind the **** out of the spring mounting perch so the tire wouldnt rub on the inside. The racing beat lowering kit made it nice too becouse I did'nt have to bottom out the coilovers to lower the car so much. The higher the coilovers the more clearance you have for tire/wheel.

http://toy4two.home.mindspring.com/offset.html

the above link is helpfull in figuring out wheel offsets. For example, If I wanted to get 16x8's to fit, but I did'nt have any more wheel clearance on the inside, with the calculator's help I can determine that an 8" wheel will need to have a 30mm offset to match my 7" 43mm wheel's inside clearance.

Speedfreaks101

What is your actual tire size?

BTW thanks for the link and the assistance,


Bart

CarlRx7

i have 17" with the gsl-se suspensin. my rims have 40mm offset and 215/40/17, they are the biggest you can fit without going to coilovers.

my suspension consists of tokico blue's and ebaich springs.

carl.

p.s. i also rolled the inside of the fender lip IN.

FD Racer

no prob. 205/45/16. no fender rolling

MarkPerez

205/60/15's with 40mm offset, rolled fender lips here.
