Need bolt size & pitch for small flange rear end
#1
Need bolt size & pitch for small flange rear end
Hey guys,
I swapped a small flange LSD into my rear end and don't have the bolts that go with it. I tried using a regular old 12mm bolt, but it wouldn't thread into the rear end right.
1) Can someone tell me what the proper bolt size and thread pitch for these things is? Are they special bolts? I was thinking that they would just be regular old 12mm jobs, but apparently not.
2) Also, are there supposed to be any lockwashers in there anywhere? I realize that the small flange differentials are threaded so there aren't any nuts, but what about some lock washers? Does anyone use thread lock on these bolts?
Thanks in advance,
Jamie
I swapped a small flange LSD into my rear end and don't have the bolts that go with it. I tried using a regular old 12mm bolt, but it wouldn't thread into the rear end right.
1) Can someone tell me what the proper bolt size and thread pitch for these things is? Are they special bolts? I was thinking that they would just be regular old 12mm jobs, but apparently not.
2) Also, are there supposed to be any lockwashers in there anywhere? I realize that the small flange differentials are threaded so there aren't any nuts, but what about some lock washers? Does anyone use thread lock on these bolts?
Thanks in advance,
Jamie
#3
That would be awesome. Let me know the bolt size, thread, & length. Also let me know if there are any lockwashers in there. I was planning on just using some locktite, but didn't know if there were supposed to be any lockwashers anywhere.
Thanks Wacky,
Jamie
Thanks Wacky,
Jamie
#5
Lapping = Fapping
iTrader: (13)

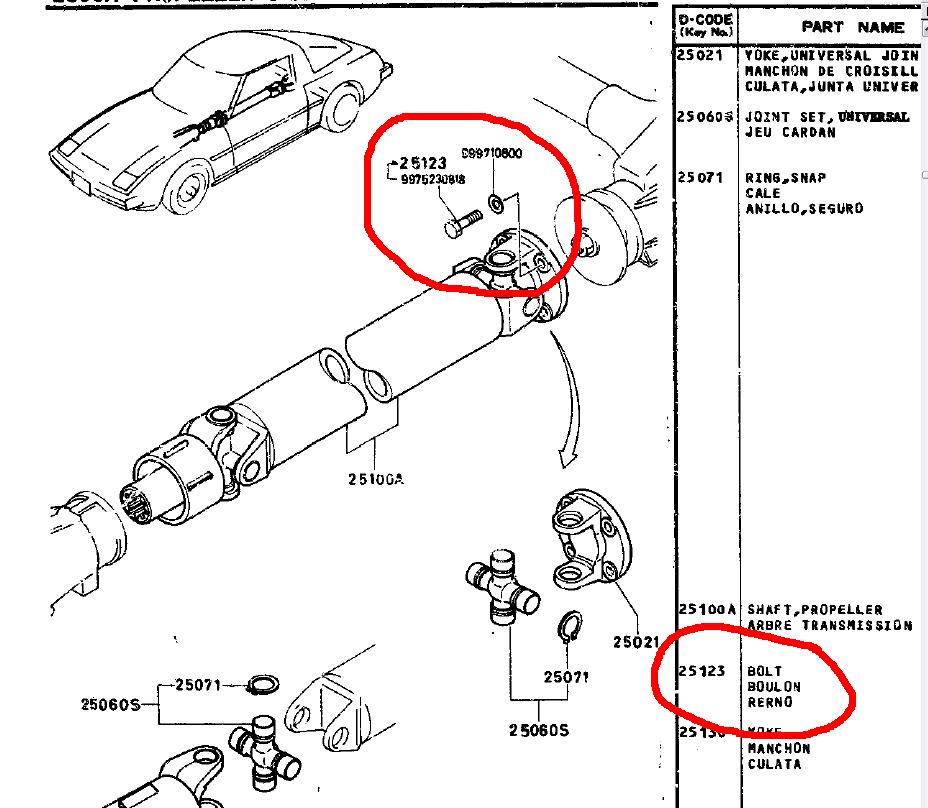

8mm x 1.25 but there is an unthreaded section and they're grade 12. Best to get a set from a fellow forum member rather than buying some aftermarket ones as most of those will have 13mm heads and not fit without some grinding or other mods. There is a head gripper on the pinion flange which holds 12mm heads. Or maybe I'm thinking of the large flange rears? Well, good luck with it.
#7
Lapping = Fapping
iTrader: (13)
There is a number cast into the bolt head that will show what grade or hardness it is. I don't know of anybody. I know I don't have any spares. I had a heck of a time coming up with enough bolts for the S model which happens to have a large flange LSD rear that somebody swapped in.
Hmm, you know what? As a temp solution you could use some stationary gear bolts (grade 6) or door bolts (grade 8). Anything that is the correct length and thread pitch with a lock washer could work. This will allow time to get a correct set.
Hmm, you know what? As a temp solution you could use some stationary gear bolts (grade 6) or door bolts (grade 8). Anything that is the correct length and thread pitch with a lock washer could work. This will allow time to get a correct set.
Trending Topics
#8
Just wanted to follow up on this. I ended up using my metric 8x1.25 tap to clean out the threads on the differential flange. Turns out that is the reason I couldn't get my bolts to go in the other night. They were all full of rust, dirst, and paint. I got quite a bit of crud out of the threads with my tap. So, if anyone is wondering in the future, Jeff was dead on with his information. The bolts are 8mm X 1.25. I think the ones that I used for about 3/4" long and were a class 8.8. I realize they aren't quite up to spec but hopefully they'll do the job for now. I also put some lockwashers on them and used a good amount of thread locker so they don't work loose.
Jamie
Jamie
