Name that motor!
Can those in the know help me identify this motor? I'm tearing into it to replace a blown coolant o-ring and want to know what gaskets I need to look for...
The lettering on the rotor housings is "mazDa Automobiles 13B"
The rear and intermediate irons are stamped "R5"...

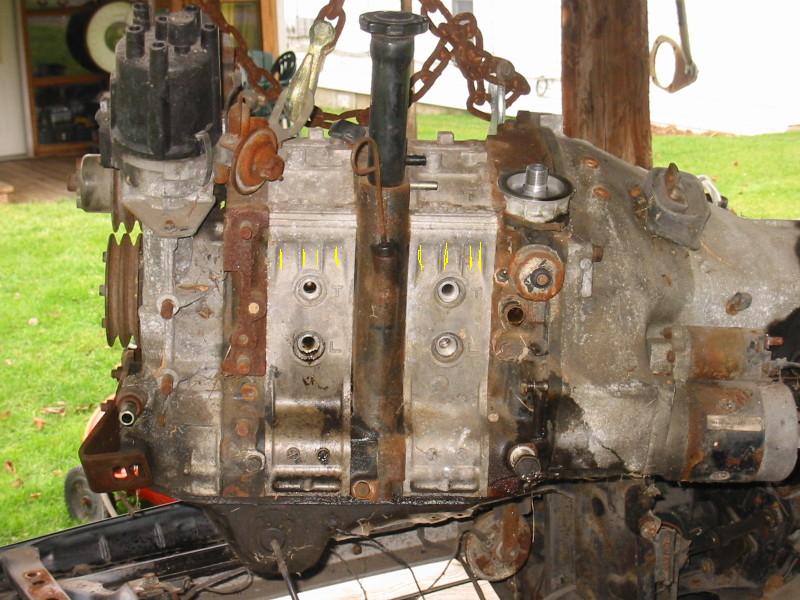

Here's a shot of the intake/exhaust ports... pardon the rust
And the plug side... not the best picture, but I think there are what's referred to as "eyebrows" over the plugs?
Not that it affects the innards, but it runs with a Weber 48 IDA and RB long tube headers, with a lightened flywheel. Based on that, any recommendations on the best (read, cheapest) gasket set that will work since I don't need to match carb parts, and won't be using a pan gasket?
There are still crayon/chalk marks on the rear housing behind the flywheel, wonder if those are factory or a rebuilder? The tension bolts are marked with green paint...
Thanks for your help folks!
The lettering on the rotor housings is "mazDa Automobiles 13B"
The rear and intermediate irons are stamped "R5"...
Here's a shot of the intake/exhaust ports... pardon the rust
And the plug side... not the best picture, but I think there are what's referred to as "eyebrows" over the plugs?
Not that it affects the innards, but it runs with a Weber 48 IDA and RB long tube headers, with a lightened flywheel. Based on that, any recommendations on the best (read, cheapest) gasket set that will work since I don't need to match carb parts, and won't be using a pan gasket?
There are still crayon/chalk marks on the rear housing behind the flywheel, wonder if those are factory or a rebuilder? The tension bolts are marked with green paint...
Thanks for your help folks!
#2
Old Fart Young at Heart
iTrader: (6)
Atkins may still have a 74-78 12B gasket set, not sure if it wil be the cheapest. An SE kit can work, but will come with unneeded gaskets. If you want only internal gaskets, you can buy them individually.

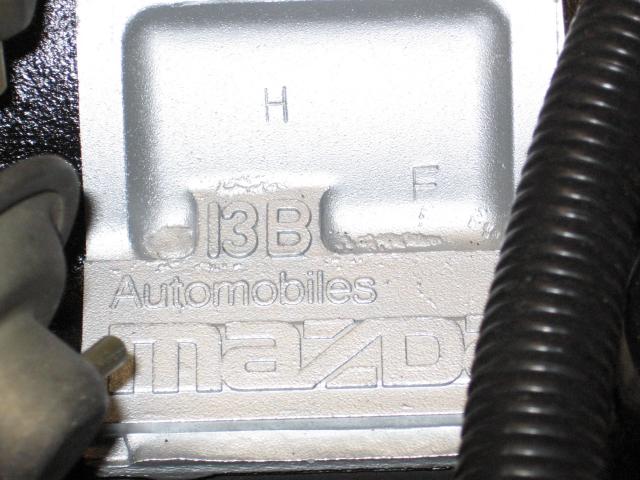

Engine looks to be a 74-78, Jeff20b can tell you much more about it. Post a pic of the logo, cleaned off.
Engine looks to be a 74-78, Jeff20b can tell you much more about it. Post a pic of the logo, cleaned off.
Trending Topics
#8
FB+FC=F-ME
Since there are signs that it was rebuilt,Im gonna put my money on it being a mutt.
Its obviously not an EFI engine,since there are no aux intake ports,and I assume that there are no injector bungs in the center iron.You can also rule out the TII 4 port 13B,since there is no knock sensor bung in the center iron,or turbo oil feed on the front iron.
What makes me think its not just a plain old 70's 13B,is that it has a rear iron with an oil pressure sender.I could be wrong,but didnt pre-81 rotaries lack an oil pressure gauge/sender.....I guess it could have been drilled/tapped.
My guess would be RX-7 12A irons with SE or 70's rotor housings.....they look like SE rotor housings.
Its obviously not an EFI engine,since there are no aux intake ports,and I assume that there are no injector bungs in the center iron.You can also rule out the TII 4 port 13B,since there is no knock sensor bung in the center iron,or turbo oil feed on the front iron.
What makes me think its not just a plain old 70's 13B,is that it has a rear iron with an oil pressure sender.I could be wrong,but didnt pre-81 rotaries lack an oil pressure gauge/sender.....I guess it could have been drilled/tapped.
My guess would be RX-7 12A irons with SE or 70's rotor housings.....they look like SE rotor housings.
#9
its supposed to do that
^ ive never seen us spec housings that said mazda automobiles, they have the casting boss, but it hasnt been cut to say automobiles on the us motors. so i would have to vote on a frankenmotor. that looks like 12a rear iron to me
isaac
isaac
#10
Enginerd
Thread Starter
Join Date: Jan 2004
Location: Pennsyltucky
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Frankenmotor... I like it!
It was in the 83 GS when I bought it... So there's a good possibility that the dizzy is from that... but the 83 had the oil cooler under the oil filter, so if the rear is from the original 83 12a it was swapped out when the original owner installed the FMOC...
Keep it comin! I'll get a better photo of the script on the casting tomorrow...
Thanks!
Dan
It was in the 83 GS when I bought it... So there's a good possibility that the dizzy is from that... but the 83 had the oil cooler under the oil filter, so if the rear is from the original 83 12a it was swapped out when the original owner installed the FMOC...
Keep it comin! I'll get a better photo of the script on the casting tomorrow...
Thanks!
Dan
#11
Former Site Sponsor
Join Date: Aug 2003
Location: Tacoma WA
Posts: 4,368
Likes: 0
Received 0 Likes
on
0 Posts
76 to 78 13-B out of a Cosmo or RX4 as thoes motors had the R5 castirons for that vintage {I am thinking pre RX7 for that info} the REPU had 3B castirons..
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
#12
sellout
iTrader: (4)
Join Date: Jan 2005
Location: Lawrence KS
Posts: 3,078
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Atkins Dan
76 to 78 13-B out of a Cosmo or RX4 as thoes motors had the R5 castirons for that vintage {I am thinking pre RX7 for that info} the REPU had 3B castirons..
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
they're not se housings. se housings dont have the reinforcements i pointed out earlier in the thread.
#15
Lives on the Forum
iTrader: (5)
The early 13b had smaller intake ports and especially smaller exhaust. I saw a pair of housings for a very early 13b that had tiny exhasut ports. If the housings turn out to be good, I would opt to get a set of 12a center & end plates and port them. Just a suggestion......
#17
Lapping = Fapping
iTrader: (13)
It looks to me like you've got a J-spec '76-'78 engine (with later opening and later closing exhaust ports). It looks like it's been sitting for a while. Hope it's not rusty on the inside.
Do yourself a favor and reach a finger inside the primary ports (intermediate plate). I've got a hunch that those ports are going to be very small. Compare them to the inside port size (timing) of the end plates.
You're better off getting a Y intermediate plate like I did for mine. Find out why in this thread. https://www.rx7club.com/forum/showthread.php?t=591879
Do yourself a favor and reach a finger inside the primary ports (intermediate plate). I've got a hunch that those ports are going to be very small. Compare them to the inside port size (timing) of the end plates.
You're better off getting a Y intermediate plate like I did for mine. Find out why in this thread. https://www.rx7club.com/forum/showthread.php?t=591879
#18
Senior Member
Join Date: Mar 2005
Location: massachusetts
Posts: 697
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Atkins Dan
76 to 78 13-B out of a Cosmo or RX4 as thoes motors had the R5 castirons for that vintage {I am thinking pre RX7 for that info} the REPU had 3B castirons..
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
as for me having all the parts to rebuild it..You bet I do!!!!
the green paint and chalk marks are from the factory....
Dan
.. green paint.. chalk lines.. I can't see them.. i need to have my eyes checked lol
#19
Enginerd
Thread Starter
Join Date: Jan 2004
Location: Pennsyltucky
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 84stock
Here's a link for you http://home.iprimus.com.au/bluey3/portsPage/ports.htm
Originally Posted by DRUNKCLEVER
.. green paint.. chalk lines.. I can't see them.. i need to have my eyes checked lol
It's a bit rusty on the outside, but I did have the forethought to coat the innards with a mix of ATF and Marvel Mystery Oil prior to parking it, and the motor turns over smoothly by hand (and I mean hand, not wrench)
#20
Enginerd
Thread Starter
Join Date: Jan 2004
Location: Pennsyltucky
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
So, you can't edit after 30 minutes huh?

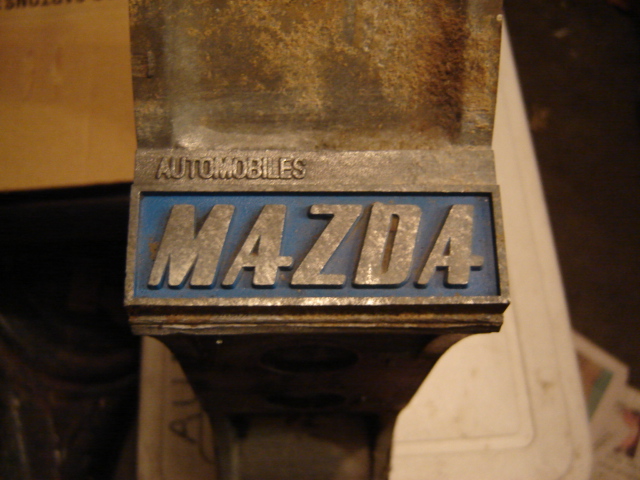

Anyway, this photo shows the script on my rotor housings... I lifted it from jeff20b's thread on fighting reversion... mine are identical.
Anyway, this photo shows the script on my rotor housings... I lifted it from jeff20b's thread on fighting reversion... mine are identical.
#23
Savanna Rx-7
those houseing look identical to a 76~78 Luce rotor houseing. if it has no egr, and small ports, chances are its from a Luce. the cosmo of the same years had larger ports. the luce was mazdas luxury roatary powered car at the time, and required less top end with a different torque curve, so they changed the timing on the ports and built it for torque vice rpm.
Or like said before, it could be a frankenmotor that someone made up from parts.
kenn
Or like said before, it could be a frankenmotor that someone made up from parts.
kenn
#24
Moderator
iTrader: (3)
Originally Posted by Jeff20B
It looks to me like you've got a J-spec '76-'78 engine (with later opening and later closing exhaust ports).
one thing is clear, this motor should be disassembled, refurbished and rebuilt with care. it deserves another lease on life.
