Moon roof rust
I nabbed a glass moon roof today (60 bucks!)and decided to replace the latching mechanism on it since it was warped and crappy, and as i was taking the screws out of it, they both snapped off! I'm trying to take the remnants of the screw out of the other end of it so i can re-use them, but i don't know if I'll get lucky enough. does anyone know where i can buy those little round deals that the screws go in so i can put my fancy new moon roof on?
02-27-11, 12:37 PM
#3
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2010
Location: oregon
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
Oh neat. I didn't even think to try those. I figured they'd be longer for some reason. I'm currently soaking the ones with the busted screws in brake fluid to try and break the rust up a bit, but i think i have some spare lift gate parts, also. I'll give them a shot. thanks
02-28-11, 10:38 AM
#5

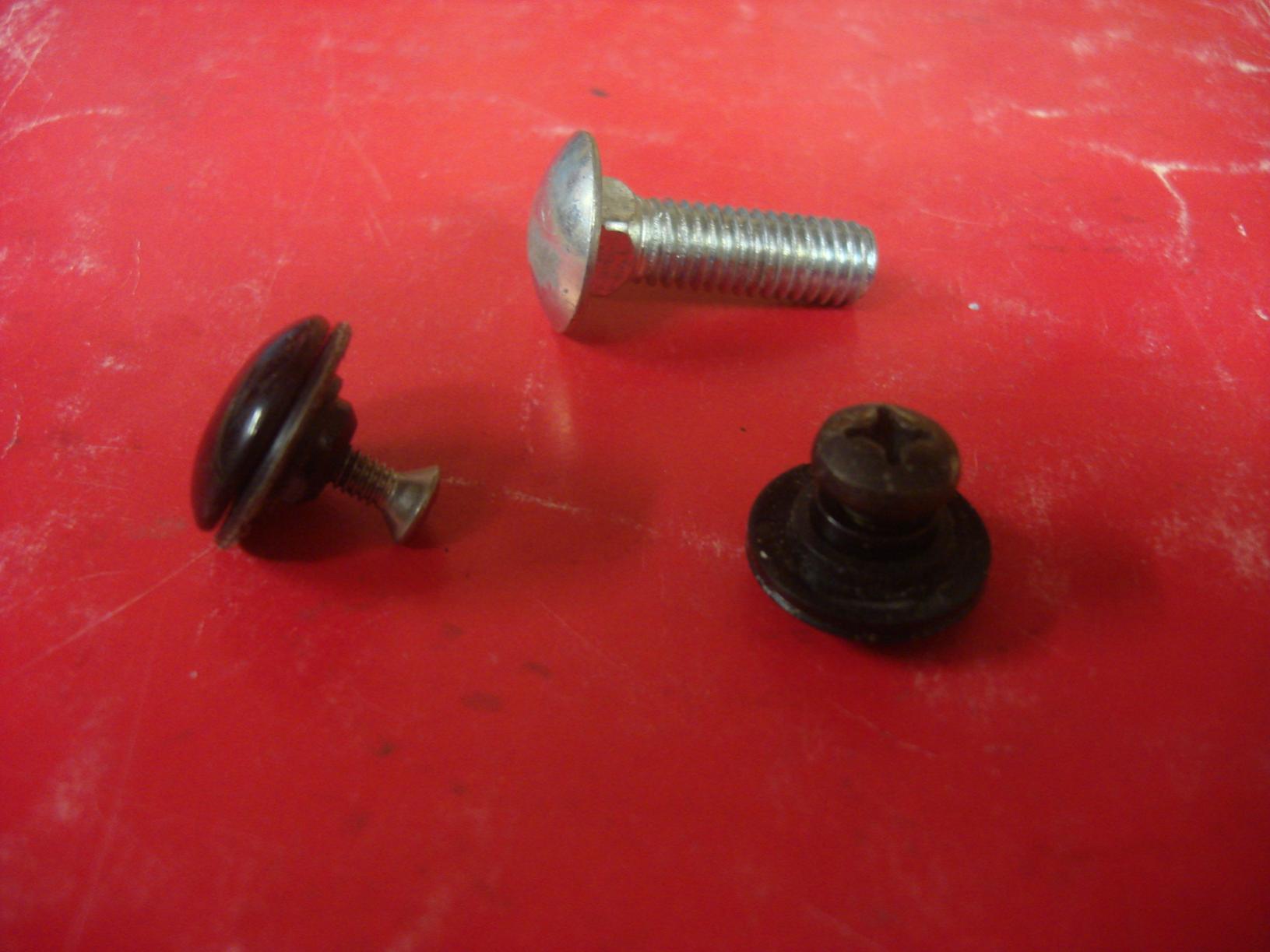

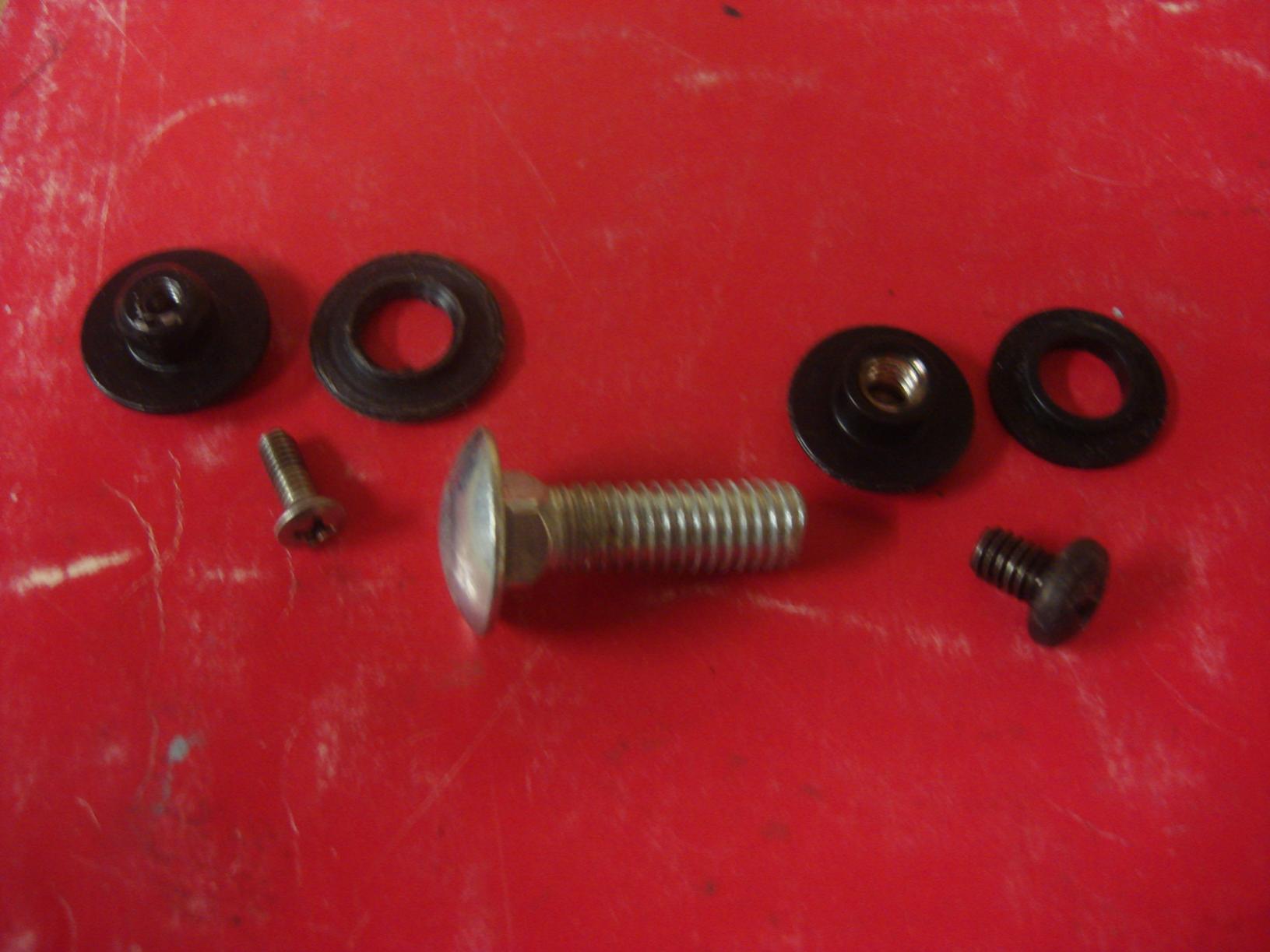

I just make new ones using 5/16 or 3/8 (can't remember right off) carriage bolts. Chuck em up in a lathe, turn em down and re-drill & tap for a new screw. You have have or know some one who has access to a lathe is all. And I guess, the know how.....
Paint em your favoriate shade of black and you can't tell the difference. If you want to go all out, you can make the plastic cushioners that go against the glass too.
Paint em your favoriate shade of black and you can't tell the difference. If you want to go all out, you can make the plastic cushioners that go against the glass too.
03-01-11, 01:18 PM
#7
DD, thats a great observation. One note of trivia, in OEM stock form, the thread size in the foward "hinge buttons" are different than the rear "latch buttons". At least on the 79 moonies. I only mention it because if if compatable buttons from a van are found, they could be american or metric depending on the doner.
