Gregs

here is my loot from the junkyard

POSSIBLE street port rebuilt 12 (this engine purrs like a kitten)


racing beat header with the engine


racing beat swaybar (im 99 percent sure)


full engine shot

Rutnick

Great FIND(s)! Beat my LSD find that nobody seems to care about.

RXRACER85

damn good find im in the process of finding me some junkyard goodies but to no avail! nada yet

Defprun

SON!!! My god...the toys...I envy you! Not everyday such a find is found...at the goddamn junkyard!

Congrats!

FD Racer

cool. how much for all that? take a picture of the exhaust ports when you get that header off to see if it is indeed ported.

1stgen4life

iTrader: (1)

what did the junkyard charge you for that? Great find.

Gregs

EVERYTHING for 145 dollars that includes tax
that inclueded the plugs wires and all the vaccum lines, carb EVERYHTING

hehe i got a steal if u ask me

Gregs

im gonna go take the header off and take pics to see if its ported, i really dont care if it is, that would just be a bonus
ill have the pics posted here shortly

FD Racer

.

FD Racer

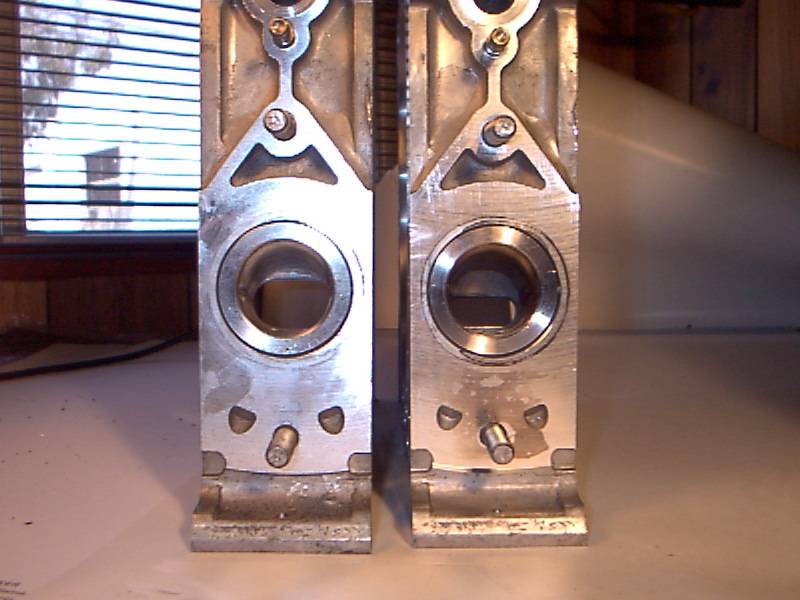

cool. Check out this pic I took as my engine was being built. The one on the left is streetported and the right one is stock.

Gregs

hmm looks a little bigger than the stockone u showed
possible mild streetport?
u be the judge

82streetracer

iTrader: (1)

ATF that thing, DAMN thats some carbon buildup.

When I pulled my 12a for the turbo swap, the rotors were clean.

Gregs

i plan on MMO'ing it a few times

Gregs

SOMEONE tell me what kind of port that is
stock, street, BIGGER?!?!

please

-greg

FD Racer

FD Racer

it looks like it has some porting

Gregs

that is evident
any idea what kind of port?

-greg

FD Racer

The picture I put up shows a port from a standard racing beat templet for a street port, which looks bigger than yours , so my best quess is that it's a mild street port, well at least the exhaust ports are...exhaust is just half the puzzle ya know?

Gregs

can i tell if the intake is ported by taking the intake manifold off?

RitcheyRch

Nice find.

FD Racer

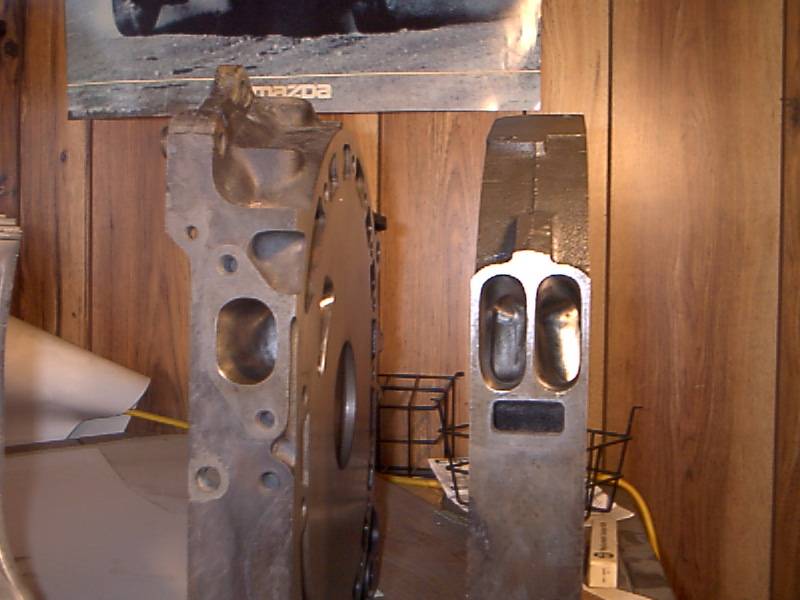

I do have an after picture of the side housings from the intake side view after porting, but the big thing with identifing ports on side housings is the size of the port on the inside surface....but if you want to pull the intake just for fun go for it:

MosesX605

That's awesome Gregs.

Directfreak

iTrader: (2)

Nice.

rotary_neubie

Hell of a find

Jeff20B

iTrader: (13)

Realy nice! Yes, your exhaust looks like it's had some porting work.

Try to reach your finger into the port and push on the apex seal. Feel how sloppy it is in its slot. Also, push something into the spark plug hole that will let you feel how gummed up the apex seals are. I've had good luck with a popsicle stick. I tried it before and after some MMO. The difference after the MMO was amazing.

Don't forget to reach inside the intake ports and try to feel if any porting has been done up there.
