I got my new igntion in the other day and i was working on it last night... well i ended up breaking the back side of it off... the part were all the wires connect into... i was wondering if anyone had a diagram on how the springs and contacts go back in or if someone had an extra or if u can buy them somewhere...



i have some great pictures...at home. I think I might have posted some of them here too, but probably not any of the wires. I'll search a little, and check tonight.

*EDIT - I posted a couple of pictures here: https://www.rx7club.com/showthread.p...ghlight=switch
But that won't help you much...I'll look tonight.

Rich

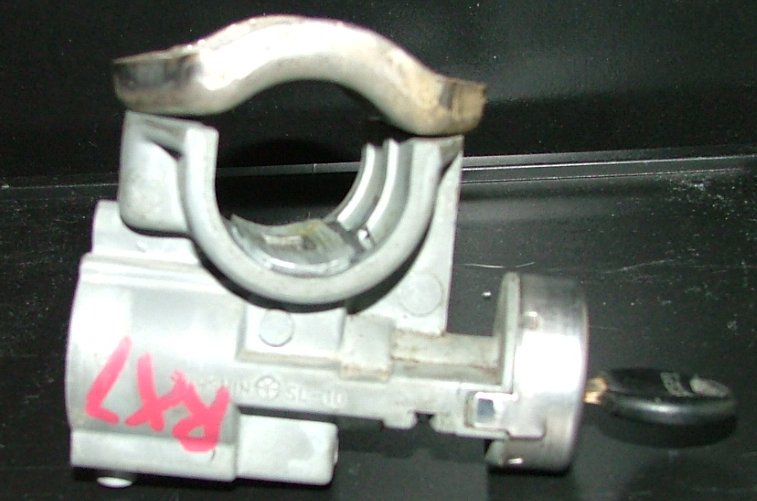

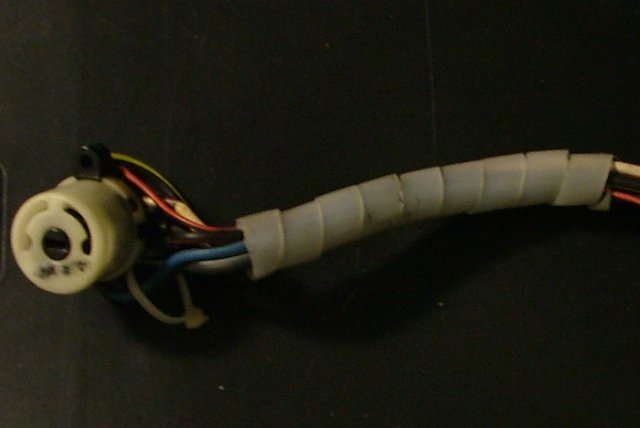

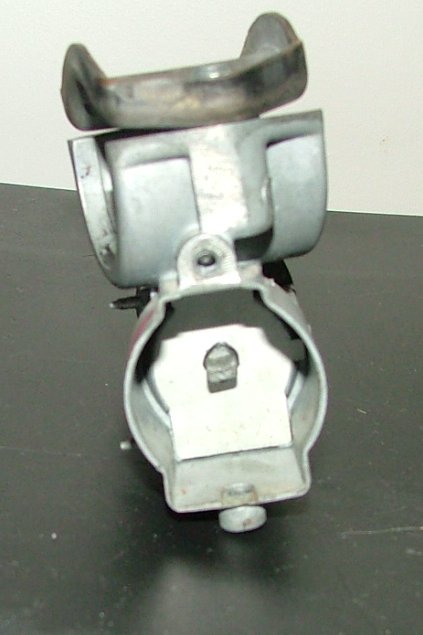

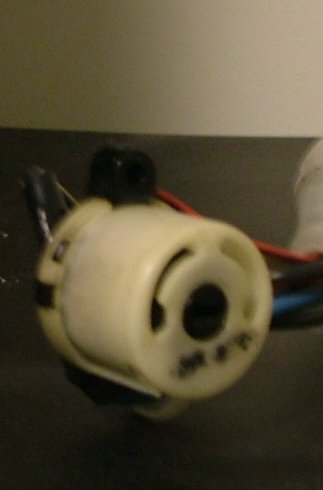

Not exactly sure what piece you broke and where it broke. So I have posted some pictures of an ignition switch and an ignition key cylinder, below.
