Rotor Nut

Does anyone have a picture or a diagram of the location ignitors on the distributer for a 1984 GSL? I have searched the forum for over an hour and I have not found a picture that is helpful.

Thanks for your help,

Rotor Nut

David Dewhurst

iTrader: (2)

On a 12A the igniters are mounted to the distributor, one at approx 9:30 with the other at approx 1:00. When you take the cap, rotor & steel cover off each igniter gas a red & green wire.

Hades12

They are the two black boxes on the distributor.

Rotor Nut

any pictures?

trochoid

iTrader: (6)

Don't need pics. There are 2 small black boxes on the outside of the dizzy housing, below the cap. Each one has a 2 wire clip plugged into the top of them. One faces forward, the other points to the alt.

Dom

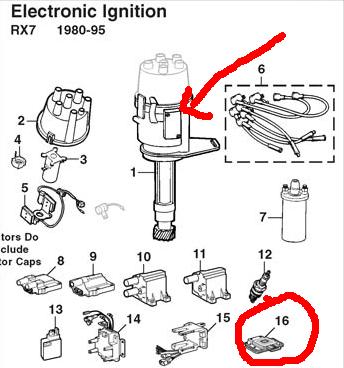

Does this help?:

Rotor Nut

Yeah it does thanks for your help

dean23

out of curiousity i looked in my engine and couldn't find wat u have the arrow pointing to... not a big deal now, but i have a feeling it wil be when i put in the 2gcdfis

Hades12

is your car a 79 or 80?

gsl-se addict

iTrader: (3)

Yeah. I think he said that he has an '80. For the '80, you have a similar thing, but they are mounted on the fender. They are a different part number (J-105 for you, J-109 for 81-85 cars), but look similar. The '79 had points instead, so there was no ignitors.

Dom

Thread jackers! Originally we were talking about an '84 GSL. That's why I put up that picture.
