Azriel_Strife

iTrader: (5)

hello.. i have an 85 RX-7 GS.. carbed.. and i cant find the idle speed screw.. i can find the idle mixture adjust.. (right in the middle on driver side of the car) and i think the idle speed screw is on the passenger side..

i know the idle speed screw is down low and out of sight.. but does anyone have a good photo? becasue im having a heck of a time finding it

any pictures would be awesome..

thanks again..

Paradox

iTrader: (1)

https://www.rx7club.com/showthread.p...hreadid=310927

g'luck

64mgb

iTrader: (1)

If I understand the manual correctly, I think it's the screw with the orange paint on it in the attached photo. By the way, I've cleaned this carb since the picture was taken ;-)

Rich

Dan_s_young

iTrader: (1)

... The manual shows my car with 2 screws one on top of each other.... Well my cars not like that lol its the same thing strife is talking about to adjust the idle ive alway adjusted it on the throttle cable

Dan_s_young

iTrader: (1)

hmmm interesting i never knew it was on the right side =) my manual says differently thanks!

Jeff20B

iTrader: (13)

The throttle cable is supposed to have some slack in it. The carb pictured is a '79-'80 type. The '81-'85 type has a single air/fuel mixture screw in the middle and a different type of idle adjust screw over by the linkage.

Jeff20B

iTrader: (13)

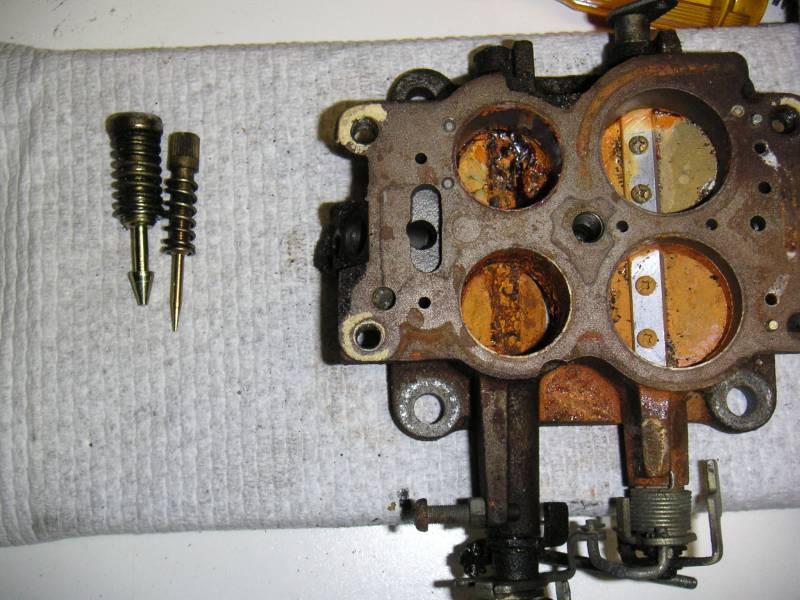

Here is a picture of a '79-'80 carb throttle body. The idle adjust screw is at the bottom center of the picture. https://www.rx7club.com/forum/attach...chmentid=84145
