So you've just pulled the Nikki out of the car for the third time since you rebuilt it and you're stumped on what went wrong this time. This might help you narrow it down a little. You can test to see if the main fuel jets are flowing fuel even if you have the carburetor sitting on your garage floor. All you need is a "stand" to set the carb on and an air compressor.

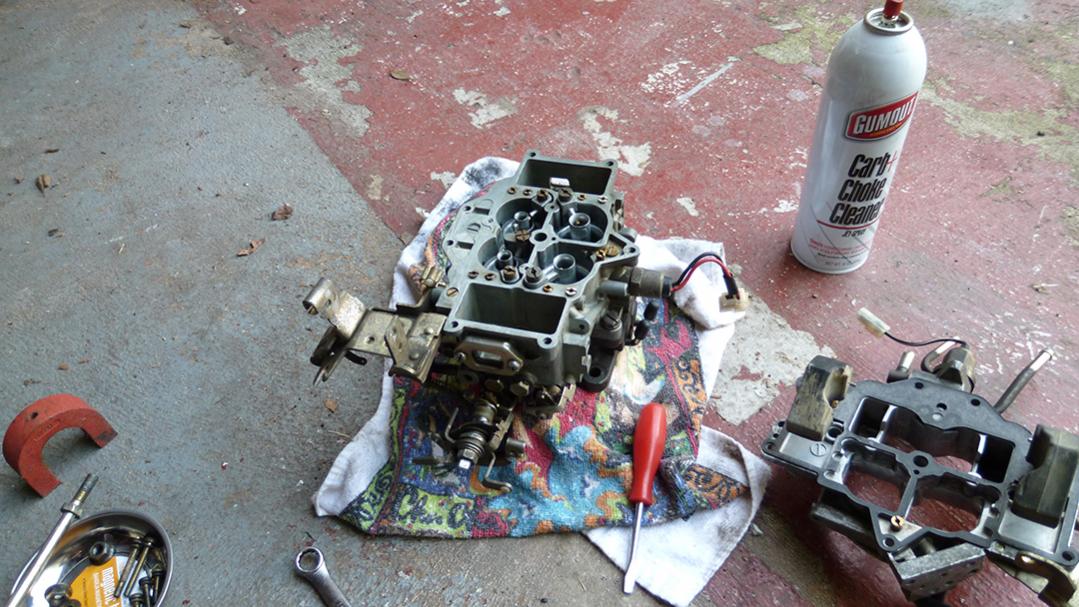

My "stand" consists of a roll of masking tape with a cloth over it. You want something that will allow the linkage to sit off of the ground, and also have clearance in the center for the butterflies to open. A couple bricks or 2X4's with a gap in the middle should work too. The cloth is there to soak up fuel that sprays through the carb. That way you don't end up with a flammable puddle on the floor.

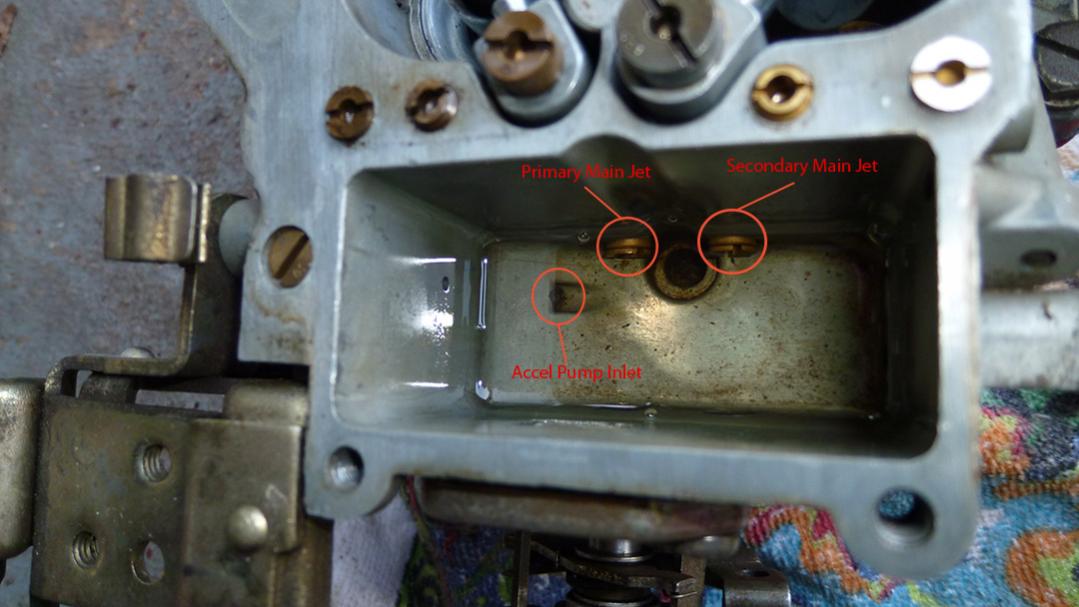

I think it's easiest to do this with the air horn off. First, fill the bowls with gas or a carb cleaner (I used Seafoam). You just need enough in there to completely submerge the main jets:

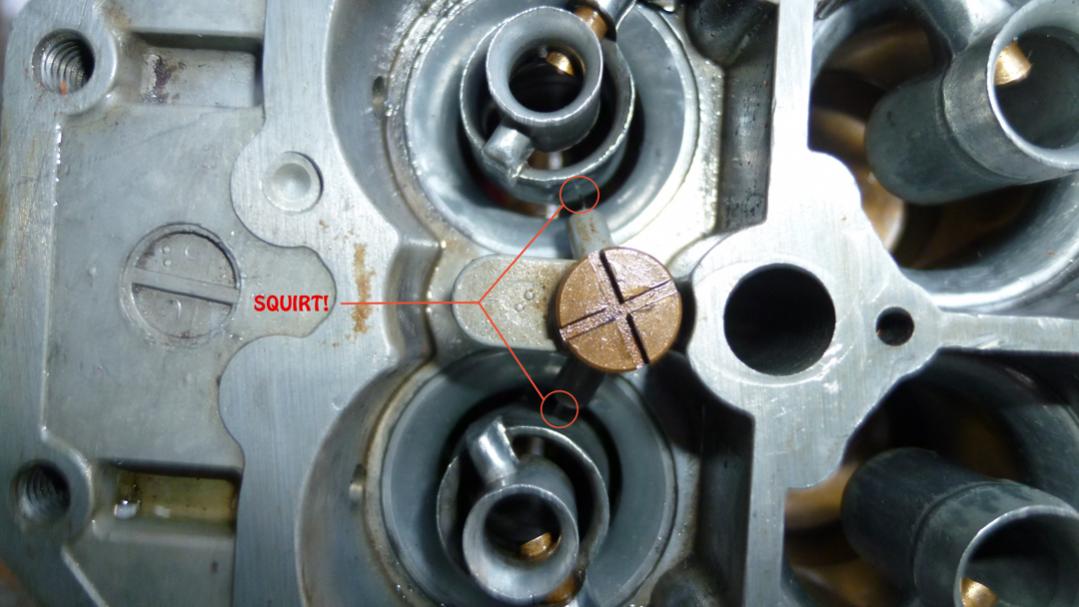

Now, check the accel pump by quickly opening the primary butterflies. You should see a stream of fuel shoot from either side of the nozzle into each primary venturi:

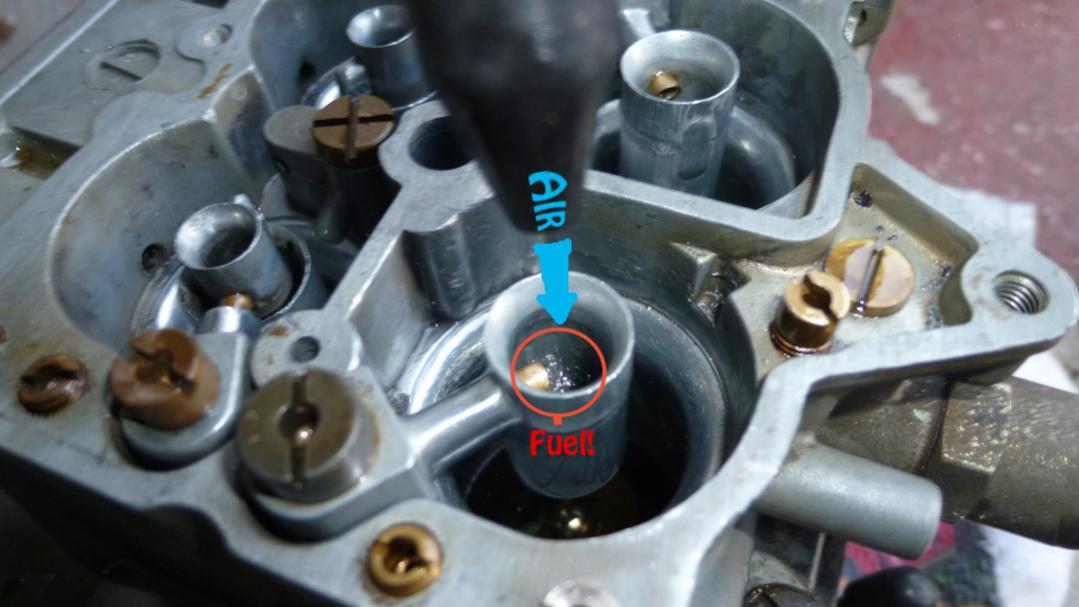

Next, hook a blow gun up to the compressor. You won't need much pressure - 10 PSI or so should do. You just want to simulate airflow through the carb. Open the primary butterflies all the way and hold them there. Aim the blow gun directly down the center of one primary venturi and spray air through it. You should see fuel spray out of the tube in the center. Repeat the test with the other primary venturi. To test the secondaries, twist the secondary shaft to open the secondary plates and repeat the procedure. You should get a sizable spray of fuel from the secondaries because of the larger jets:



If you got the accel pump and all four venturis to spray fuel, then congrats! You've proven that the fuel jets are clear and the main and transition circuits are working. This doesn't test the idle circuit, so it doesn't mean your carb will bolt up and run. It does, however, rule out clogged jets which is a root cause I see on a lot of Nikki issue threads. And you didn't have to spend all the time installing it to find out!
