How can i get this lug off?

Thread Tools

Search this Thread

Old 02-24-10, 01:50 PM
  #1
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
GA How can i get this lug off?

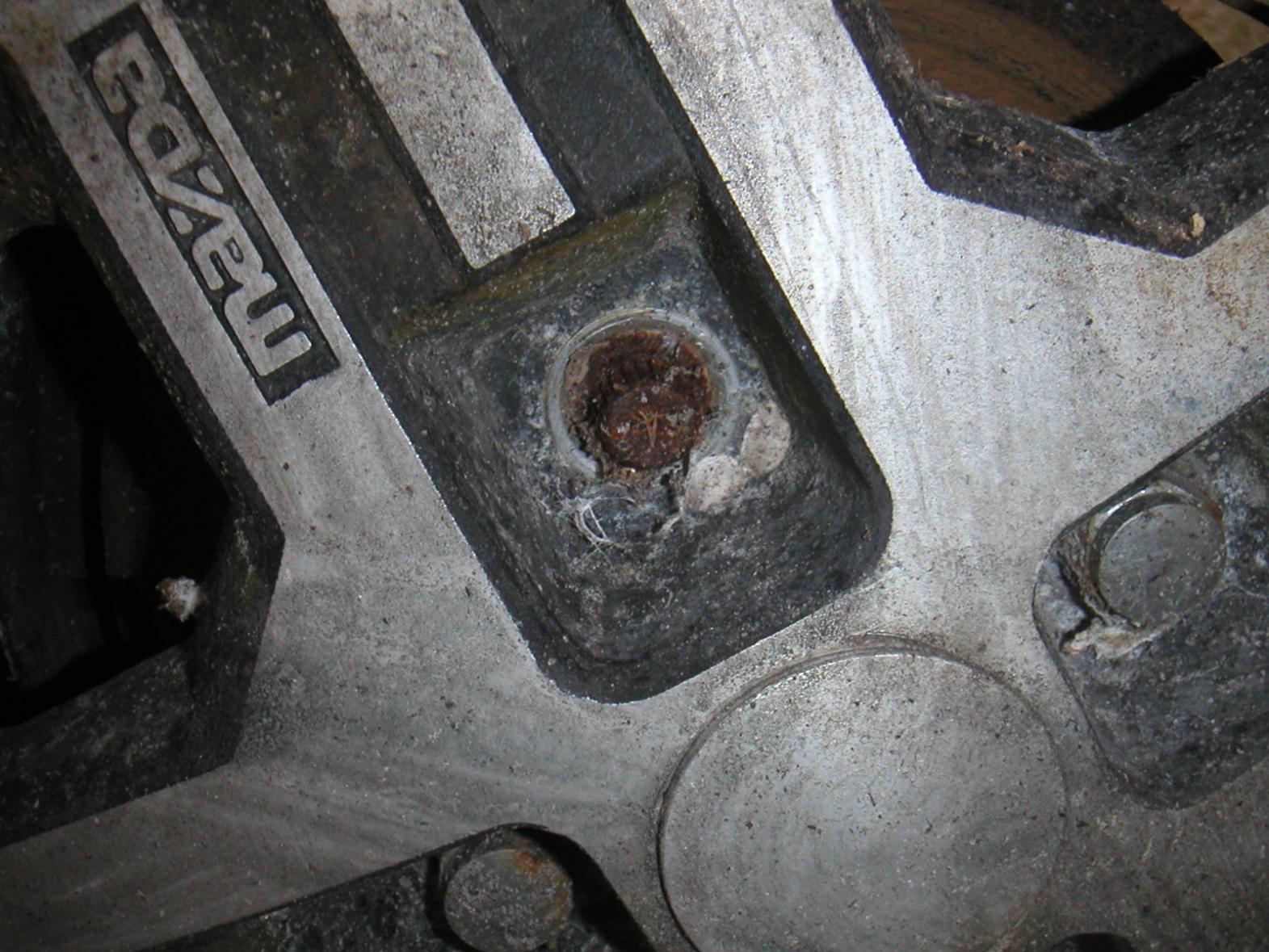

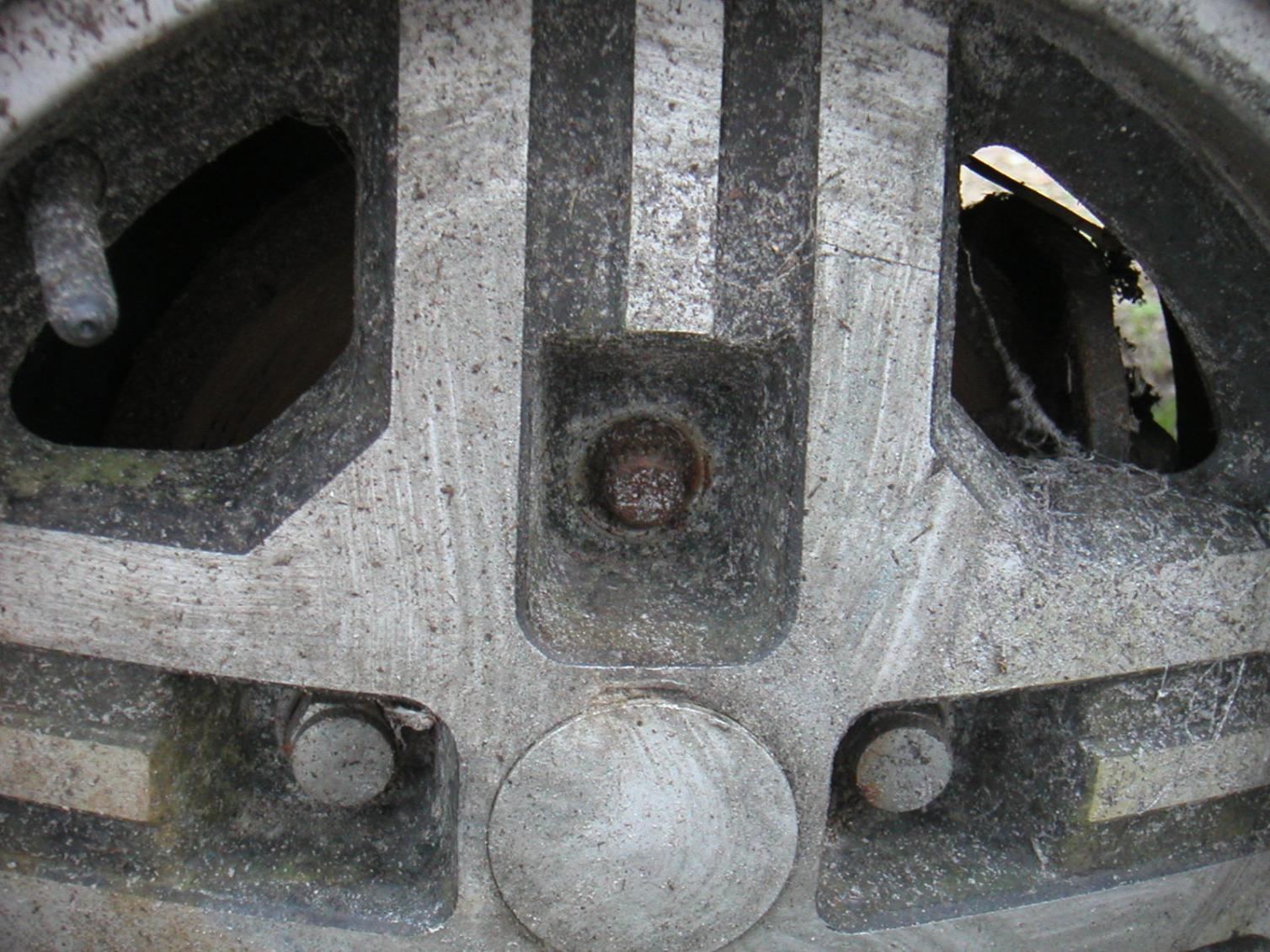

I found a 83 GSL parts car and im putting the lsd rear in my 79,but look at this lug.How can i get it off with no head on it?
Attached Thumbnails How can i get this lug off?-pict0083.jpg   How can i get this lug off?-pict0082.jpg
Old 02-24-10, 02:52 PM
  #2
Lives on the Forum


Kentetsu's Avatar

Join Date: Jun 2004
Location: Grand Rapids Michigan
Posts: 11,359
Received 14 Likes on 11 Posts
Boy, that's a toughy.

Maybe weld a nut to it, or burn it out with a torch?



.
Old 02-24-10, 03:08 PM
  #3
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
nah. this happened to me. the lugs are two pieces. the hex head is a separate piece from the bolt. i took a lug i could get off and beat it with a monkey wrench until the hex cap popped off. place the newly freed cap on that one and you're good to go.
Old 02-24-10, 03:31 PM
  #4
RAWR

iTrader: (3)

OneRotor's Avatar

Join Date: Apr 2004
Location: 90024
Posts: 3,860
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by deadphoenix52
nah. this happened to me. the lugs are two pieces. the hex head is a separate piece from the bolt. i took a lug i could get off and beat it with a monkey wrench until the hex cap popped off. place the newly freed cap on that one and you're good to go.
this.

You shouldn't have to use a "monkey" wrench. Two options: find the seam where the cap meets the body of the stud you're sacrificing, and hit it with a cold chisel. It should separate the two so you can use a vice to pop them apart. Your other option is to drill through the center of the top of the cap on your sacrificial stud. Then use a hammer and a punch, with the lug in a vice, and pound the stud portion out of the cap.

Don't forget to soak the area with AeroKroil, both around the stud, and the wheel/hub interface. It will help you break **** loose.
Old 02-24-10, 04:34 PM
  #5
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
GA

Originally Posted by deadphoenix52
nah. this happened to me. the lugs are two pieces. the hex head is a separate piece from the bolt. i took a lug i could get off and beat it with a monkey wrench until the hex cap popped off. place the newly freed cap on that one and you're good to go.
i will try that.i soaked it with pb blaster.there is 3 or 4 like this.
Old 02-24-10, 04:42 PM
  #6
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
it worked well for me. soak all of it good tho.

btw any info on the speedo cluster form your parts car? [/thread jack]
Old 02-24-10, 04:57 PM
  #7
RAWR

iTrader: (3)

OneRotor's Avatar

Join Date: Apr 2004
Location: 90024
Posts: 3,860
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by vj226966
i will try that.i soaked it with pb blaster.there is 3 or 4 like this.
find or order AeroKroil and soak it for a few days, few times per day (the more the better). That stuff, while expensive, makes PB Blaster look like Water.
Old 02-24-10, 06:53 PM
  #8
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
GA

Originally Posted by deadphoenix52
it worked well for me. soak all of it good tho.

btw any info on the speedo cluster form your parts car? [/thread jack]
yes it has one i can send you a pic if you want.
Old 02-24-10, 07:16 PM
  #9
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
that'd be cool. my speedo is broken. do you know if it works?
Old 02-24-10, 07:53 PM
  #10
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
GA

Originally Posted by deadphoenix52
that'd be cool. my speedo is broken. do you know if it works?
not sure.Car sat since 00.I would think so.
Old 02-24-10, 08:39 PM
  #11
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
hm....

i guess there's no way for you to find out either. since the car doesn't work.
Old 02-24-10, 09:01 PM
  #12
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
GA

Originally Posted by deadphoenix52
hm....

i guess there's no way for you to find out either. since the car doesn't work.
yes i guess lol let e know what you want to do
Old 02-24-10, 09:10 PM
  #13
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
would you be willing to part with it for the price of shipping?
Old 02-24-10, 09:20 PM
  #14
Stigulus Moderatorai

iTrader: (3)

Sgt Fox's Avatar

Join Date: Feb 2004
Location: Canada
Posts: 2,105
Received 24 Likes on 17 Posts
You could try pounding on a 12Pt socket onto the lug. Just make sure you don't care about the socket.
Old 02-24-10, 11:25 PM
  #15
We're All Fkd..

iTrader: (16)

AcidAngel7477's Avatar

Join Date: Nov 2005
Location: Whittier,CA
Posts: 8,722
Received 2 Likes on 2 Posts
take the wheel off..spray it with plenty of this AeroKroil they speak of then vice grip that **** off....

:AA:
Old 02-25-10, 12:26 AM
  #16
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,315
Likes: 0
Received 256 Likes on 237 Posts
to test the speedo: disconnect it from the tranny. chuck the end of that cable into a cordless drill, in reverse, and pull trigger. just don't pull the cable out of the speedo in the process.
Old 02-25-10, 05:01 AM
  #17
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by deadphoenix52
would you be willing to part with it for the price of shipping?
let me pull it out and test it and i will get back to you.
Old 02-25-10, 05:03 AM
  #18
Banned. I got OWNED!!!
Thread Starter

vj226966's Avatar

Join Date: Nov 2009
Location: Waycross Ga
Posts: 565
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by AcidAngel7477
take the wheel off..spray it with plenty of this AeroKroil they speak of then vice grip that **** off....

:AA:
i need to get lug off to get wheel off lol
Old 02-25-10, 09:58 AM
  #19
Have RX-7, will restore


iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Ohio
Posts: 21,708
Received 1,051 Likes on 891 Posts
all you need is another oem cap for the lug. i can sell you one cheap if you'd like. you just tap the cap on and you'll be as good as new. remember, the wheel bolts are all two piece. pics if you'd like.
Old 02-25-10, 10:38 AM
  #20
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by vj226966
let me pull it out and test it and i will get back to you.
cool beans
Old 02-25-10, 11:14 AM
  #21
Senior Member

iTrader: (2)

codytheoutlaw's Avatar

Join Date: Sep 2007
Location: lewisburg tennessee
Posts: 317
Likes: 0
Received 0 Likes on 0 Posts
it happened to me a long time ago. i used a cutting torch to heat the stud till it was red hot, then pounded an 8 point socket on to it. it worked pretty good, but the cap idea sounds better.
Old 02-25-10, 11:29 AM
  #22
Full Member


Join Date: May 2001
Location: Newark, NY, USA
Posts: 116
Likes: 0
Received 0 Likes on 0 Posts
1: Find a nut that can fit over the stud and weld the center.
2: Drill out the stud, and then unscrew from the hub and replace the stud.

3: not recommended but drive with the other nuts loose - it'll come off sooner or later. But then you need to repair the car and get a new rim too.
Old 02-25-10, 12:51 PM
  #23
Stigulus Moderatorai

iTrader: (3)

Sgt Fox's Avatar

Join Date: Feb 2004
Location: Canada
Posts: 2,105
Received 24 Likes on 17 Posts

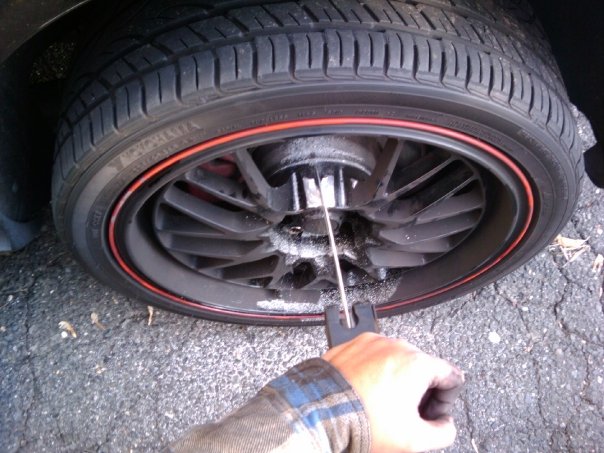

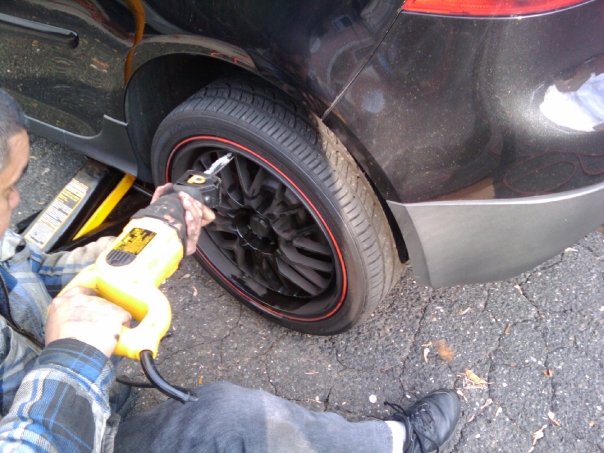

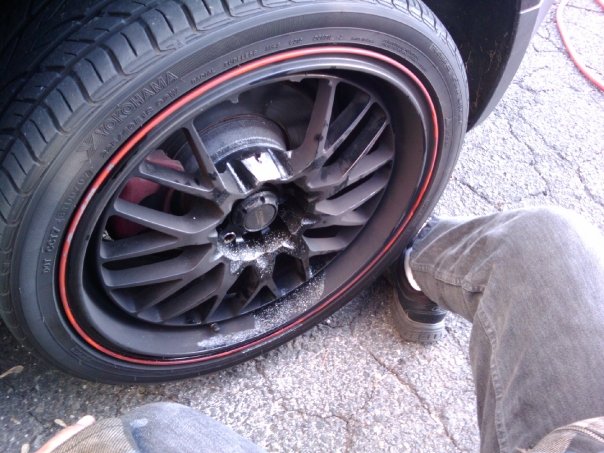

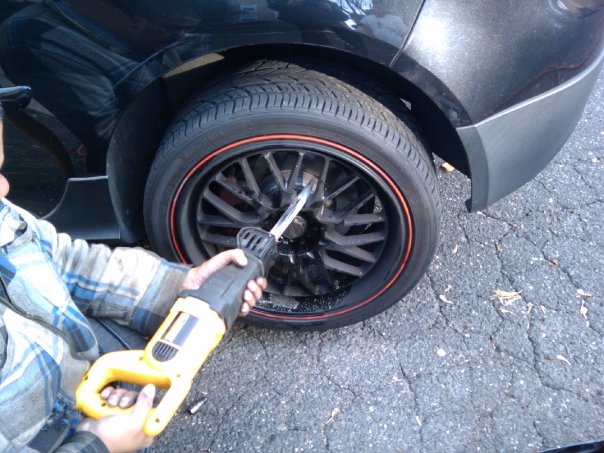

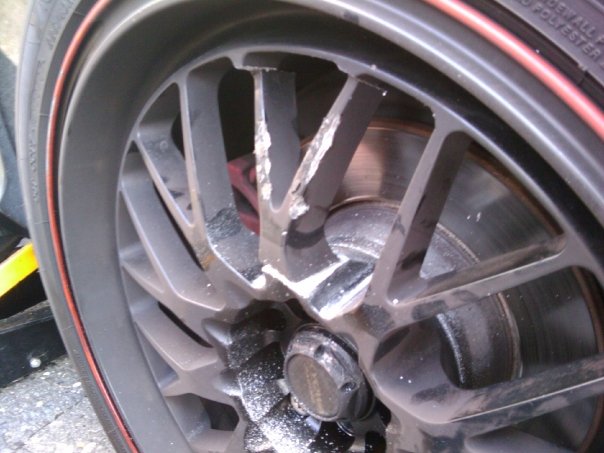

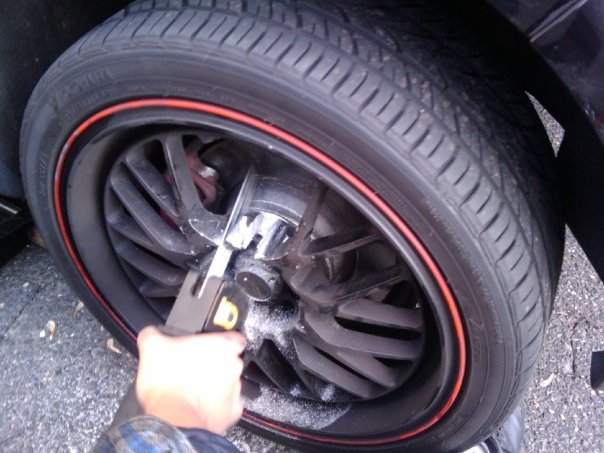

You could just do what this guy did
Attached Thumbnails How can i get this lug off?-2.jpg   How can i get this lug off?-3.jpg   How can i get this lug off?-4.jpg   How can i get this lug off?-7.jpg   How can i get this lug off?-5.jpg

How can i get this lug off?-6.jpg
Old 02-25-10, 03:23 PM
  #24
meh.
iTrader: (2)

deadphoenix52's Avatar

Join Date: Aug 2009
Location: fwb, fl
Posts: 459
Likes: 0
Received 0 Likes on 0 Posts
^-- less rotating unsprung weight! why havent i done this yet?!
