Here is my design for strut tower brace
Well i work in a machine shop adn plan on making my own strut tower brace. that will go back to firewall and then have a cross brace. i have to move it back like that to clear my custom intake i made.
here is a 3d model i drew and plan to use 3/16 or 1/4 inch plate and 1.0 tubing. you think it wil be rigid enough. thanks robert
here is a 3d model i drew and plan to use 3/16 or 1/4 inch plate and 1.0 tubing. you think it wil be rigid enough. thanks robert
#4
Senior Member
iTrader: (1)
Join Date: May 2006
Location: southern indiana
Posts: 363
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by dj55b
Having it that further back will not help as much as having it upfront like the traditional style... Custom intake? Care to share the pictures?
#5
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
heres my intake and i cant even fit 1 inch between it and the hood. so back behind has to work for me LOL sucks but you have to sacrifice some things to gain others here is my intake.
Trending Topics
#8
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
well im going to try and see how far forward i must go to clear. the straighter it is the better i know. even if i have to cut a little of the hood structure out.. i can cut it out and just weld a flat bar instead of the raised sheetmetal. im going to try and make the tower caps anyways and then worry about arranging the pipes.
i know the intake still has machine and grind marks but i should soon have cleaned up and polised then i will clear coat it to prevent oxidizing.
i know the intake still has machine and grind marks but i should soon have cleaned up and polised then i will clear coat it to prevent oxidizing.
#10
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
well i just got off the phone with sam (bad83) and talked to him about it and i ended up taking his advice some what. i cut the pipe that is welded to the intake and cut oppisite angles on the two pieces. i then found another nohub rubber connector and ducked it down a bit more. i have not check clearance yet but i think i might be able to make the brace right over the alternator or forward no more then a inch. the intake even is better it is moved closer to the headlight adn more direct in line with the headlight for better flow all around good call sam. right now its a little rough around the sawed edges but the rubber connectors cover that. i will check later for clearance but i think im good to go and straight across.
robert
robert
#11
Old Fart Young at Heart
iTrader: (6)
My internet is f...ing up today as I posted a reply earlier.
Form looks good in your design, however function is lacking. The purpose of a strut brace is to keep the tops of the strut towers from flexing in/outward. Your design does not meets that requirement. Take a look at the the strut bar I have in my wb build thread. This is the type of configuration you need.
Very nice work on the rendering btw.
https://www.rx7club.com/build-threads-293/unvieling-12a-bp-widebody-462184/
Form looks good in your design, however function is lacking. The purpose of a strut brace is to keep the tops of the strut towers from flexing in/outward. Your design does not meets that requirement. Take a look at the the strut bar I have in my wb build thread. This is the type of configuration you need.
Very nice work on the rendering btw.
https://www.rx7club.com/build-threads-293/unvieling-12a-bp-widebody-462184/
#12
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
Trochiod, i plan on redesigning it a bit tonight to make it go straight across to prevent and lateral movement. is it a must to have it tie back to the fire wall or is that just a plus. if i was to make one just straight across would i be lacking anything.
thanks for the pics of yours looks very nice.
Yeah the rendering is off a software called rhino, i use solidworks and surfcam at work but to expensive for to get it at home. i will redesign and repost tonght thanks
robert
thanks for the pics of yours looks very nice.
Yeah the rendering is off a software called rhino, i use solidworks and surfcam at work but to expensive for to get it at home. i will redesign and repost tonght thanks
robert
#13
Yeah, shutup kid.
That intake looks sweet, I should make a carb hat like that for my car....
Here's the strut tower brace I made for my car, still need to sandblast and paint it, but it works. You might want bigger plates where it bolts to the firewall, the metal is thin and flexes easy. I used one plate, uses the 4 hood latch bolts and 1 big bolt with fender washers on each end.
Here's the strut tower brace I made for my car, still need to sandblast and paint it, but it works. You might want bigger plates where it bolts to the firewall, the metal is thin and flexes easy. I used one plate, uses the 4 hood latch bolts and 1 big bolt with fender washers on each end.
#15
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
Well after adjusting the inlet on my intake i think i can clear if i move in front of the center of the strut tower abotu 6 inches, it should go right across and over the alternator. i drew up two more concepts one which will also brace off on the firewall and the other that is just a single tower brace. not sure which i will do but if i build the single bar it would be very simple to add the firewall brace at a later date. it will take a couple weeks to build complete but i will post photos once its built. thanks for the input everybody.
robert
here is the actuall model and wire frame of the combo
here is the render with just a steel finsih of the combo
here is the single version
robert
here is the actuall model and wire frame of the combo
here is the render with just a steel finsih of the combo
here is the single version
#16
Can You Wankel?
iTrader: (12)
Originally Posted by trochoid
When I installed the RE brace, I had to add reinforcing plates on the firewall also. Way to much flex there for the triangulated braces to be effective.
Would bolting a long piece of metel to the backside of the firewal that connected both points work. Or would you need to weld something on?
#18
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Hyper4mance2k

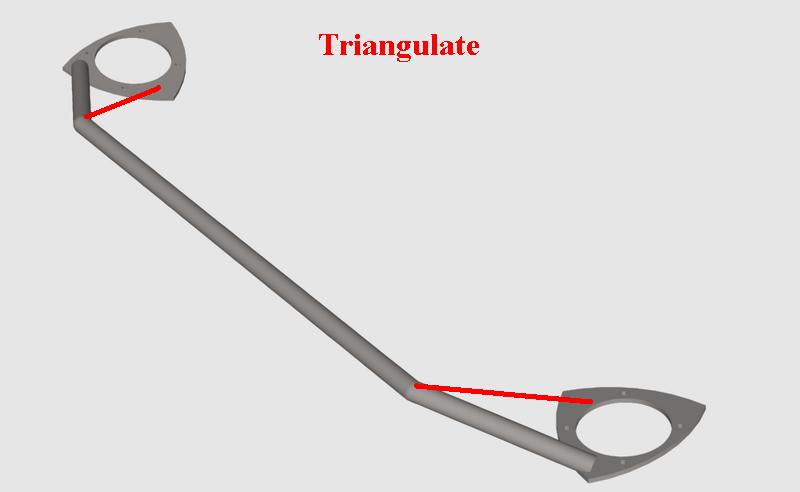

triangles kick ***!!
yeah after posting that last one i started looking at some other designs and i might add a bar right where you are pointing, idrew it in with the others but have not uploaded it yeah.
#19
Old Fart Young at Heart
iTrader: (6)
Go back an take another look at the RE one on mine. Instead of adding a return angle to the main bar, you can extend the bracket on the strut top for clearance around the alt. No need to add a full width plate on the firewall and there is too much other crap in the way to work around. The mounting plates I made were 2-3X4X1/8" and tack welded to the firewall, along with bolt through the end of the brace, plate and firewall.
You may wish to consider adding adjustability to the firewall braces too.
You may wish to consider adding adjustability to the firewall braces too.
#20
Banned. I got OWNED!!!
iTrader: (3)
Originally Posted by Hyper4mance2k
triangles kick ***!!
The other thing I wold like to see you work on is the termination of the tubes at the strut tower plates. I really like that you notched the ends where they meet up with the plates. Maybe play in that area a bit.
Looks good! keep it going.
-billy
#21
Got Rotors?
Thread Starter
iTrader: (1)
Join Date: Jul 2005
Location: Statesville, NC
Posts: 856
Likes: 0
Received 0 Likes
on
0 Posts
bwaits not sure what you mean by this ??
"The other thing I wold like to see you work on is the termination of the tubes at the strut tower plates"
the tubes have to be there??
maybe im just confused
"The other thing I wold like to see you work on is the termination of the tubes at the strut tower plates"
the tubes have to be there??
maybe im just confused
#22
add to cart
Join Date: Jun 2002
Location: Saskatoon, SK & Montreal, PQ
Posts: 4,180
Likes: 0
Received 0 Likes
on
0 Posts
CP Racing would just weld a small bit of the bottom of the tube to the plate - a solution that was at once both ugly and weak. He's cautioning you to be mindful of how the tubes connect to the base plates.
#23
autoxr/rallyxr
iTrader: (6)
The Rotary Engineering bar is good because it's straight. If you must put a bend in it, at least put a gusset in the bend. If your doing this to a rule set, make sure you're allowed to triangulate the strut bar to the firewall. In SCCA street prepared rules you are not allowed to do so.
#24
PSHH! PSHH! HEAR ME NOW?
iTrader: (3)
This is a CP racing strut bar.
If the welding gives way, it wasn't welded worth a crap to begin with, or you just hade a major accident. What you have come up with on your revised version is on the money. You really only have two options for going from tower to tower, and not having hood clearance issues. 1- right in front of the alt, or 2- right behind the alt. Hey, Rob. Why you always got to blame me for your habits? HAHAHAHAHA!!!!!
If the welding gives way, it wasn't welded worth a crap to begin with, or you just hade a major accident. What you have come up with on your revised version is on the money. You really only have two options for going from tower to tower, and not having hood clearance issues. 1- right in front of the alt, or 2- right behind the alt. Hey, Rob. Why you always got to blame me for your habits? HAHAHAHAHA!!!!!
