Help! RB StreetPort Exhaust install?
02-19-05, 06:26 PM
#1
Full Member
Thread Starter
Join Date: Jan 2003
Location: Orlando, FL
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Help! RB StreetPort Exhaust install?
I have just purchased the Racing Beat StreetPort Exhaust system for my 79. I am having a huge problem with getting the mounting locations lined up. I have a feeling that there are some mounting peices that have gone missing from my orginal exhaust as this will be the 4th time I have changed it out. Could someone post a pic of the RB exhaust system mounting points installed on their car so I can get an idea of what to do. Anything would be helpful at this point as I am going to pull out what little hair of have left. Thanks much,
Bob
Bob
02-19-05, 07:40 PM
#4
Whack 'em and stack 'em
Join Date: Mar 2003
Location: Clarksburg/Bridgeport WV- North Central Appalachia
Posts: 1,373
Likes: 0
Received 0 Likes
on
0 Posts
Should have a 'T' bracket/hangers welded on between the header and the muffler, along the pre-silencer runs, IIRC. The hooks on the end of the hangers are where the rubber doughnuts attach and stretch to mounting points (stock locations).
Should be fairly straight forward (at least it was the last time I did it, twice).
I can get a pic in the a.m., if needed.
Should be fairly straight forward (at least it was the last time I did it, twice).
I can get a pic in the a.m., if needed.
02-19-05, 08:49 PM
#7
Full Member
Thread Starter
Join Date: Jan 2003
Location: Orlando, FL
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Unfortunately mine being a SA it doesn't have the same mounts as a FB. I gathered that much from the instructions supplied by Racing Beat. Thank you though for posting the pic.
Trending Topics
02-19-05, 08:58 PM
#8
Whack 'em and stack 'em
Join Date: Mar 2003
Location: Clarksburg/Bridgeport WV- North Central Appalachia
Posts: 1,373
Likes: 0
Received 0 Likes
on
0 Posts
The exhaust system you bought has the hangers as shown, correct?
Why not run rig something up to these hangers to keep the lateral movement stable?
Also- I'd call RB and ask them the best way to mount to an SA model. I'm sure they've hit this snag before.
Why not run rig something up to these hangers to keep the lateral movement stable?
Also- I'd call RB and ask them the best way to mount to an SA model. I'm sure they've hit this snag before.
02-19-05, 09:06 PM
#9
sold the FD...kept the FB
On the streetport system you don't use those rubber doughnut looking things. there is a hanger that comes with the silencers that you bolt to the tranny.
let me go see if I can take a picture....
let me go see if I can take a picture....
02-19-05, 09:15 PM
#10
sold the FD...kept the FB

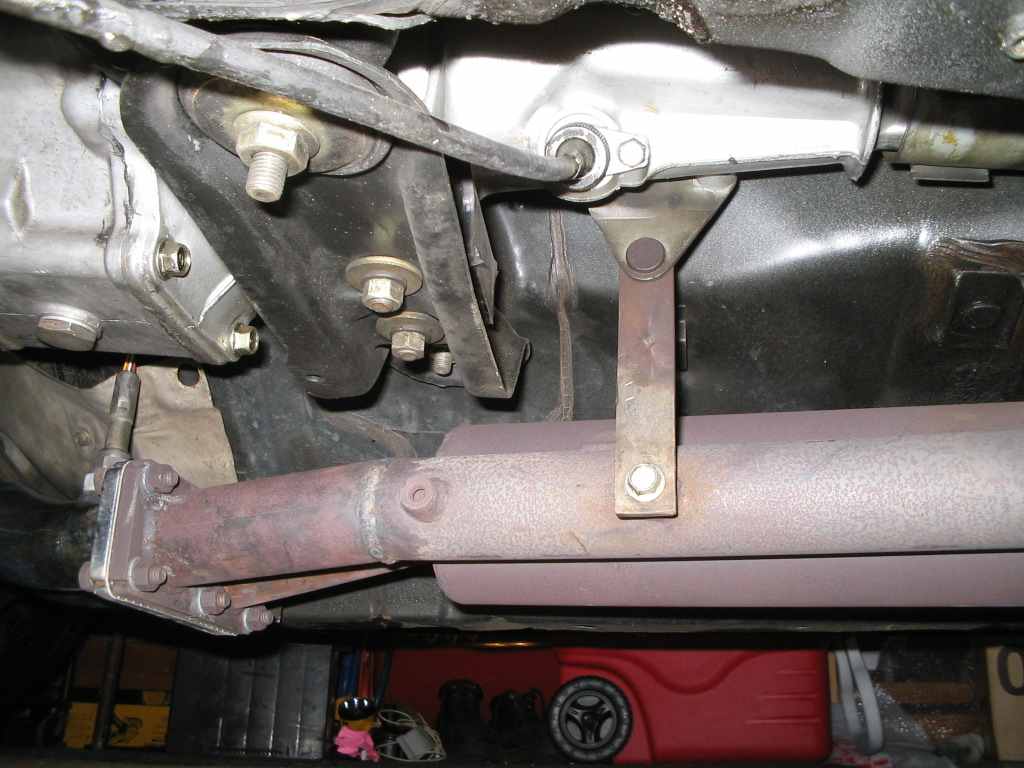

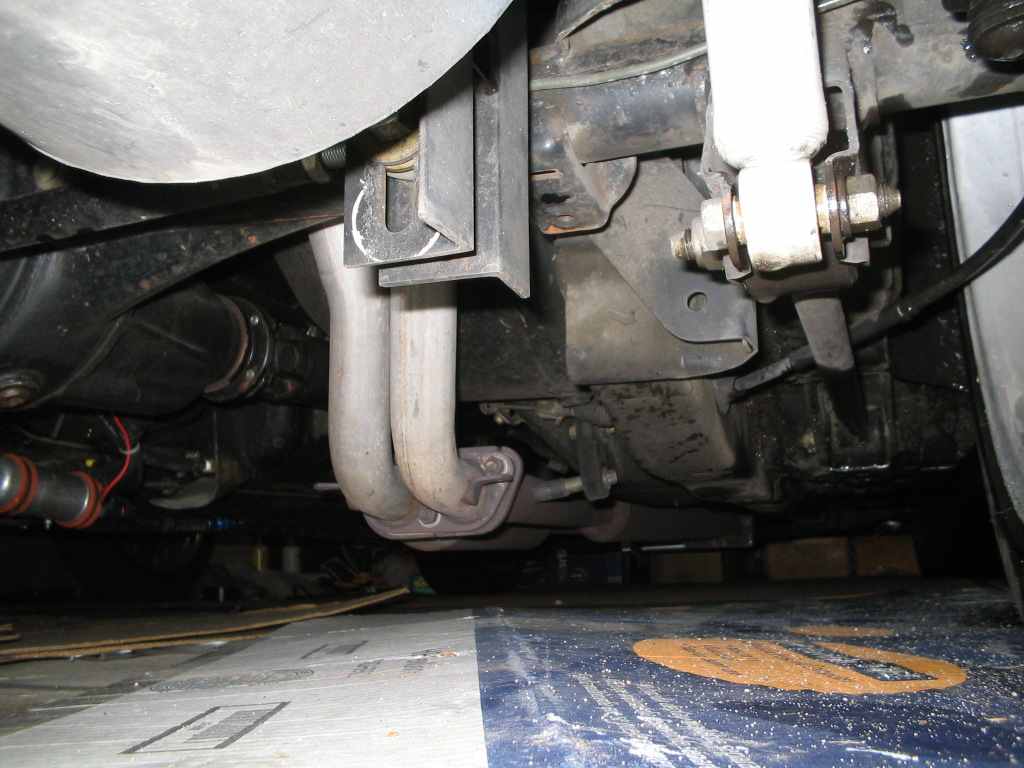

okay got some pics.
there are only two hangers on the silencer portion of the exhaust. The one on the header side is the tranny mount I mentioned. Then there is one on the rear before the muffler. Hope this helps.
there are only two hangers on the silencer portion of the exhaust. The one on the header side is the tranny mount I mentioned. Then there is one on the rear before the muffler. Hope this helps.
02-19-05, 09:28 PM
#11
Full Member
Thread Starter
Join Date: Jan 2003
Location: Orlando, FL
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Thats perfect! Thanks FDRacer. Exactly what I needed. Helps out a great deal. Now just to find that peice that mounts to the Tranny. I seem to be missing that as well as the rubber mounting peice towards the muffler. Think that Racing Beat or MazdaTrix would have thoughs. Another thing that seems to be different as the header that came with it sits a bit farther back than yours. The screw whole that they have between the presilencer and the pipe is about half way between the two bolt wholes on the body. I gather that if I get the mounting peice to the tranny it would connect to the whole on the side infront of the one you are currently connected to. I hope!
Last edited by KaiNalu; 02-19-05 at 09:34 PM. Reason: Forgot something.
02-19-05, 09:36 PM
#12
sold the FD...kept the FB
the long rectanglular piece should of came with the exhaust. The triangle-like bracket that bolts to the tranny was already on my tranny (it used to hold up the catalytic), as was the rear rubber piece....so those might be junk yard items. Maybe a forum member might have a parts car.
Do you know if 79' trannys have that bracket mounting location?
Do you know if 79' trannys have that bracket mounting location?
02-19-05, 09:52 PM
#13
Full Member
Thread Starter
Join Date: Jan 2003
Location: Orlando, FL
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
According to the instructions!? It doesn't say anything about a mount being on the tranny. Actually the kit came with a "L" Bracket and the straight one. Well I'm supposed to use the L but it doesn't show where to connect it to. The two mounting points I see on the body it doesn't reach or the angle isn't right and I don't have the 1/2" clearence they are requesting I should have. That is when this all started. Have had the system since last Monday and have yet to get anything more on than the header.
02-19-05, 09:54 PM
#14
Chad Carson
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Dan_s_young

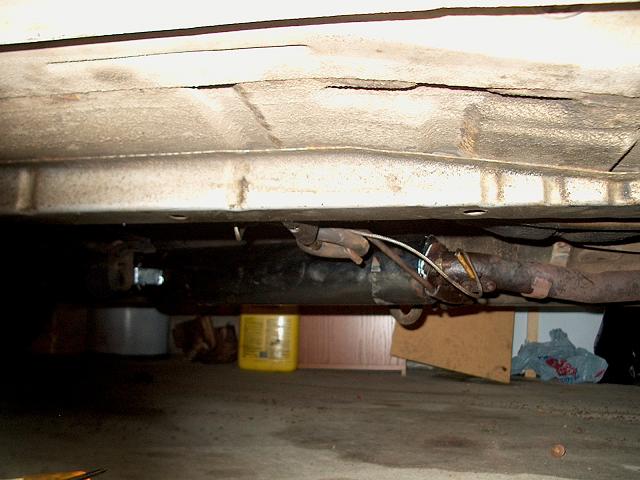

Heres a picture of just what you needed you can see the donuts and note the other solid mounting area further ahead...
That is not the streetport system.
02-19-05, 09:59 PM
#15
Chad Carson
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by FD Racer
the long rectanglular piece should of came with the exhaust. The triangle-like bracket that bolts to the tranny was already on my tranny (it used to hold up the catalytic), as was the rear rubber piece....so those might be junk yard items. Maybe a forum member might have a parts car.
Do you know if 79' trannys have that bracket mounting location?
Do you know if 79' trannys have that bracket mounting location?
On my SP system I am only using the rear mount show in his 2nd pic. Don't know if its good or bad not to have on up front or not. That front one can be made using a small piece of metal from the hard ware store (cut to size and drill two holes).
02-19-05, 10:06 PM
#16
Chad Carson
iTrader: (29)
Join Date: Nov 2001
Location: South of Nashville TN. USA
Posts: 7,010
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by KaiNalu
According to the instructions!? It doesn't say anything about a mount being on the tranny. Actually the kit came with a "L" Bracket and the straight one. Well I'm supposed to use the L but it doesn't show where to connect it to. The two mounting points I see on the body it doesn't reach or the angle isn't right and I don't have the 1/2" clearence they are requesting I should have. That is when this all started. Have had the system since last Monday and have yet to get anything more on than the header.
If push come to shove, just make you two brackets out of some metal. The local hardware or tractor supply should have long strips of metal. Cut to size and drill holes for the bolts to go in. You can bend a 90 if needed using a vise.
Or call RB but that might take a few. I would have already been mad and made some. Some times the things you make are better than the company can get you.
WAIT......... I know what is wrong! Sice it won't fit right give me the SA and start fresh with a FB. HA HA!
Man, to have another sa again.
Chad
02-19-05, 10:13 PM
#17
Full Member
Thread Starter
Join Date: Jan 2003
Location: Orlando, FL
Posts: 129
Likes: 0
Received 0 Likes
on
0 Posts
Good thought but I like the SA. Ha Ha. I like the idea of just skipping the front mount all together but I see that posing a problem for me later. I plan eventually to be about to switch out between turbo and NA. Basically I'm going to have a custom downpipe coming from the turbo to the presilencer. I think it would put too much strain on the turbo and manifold which will have 15 pounds on it already. Let along adding the 80 pounds from the presilencers. I may take your advice and go look for a custom peice from the hardware store if I can't find the parts I need in my box o parts off the car in the shed. Thanks.
