hi guys,
i'm trying to figure out what the following are. they are located behind the driver side strut tower. the one on the right i believe is the "chock and check relay". is the one on the left the "air con relay"?



and please confirm for me (to make sure i'm reading wiring diagrams right) that this is indeed the main relay:

craaaazzy

iTrader: (9)

i forgot to mention this is on a GSL-SE. thanks.

DreamInRotary

iTrader: (49)

I'll check the wiring diagram when I get home later tonight.

The relays are behind the driver's side strut tower, and the main relay is located there as well. But I don't think that picture of what you think is a main relay is correct - 12a is more boxy and so is a TII. Let me check when I get home for ya.

craaaazzy

iTrader: (9)

thanks DIR, no need. i've confirmed them by checking against the wire colors.

1st pic on the left is one of the Air Con Relays (G05 specifically)
1st pic on the right is the Choke and Check Relay (A05)
2nd pic is of the Main Relay (B33)

won't be needing to connect the 2 relays from the 1st pic.

kirkosaki

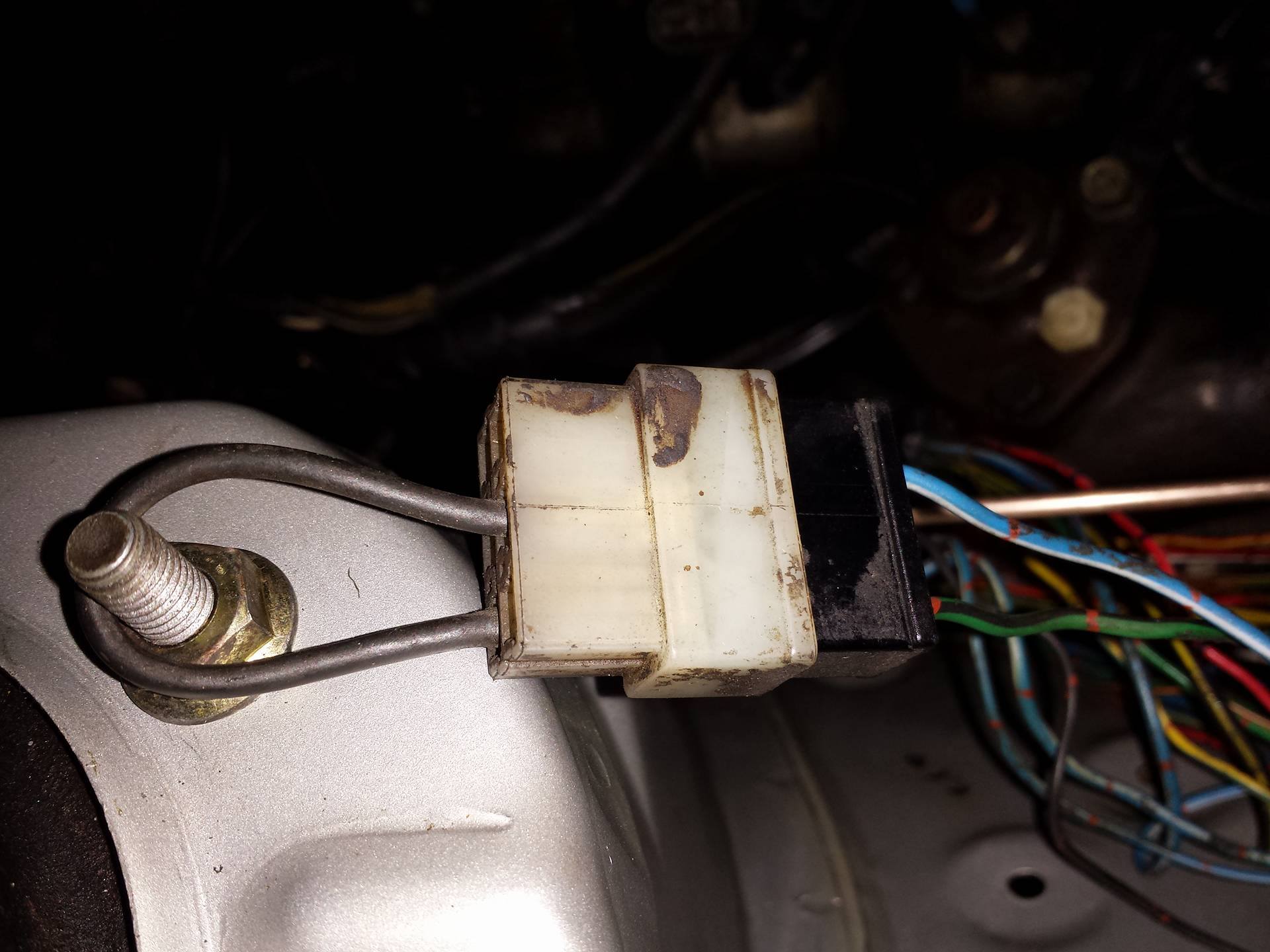

Hey. Can anyone identify these connectors. One has has three wires going to it. the one I removed was a black GND I believe. The other has three wires as well. My car is an 84 GS model. Thanks!!
I'm removing all the useless connectors and such since the car is pretty much bare bones in the engine bay.
