djessence

K so I started my rats nest removal, following the tutorial. Now granted i may have not done something of this caliber before but I am pretty mechanical so here goes.

So everything was going smoothly, removed the nest and whatnot. Then when you are splicing hoses and t's and whatnot back together i ran into troubles.


I cannot for the life of me find the carb vent, Haynes wasnt helpful, neither was FSM. I am refering to the step where you connect The oil filler tube vent to the carb vent and t them to the "bottom of the valve"

So, Where is the carb vent and what are they refering to for the bottom of the vent.

Thats Question 1
Question 2.
I have an idea but i want someone to reinforce it. I have an 85 GSL but the a/c was removed so hooking up the ac solenoid and other vacuum hoses seems pointless. I can just cap the 2 hoses right...?


Please gimme an idea, went through a couple threads from searching but didnt really help me out

Thanks in advance
Jesse

trochoid

iTrader: (6)

Vent is just below the fuel hose inlets, don't confuse it with the sub-zero assist barb. If you're doing the full removal, the ac solenoids should be gone along with the rack, cap everything that's not in use.

djessence

Thanks trochoid. ill take a look on saturday and get it done.

Flight Doc89

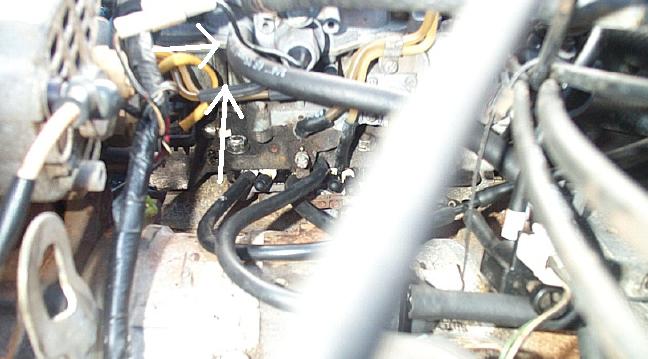

big fitting just under and behind fuel return fitting, i believe. stand at the left front wheel, from that perspective it points towards you from left side (front of car).

EDIT: attachment: this one, yes? somebody confirm please

djessence

K so i think i mis read something so to double check

I run the small ones on the purge valve, thats not problem.

then i run the one from the oil filler pipe and the one shown in the picture and T them into the purge valve big opening?

I had taken them as 2 steps. thus why i was like wtf am i doing wrong. that makes so much more sense. i will retake a look sunday morn

thanks again

trochoid

iTrader: (6)

Flight Doc, that's it. The hose to the left of the fuel cut solenoid attaches.
