GSLSE rear caliper pistons

ok. i know ive seen threads about this before but i cant find them now. im trying to get my GSLSE rear calipers pistions in so my pads willl fit over my rotors. how od i do so? do i need to buy that brake caliper tool thats a little box? thanks
Old 06-23-06, 06:30 PM
  #2
Go Hawks!

iTrader: (1)

64mgb's Avatar

Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes on 0 Posts
You can borrow the tool from AutoZone. The piston actually threads into an adjusting screw for the parking brake mechanism.

Rich
Old 06-23-06, 07:33 PM
  #3
Full Member


Buffumguy1's Avatar

Join Date: Jan 2006
Location: Wichita, KS
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
Yep, I bought one of those tools, like $15.00 for future use. Took 5 min each caliper to turn the piston into the new pad position.
Old 06-24-06, 01:55 AM
  #4
84SE-EGI helpy-helperton


LongDuck's Avatar

Join Date: Oct 2002
Location: Phoenix, AZ
Posts: 3,314
Received 359 Likes on 250 Posts
If you're really skilled, or motivated, you can use a pair of needle nose pliers spread apart to fit into the notches on the caliper piston face, and then put a screwdriver across the legs of the pliers to get enough leverage to turn them in.

They will screw in the correct threaded direction that you'd expect - no tricks there.

Having the right tool is one that will get thrown in your toolbox and pulled out from time to time, so it's good to have, and not very expensive. HTH,
Old 06-24-06, 01:59 AM
  #5
Old Fart Young at Heart

iTrader: (6)

trochoid's Avatar

Join Date: Apr 2004
Location: St Joe MO
Posts: 15,145
Likes: 0
Received 7 Likes on 7 Posts
I have a set of extra long needle nose pliers. One of them is bent at 90*, works.
Old 06-24-06, 09:24 AM
  #6
Say hello to Mr.Wankel

Thread Starter
iTrader: (7)

dbragg's Avatar

Join Date: Nov 2004
Location: Cartersville, Ga
Posts: 5,962
Likes: 0
Received 1 Like on 1 Post
ill just buy the tool today when i go get belts and other such things i need to finally try to start my car up today

also, on the back of the hawk pads theres a little nub. it seems as though itll get caught in the caliper as the calipers turns out. i dont see how this wont be a problem, input?
Old 06-24-06, 07:31 PM
  #7
Go Hawks!

iTrader: (1)

64mgb's Avatar

Join Date: May 2004
Location: Cedar Rapids, Iowa
Posts: 1,933
Likes: 0
Received 0 Likes on 0 Posts

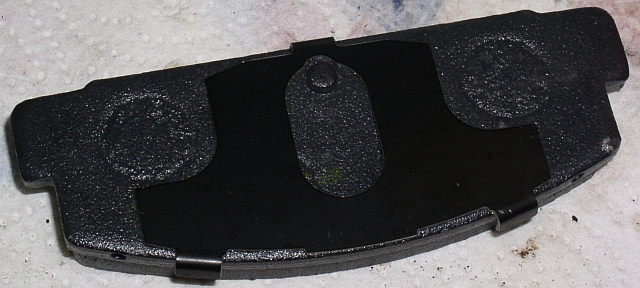

I went out and took a picture of mine because I didn't remeber that tab, but it's there. I think it's there to locate the shim on the back, so apparently it is above where the piston makes contact.

Rich
Attached Thumbnails GSLSE rear caliper pistons-20060624_001a.jpg
