Griffen Aluminum radiator install
Installed my griffin aluminum radiator today.. Came out pretty good.. I need to know who has installed this? I have one question.. The lower hose on the radiator is 1-3/4" and my TII water pump housing lower outlet is 1-12" what hose can I use? Do they make them with diff ends? Just wondering..
#2
Yes you can get them with two different ends. I came across a few when I was trying to get one that fit my application. They are not as common but they are out there. You might have to search a few auto stores to get the right one.
#6
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts

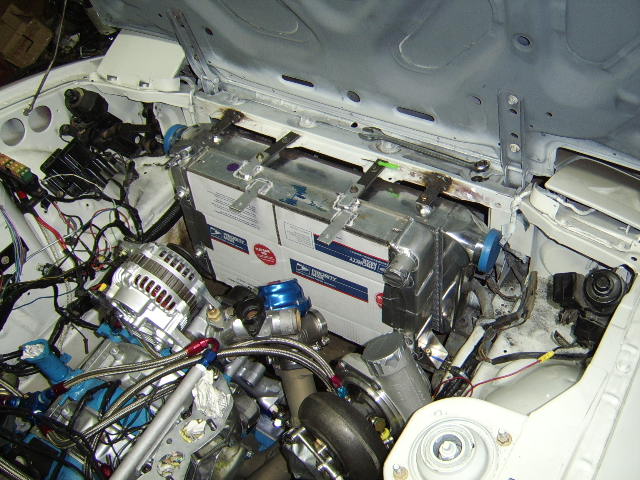

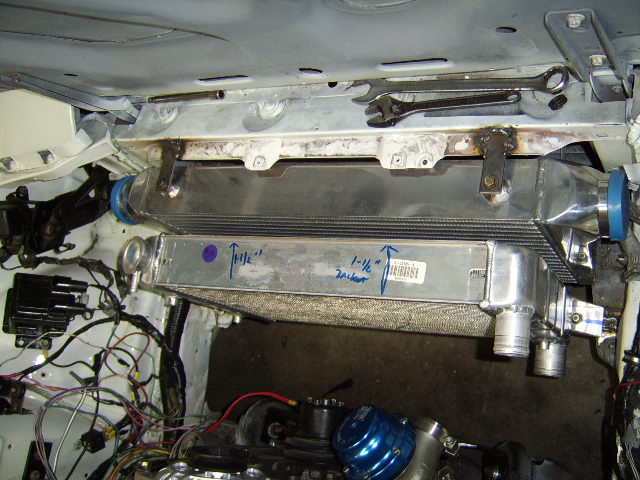

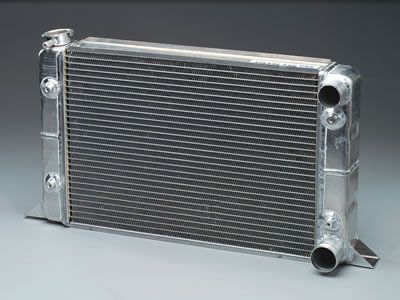

This is the link to summitt.. The install went prett good. Had to tig weld some brackets for the top mounting..
http://store.summitracing.com/partde...5&autoview=sku
http://store.summitracing.com/partde...5&autoview=sku
Last edited by gonzz; 05-04-06 at 11:01 AM.
Trending Topics
#9
Senior Member
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Great Setup!
I just drove 1700 Miles with my new Rad and Factory Thermo-Water Pump & Everthing else including Hoses w/Redline WaterWetter-Distilled Water and 50\50 AntiFreeze, for some reason I hit Temps up to 195% ???
Nordskog Digital Gauge.
Before the Change Out Temps never hit above 182%???? Thats even at driving with outside temps being in the 95-110% area.
This trip never hit above 65% outside Temp.
Still using the Fan Clutch Set-Up. I took a spare Fan Clutch with me on this trip and at Half way through changed it out with the same Temps had the same results.
Maybe time to change to a 1500-1650CFM i.e. 15-16" Electric Fan.
AnyHow to get to the point is there any benifit to go from the Factory Rad to Aluminum?
I'm runnning the 3 Row design for the Under Oil Cooler in my 84GSL
another word a 79-82 Radiator.
Why is it that after all this money and upgrades did my Temp Go Up?
Any Idea to what is going on here.
This is a StreetPorted-BridgePorted RB/Prepped Holley-SP Exhaust Pinnaple Racing Prepped 12A Motor w/-many many other Goodies.

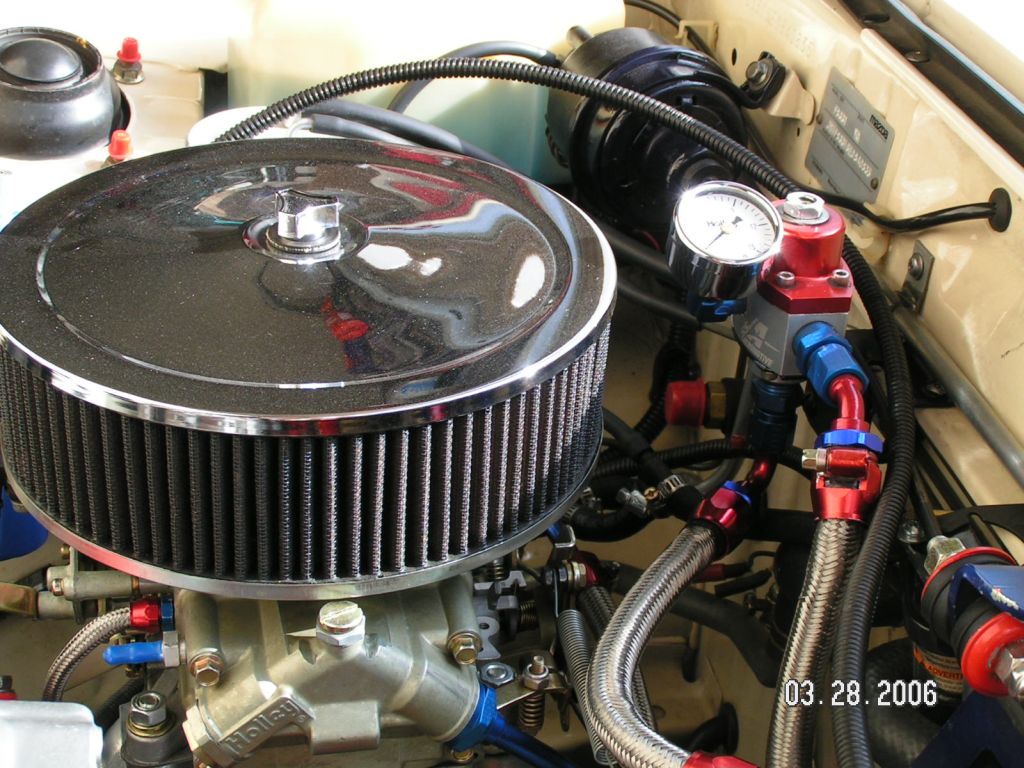

Good Choice on the Fuel Reg.
sgieldon
steve
I just drove 1700 Miles with my new Rad and Factory Thermo-Water Pump & Everthing else including Hoses w/Redline WaterWetter-Distilled Water and 50\50 AntiFreeze, for some reason I hit Temps up to 195% ???
Nordskog Digital Gauge.
Before the Change Out Temps never hit above 182%???? Thats even at driving with outside temps being in the 95-110% area.
This trip never hit above 65% outside Temp.
Still using the Fan Clutch Set-Up. I took a spare Fan Clutch with me on this trip and at Half way through changed it out with the same Temps had the same results.
Maybe time to change to a 1500-1650CFM i.e. 15-16" Electric Fan.
AnyHow to get to the point is there any benifit to go from the Factory Rad to Aluminum?
I'm runnning the 3 Row design for the Under Oil Cooler in my 84GSL
another word a 79-82 Radiator.
Why is it that after all this money and upgrades did my Temp Go Up?
Any Idea to what is going on here.
This is a StreetPorted-BridgePorted RB/Prepped Holley-SP Exhaust Pinnaple Racing Prepped 12A Motor w/-many many other Goodies.
Good Choice on the Fuel Reg.
sgieldon
steve
#10
I don't know what cars have them but they should have what you need. You can always take some flex tubing and bend in the shape that you need then take that tube to the store and match the closest one to it.
#12
Senior Member
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Gonzz;
When you get everything setup any running could you PM me to how Installed the Radiator and what parts needed to Run This Setup.
Are you going with a Electric Fan or are you going to use the Fan-Clutch.
Have Fun
Steve
When you get everything setup any running could you PM me to how Installed the Radiator and what parts needed to Run This Setup.
Are you going with a Electric Fan or are you going to use the Fan-Clutch.
Have Fun
Steve
#13
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sgieldon
Gonzz;
When you get everything setup any running could you PM me to how Installed the Radiator and what parts needed to Run This Setup.
Are you going with a Electric Fan or are you going to use the Fan-Clutch.
Have Fun
Steve
When you get everything setup any running could you PM me to how Installed the Radiator and what parts needed to Run This Setup.
Are you going with a Electric Fan or are you going to use the Fan-Clutch.
Have Fun
Steve
#14
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts

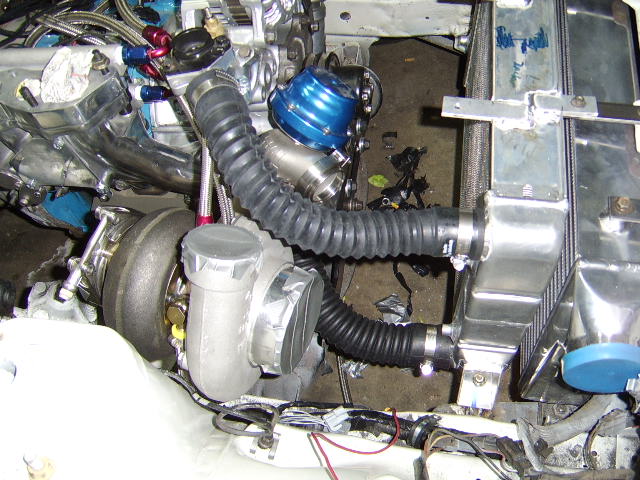

Update.. I finally got both hoses. I bought one and tried to make it work and wasted 17.00.. Decided to go to Napa this time and they had a book to look up the exact size I needed.. 7.50 ea.. Will install them in the moring and snap some pics.. Ended up getting 2 flex hoses with coils in them. 14" long
#16
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts

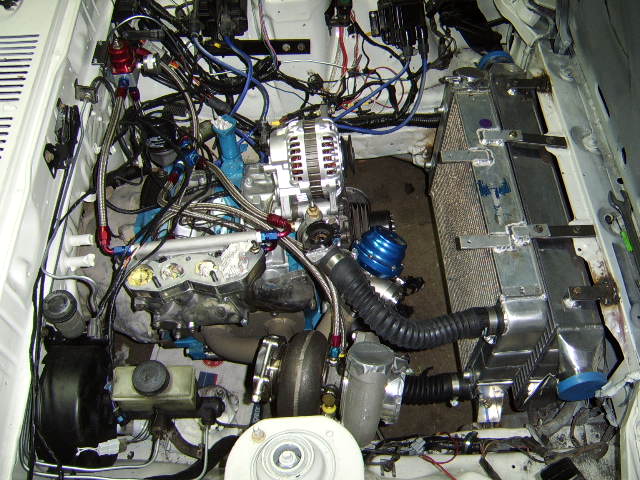

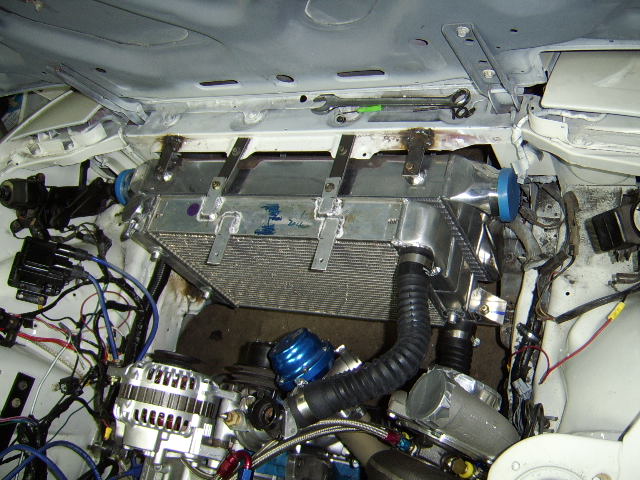

Finally done. Install was pretty easy. I welded in some steel for the botom mount and had four mounts tigged on top. Two of the rear mounts on top support the radiator and the forward two mounts will support the top of my E-fan.
#17
Nigga stole my bike!
Join Date: Oct 2002
Location: Des Allemands, Louisiana
Posts: 1,154
Likes: 0
Received 0 Likes
on
0 Posts
What are you doing for oil cooling? I don't see a beehive nor a FMOC.....
Is the rad so thick that you just can't see the FMOC under it? If you are running a FMOC, did you have to make custom brackets to mount it?
Is the rad so thick that you just can't see the FMOC under it? If you are running a FMOC, did you have to make custom brackets to mount it?
#18
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by clean85owner
What are you doing for oil cooling? I don't see a beehive nor a FMOC.....
Is the rad so thick that you just can't see the FMOC under it? If you are running a FMOC, did you have to make custom brackets to mount it?
Is the rad so thick that you just can't see the FMOC under it? If you are running a FMOC, did you have to make custom brackets to mount it?
