BTW,
The 2nd gen block is spoken for, and so is the second one, once I find it.

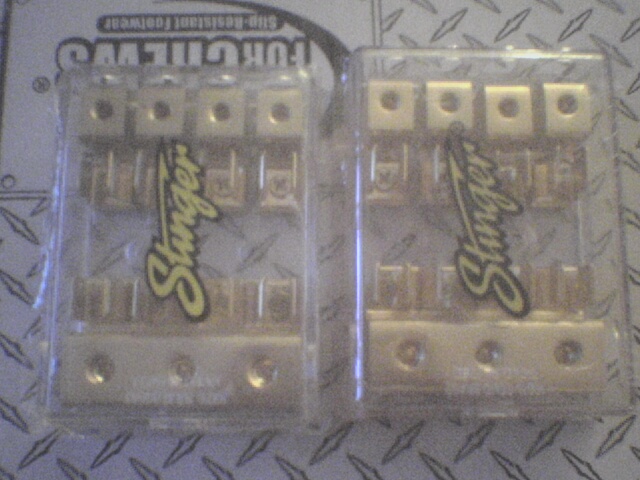

The aftermaket blocks are gold-plated, solid brass, and quite heavy.
They look to able to take a 2 guage input wire in any of 3 locations, and about a 6 guage output. They use standard LARGE size tube-style fuses (which are available in nice high amp-ratings)
I have an -SE so I need 5 fuses for the stock wiring. I'm going to need at least one more for the stereo/computer set-up I have planned, one for the amps... and probably one more for an alarm...
The 2nd gen block is spoken for, and so is the second one, once I find it.
The aftermaket blocks are gold-plated, solid brass, and quite heavy.
They look to able to take a 2 guage input wire in any of 3 locations, and about a 6 guage output. They use standard LARGE size tube-style fuses (which are available in nice high amp-ratings)
I have an -SE so I need 5 fuses for the stock wiring. I'm going to need at least one more for the stereo/computer set-up I have planned, one for the amps... and probably one more for an alarm...
#29
8krpm is not enough
If anyone has a FC or 323 fuse box they're willing to part with PM me, I'd be quite grateful. I've got 2 "ghetto rigged" fusable links that I cobbled together with spade terminals and fusable links from Pep Boys, but I'd much rather get the conversion over with during the "spring tuneup".
--matt
--matt
#30
RicanRider
Originally Posted by smnc
I actually have a 2nd gen fuse block if anyone wants. I was going to use it, but decided on the aftemarket one instead...
Can you post pic's and details on the aftermarket one...
thanks
#32
Senior Member
Join Date: Oct 2002
Location: Eugene, Oregon
Posts: 501
Likes: 0
Received 0 Likes
on
0 Posts
Painlesswiring.com
Order there Free Catalog and go Nut's!!!
I bought there 7 Wire WeatherProof Fuse Block=3 Hot and 4 Ignition Out.
1 Hot in and 1 Ign in and that's all you will ever need for Future Expansion.
SummitRacing @ $57.98US
sgieldon
steve
I also bought there Fuel Pump Relay Kit and rewired it to my Mallory 110. The kit came with enough wire so I only had to make one splice directly into the Fuel Pump.
No more up and down fuel pressure going to the RB Holley.
Order there Free Catalog and go Nut's!!!
I bought there 7 Wire WeatherProof Fuse Block=3 Hot and 4 Ignition Out.
1 Hot in and 1 Ign in and that's all you will ever need for Future Expansion.
SummitRacing @ $57.98US
sgieldon
steve
I also bought there Fuel Pump Relay Kit and rewired it to my Mallory 110. The kit came with enough wire so I only had to make one splice directly into the Fuel Pump.
No more up and down fuel pressure going to the RB Holley.
#33
Turbo widebody FB
iTrader: (1)

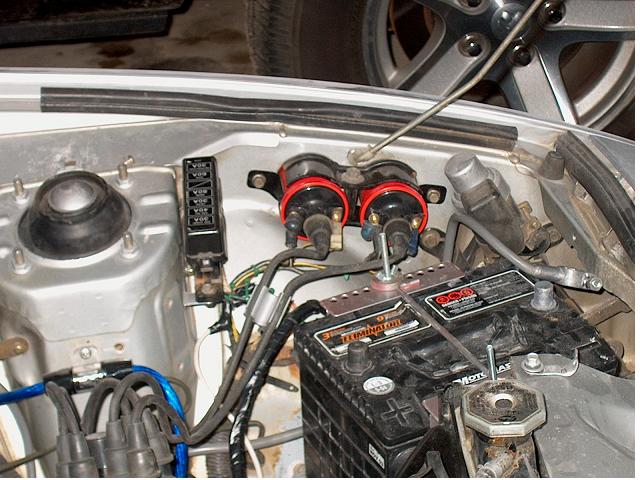

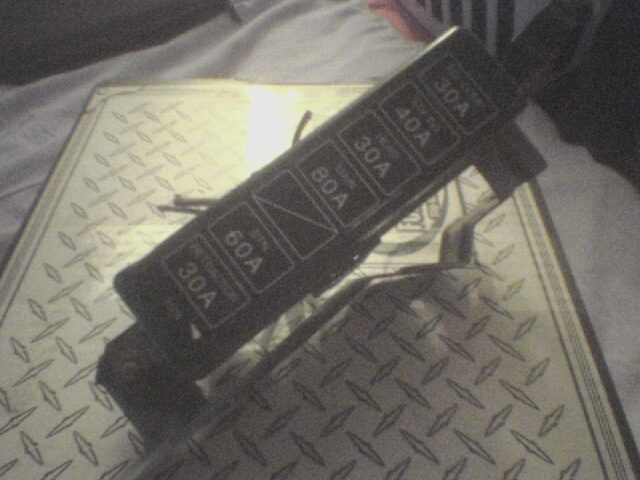

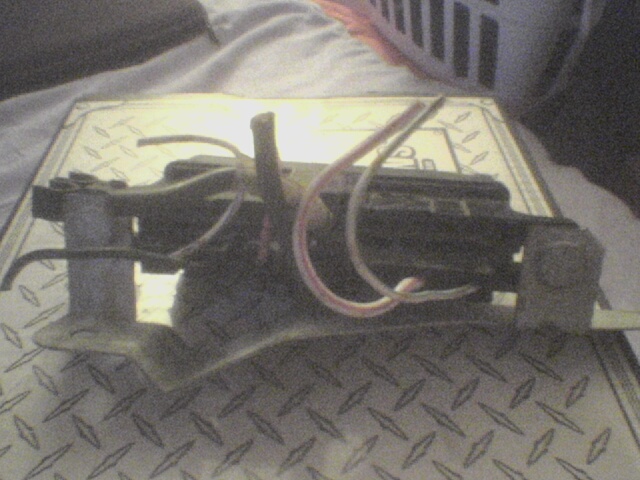

Oh yes I remembered I should post an update to my 2nd generation fusebox... Thanks Smnc for the fast shipping and good product. I would like to say that I thought the wiring would be hard but I took a look at it for a minute and it really does just drop in... I ordered a respeed mount for this mod for the fb... Heres some pictures, I really like what it looks like and the idea... I highly recommend doing this...
The following users liked this post:
Teej66 (11-14-19)
#34

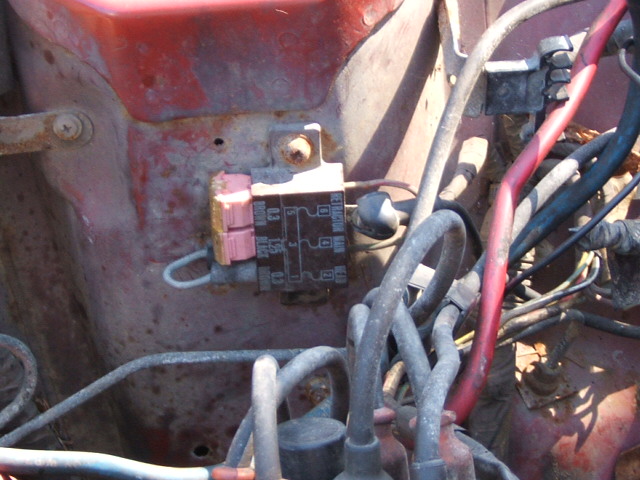

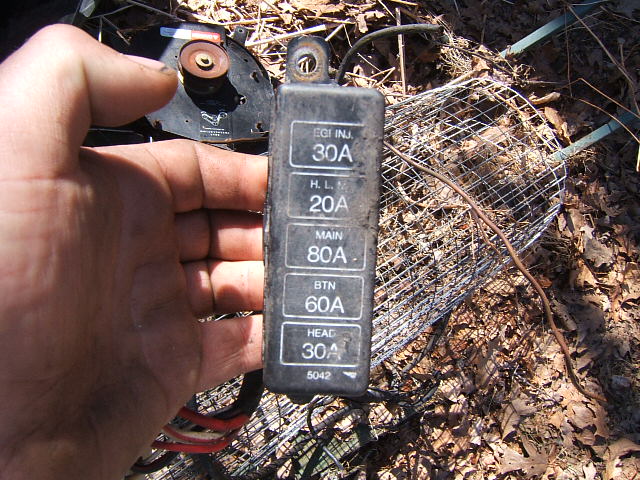

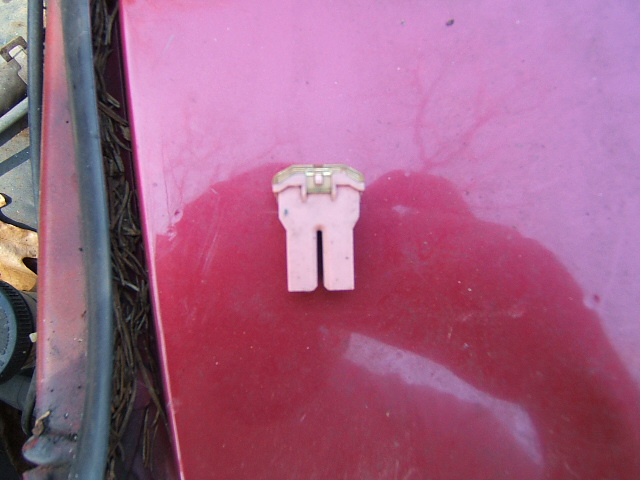

Looked at an FC fuse block at the junkyard. It has really weird looking fuses in it. Are you sure it is worth the trouble? As in, wouldn't it be better just to put in a fuse block that uses "regular" fuses??
#36
finally back in an RX-7!!
iTrader: (1)
Join Date: Jun 2003
Location: Northern New Jersey
Posts: 847
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by rustnrot
Looked at an FC fuse block at the junkyard. It has really weird looking fuses in it. Are you sure it is worth the trouble? As in, wouldn't it be better just to put in a fuse block that uses "regular" fuses??
#37
Senior Member
Join Date: Jul 2004
Location: Delhi, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
2nd gen fuse block
I could use it.
Originally Posted by smnc
I actually have a 2nd gen fuse block if anyone wants. I was going to use it, but decided on the aftemarket one instead...
#38
Old Fart Young at Heart
iTrader: (6)
I did the conversion last week, and was wondering what would be the proper amperage for the headlights and retractors. I used a 30 amp for each, thought maybe 20's might be more appropriate, but couldn't find any. I don't know if they are made in that size.
Any thoughts or comments?
Any thoughts or comments?
#40
Banned. I got OWNED!!!
iTrader: (3)
Originally Posted by Dan_s_young
Oh yes I remembered I should post an update to my 2nd generation fusebox... Thanks Smnc for the fast shipping and good product. I would like to say that I thought the wiring would be hard but I took a look at it for a minute and it really does just drop in... I ordered a respeed mount for this mod for the fb... Heres some pictures, I really like what it looks like and the idea... I highly recommend doing this...
I hope you like the bracket and I hope it made the install easier for you.
-billy
#43
finally back in an RX-7!!
iTrader: (1)
Join Date: Jun 2003
Location: Northern New Jersey
Posts: 847
Likes: 0
Received 0 Likes
on
0 Posts
Now that this is in the FAQ, I wanted to add this to the thread, and it should finalize any questions regarding the installation, this is a straight copy and paste of another thread...
"In max 7's pictures, he does not make it clear that in addition to the "main" wire, there needs to be a power wire directly from the battery into the other side of the "main" location on the 2nd gen box (this will make sense if you are looking at the fuse box). I personally did not re-use the stock "power" wire because it had a jumper on it to power both of the fusible link boxes, so I just used some of my 8 gauge power wire, and used one of those melt on to fit connectors so as to make a tight connection into the box. Also, if you are like me and get your 2nd gen box as JUST the box (no connectors or wires), you can use the connectors off of the fusable links to go into the bottom of the 2nd gen fuse box (I did not know this, so I bought 12-10 gauge connectors and simply bent them open a bit to fit). however, using the connectrs that I used, I was able to mark on them in permanent marker which wire is which (I = injectors, E = egi comp, etc etc) so when I go to mount the box, I will not need to re-label which wire is which."
happy rotoring!
~Andrew
"In max 7's pictures, he does not make it clear that in addition to the "main" wire, there needs to be a power wire directly from the battery into the other side of the "main" location on the 2nd gen box (this will make sense if you are looking at the fuse box). I personally did not re-use the stock "power" wire because it had a jumper on it to power both of the fusible link boxes, so I just used some of my 8 gauge power wire, and used one of those melt on to fit connectors so as to make a tight connection into the box. Also, if you are like me and get your 2nd gen box as JUST the box (no connectors or wires), you can use the connectors off of the fusable links to go into the bottom of the 2nd gen fuse box (I did not know this, so I bought 12-10 gauge connectors and simply bent them open a bit to fit). however, using the connectrs that I used, I was able to mark on them in permanent marker which wire is which (I = injectors, E = egi comp, etc etc) so when I go to mount the box, I will not need to re-label which wire is which."
happy rotoring!
~Andrew
#44
How About A Cup Of STFU
Join Date: Sep 2004
Location: ALBANY, GA
Posts: 1,552
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to bump an old thread, but came across this on a search and want to add a thing or two.
First of all, I am going the route that SMNC did with the aftermarket fuse block. As a matter of fact, I am using the same stinger block as well.

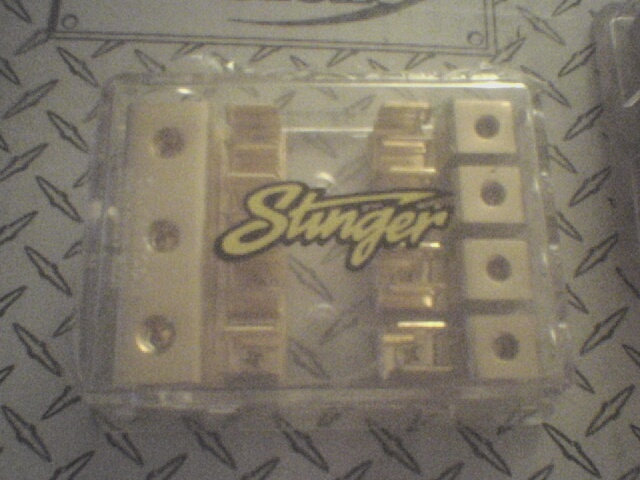

They do use the modern spade fuses, but let me clarify that these are MAXI size fuses. They are bigger and fatter than the common spade fuses. They also ONLY come in the 20 to 80 amp ratings needed for this mod. They are available at all/any auto parts store.
I have an 85 amp alternator, so my main is an 80 amp. The other two (lights and retractors) are 30 Amps each.
With the Stinger block, I have a fourth fused 8 gauge out. That is used for the 8 gauge line to my audio power amps.
There's more than one way to skin a cat, but this has to be the easiest to find, takes less time, looks best, and costs less than $40.
They're making resettable automotive circuit breakers now. They look/work great and are non-sacrificial, but cost about $25-$30 US each. Times 3 required. Times 5 if an SE.
Sorry no pics, but just covered all this ground this weekend.
First of all, I am going the route that SMNC did with the aftermarket fuse block. As a matter of fact, I am using the same stinger block as well.
They do use the modern spade fuses, but let me clarify that these are MAXI size fuses. They are bigger and fatter than the common spade fuses. They also ONLY come in the 20 to 80 amp ratings needed for this mod. They are available at all/any auto parts store.
I have an 85 amp alternator, so my main is an 80 amp. The other two (lights and retractors) are 30 Amps each.
With the Stinger block, I have a fourth fused 8 gauge out. That is used for the 8 gauge line to my audio power amps.
There's more than one way to skin a cat, but this has to be the easiest to find, takes less time, looks best, and costs less than $40.
They're making resettable automotive circuit breakers now. They look/work great and are non-sacrificial, but cost about $25-$30 US each. Times 3 required. Times 5 if an SE.
Sorry no pics, but just covered all this ground this weekend.
#45
It's back from the dead, so I will add back in the pictures.
I have since added another one on the other side of the same shock tower. With all the stereo requirements (100amp 3rd gen alternator) rewired the headlights with new relays (high and low) As you can see in this picture, I also had my friend make new top labels with all the new amp fuses and locations.
I have since added another one on the other side of the same shock tower. With all the stereo requirements (100amp 3rd gen alternator) rewired the headlights with new relays (high and low) As you can see in this picture, I also had my friend make new top labels with all the new amp fuses and locations.
#47
13b P-port on a budget
Join Date: Nov 2004
Location: Louisville KY
Posts: 3,003
Likes: 0
Received 0 Likes
on
0 Posts
I hope to be doing this upgrade soon I order 2 fuse boxes around christmas and I am still waiting but as soon as i get them I ll install them. I am thinking about using the 2nd 1 as a backup.
#48
I put 2 2nd gen fuse boxes in my 7. I've done alot of upgrades that needed the outputs. (EFan, Upgraded relays and power to the headlights, stereo, etc..) It's always good to have a few extra's, yah never know! I have a friend that runs a sign shop, so he made me up new labels, so all the fuses are labeled properly.
#49
good place to start
so i have this friend who's wife buys him a 79 rx7. Not in the best of condition drivers side window busted out and no seal for the sun roof. They get it running and my buddies wife decides she is going to mark the battery post with + and - because they cant find the markings on it. One day it wont start so my buddy decides to jump start it and he thinks his wife got the markings backward so he crosses the cables and proceedes to try and jump the car needless to say something went and and he wanted nothing to do with it. So here I am with a 1979 rx7 for free.
SO HERES THE QUESTION
I'm basicaly car retarded.I came across fusible links in the chiltons and was wondering if this might be a good place to start. The problem is I live in hick ville and we dont have a pepboys can any one tell me if i might be on the right track and where i van find these things online?
SO HERES THE QUESTION
I'm basicaly car retarded.I came across fusible links in the chiltons and was wondering if this might be a good place to start. The problem is I live in hick ville and we dont have a pepboys can any one tell me if i might be on the right track and where i van find these things online?
