Fuel system for TII swap
03-01-06, 01:10 AM
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Fuel system for TII swap
I going to replace all my fuel lines in my SA for my TII swap. I bought some 3/8" steel fuel line to run new feed and return from tank to eng compartment. Also have purchased a walbro inline and aeromotive fpr. what fuel filter or filters should i run? I'm going to flare the line to -6 so i can use some fittings also. What do you guys think?
Last edited by gonzz; 03-01-06 at 01:19 AM.
03-01-06, 06:59 PM
#7
REW'd FB
Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED
What are you guys doing to combat fuel surge?
My Filter is installed after the pump. I actually placed it right before the rails so that I would not have to climb under the car to get to it. Should make changing the filter a lot easier.
Trending Topics
03-01-06, 10:59 PM
#9
REW'd FB
Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Directfreak
GSL-SE Fuel tank with internal baffles. The return feed into the same "cup"
as the fuel pickup is, so it never runs out of fuel, even if the tank is low.
as the fuel pickup is, so it never runs out of fuel, even if the tank is low.
03-02-06, 12:19 AM
#11
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by z-beater
Are you talking about slosh etc?
My Filter is installed after the pump. I actually placed it right before the rails so that I would not have to climb under the car to get to it. Should make changing the filter a lot easier.
My Filter is installed after the pump. I actually placed it right before the rails so that I would not have to climb under the car to get to it. Should make changing the filter a lot easier.
Unless you run an SE tank like DF you really need to have a surge tank. Otherwise you will most definately run out of fuel during cornering or acceleration.
03-02-06, 12:36 AM
#13
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED

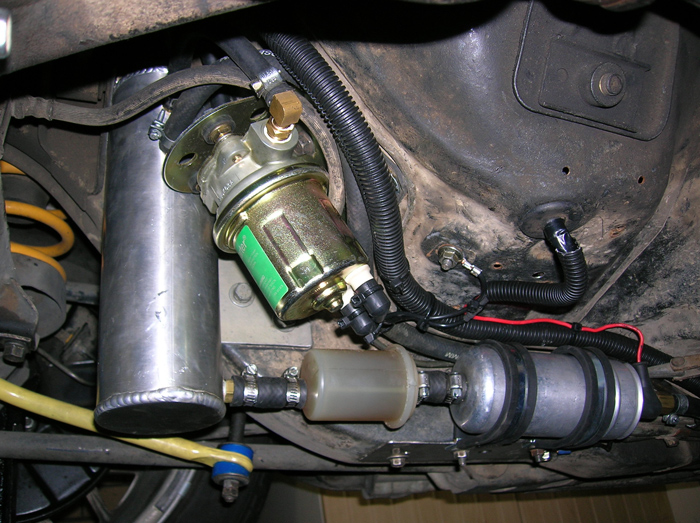

Very bad idea. An EFI fuel pump is a device built to very precise clearances. Get a tiny bit of crud in there and you can say good bye to your pump. I'm using three filters. One before my Carter lift pump, one before the Bosch motorsport main pump and one before the fuel rail.
Unless you run an SE tank like DF you really need to have a surge tank. Otherwise you will most definately run out of fuel during cornering or acceleration.
Unless you run an SE tank like DF you really need to have a surge tank. Otherwise you will most definately run out of fuel during cornering or acceleration.
03-02-06, 03:38 AM
#14
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by gonzz
The filter prior to the inline pump looks like a stock 12a filter..
It's a Volvo filter.
03-02-06, 09:43 AM
#15
Tennis, anyone
It's a good idea to run a filter before the pump, just to make sure, and after the pump. Just about 'any' metal hi-presure fuel filter will work. You might want to add a fuel presure guage somewhere under the hood also.
03-02-06, 12:47 PM
#16
REW'd FB
Join Date: Dec 2004
Location: WA
Posts: 2,685
Likes: 0
Received 0 Likes
on
0 Posts
Got a SE tank already in the car. Thanks for the heads up on the filter. I will install a secondary filter prior to the pump. Odd though...I see third gens like this all the time. Might be because their pump is sumped into the tank. You can never have too many filters though. I will be running a a1000.
I also have a RRFPR. So no worries on that.
I also have a RRFPR. So no worries on that.
03-02-06, 01:16 PM
#17
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Some people use a regular filter prior to the pump. Because it's low pressure prior to the pump. After the pump they install a hi-pressure filter.. Correct?
03-02-06, 04:14 PM
#18
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by gonzz
Some people use a regular filter prior to the pump. Because it's low pressure prior to the pump. After the pump they install a hi-pressure filter.. Correct?
That's what I've done.
03-02-06, 08:08 PM
#19
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by REVHED
Correct. That's what I've done.
That's what I've done.
03-02-06, 08:26 PM
#21
Banned. I got OWNED!!!
Thread Starter
Join Date: Mar 2002
Location: Las Vegas, NV
Posts: 4,236
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Check your auto parts store. Autozone has a whole rack of filters in different configurations, should be able to find what you need.
03-03-06, 03:28 AM
#22
Hunting Skylines
Join Date: Apr 2001
Location: Brisbane, Queensland, Australia.
Posts: 3,431
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by gonzz
What car is the pre-filter from? just wondering.. All i need is a 3/8" pre-filter
