Frostycrowd

iTrader: (9)

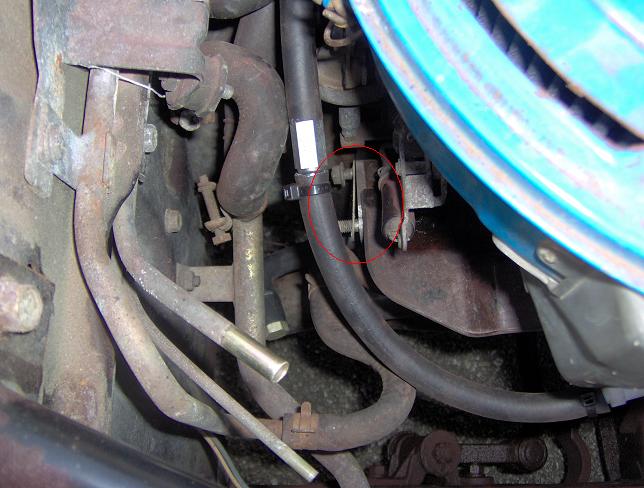

Well I think this might be a big vac leak. I just need to get new bolts to put it back on, anyone know what size threads are here?

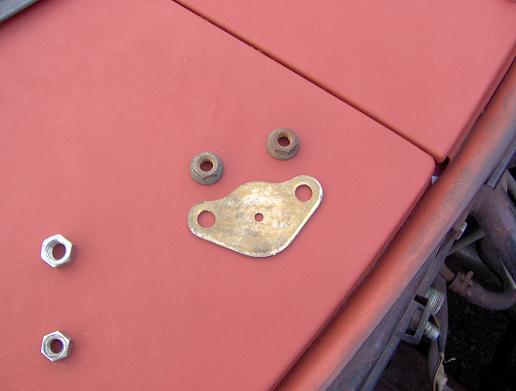

2nd Pic: The plate that wasnt even on. It still has a pinhole, I dont know what from. I think it should be plugged.

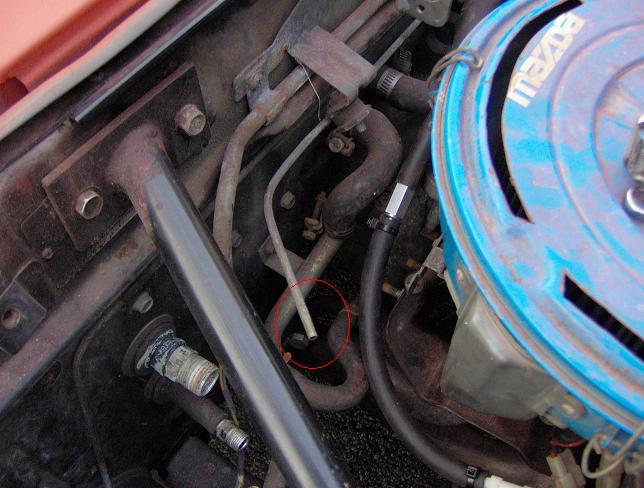

3rd Pic, off topic but what is this and where does it go?

nick812

3rd pic it goes to the crarchoal chanster I belive. If you dont have 1 come get one from me bc other wise i am gonna throw mine away.

glosoli

vac leaks suck. thank god i havent had one yet.

that line goes to a charcoal canister that was mounted on your strut tower.

whats the purpose of those things anyway?

Rx-7Doctor

iTrader: (13)

What you have in your 1st picture is the fresh air supply for the catalytic converter.
It would not cause a vacuum leak.

Frostycrowd

iTrader: (9)

That line I dont think is for the charcle can cause I took that one out. It was right below it, and it runs under the car

nick812

there is 2 lines going to it.

Frostycrowd

iTrader: (9)

oh ok, answered thanks

85rotarypower

That 3rd pic is definately for the charcoal canister. Its the small line that goes back to the gas tank and vents the tank.

Frostycrowd

iTrader: (9)

hmm, so what am I suppose to do about that one. Im not goin to put that can back in Do I just block it off? or leave it venting?

nick812

Block it off I believe. Thats what I done.
