AN fitting for weber
What's the thread of the fuel inlet and the brass plug on the Weber IDA?

I want to cap the inlet and add an AN fitting on top so the fuel can go straight in from the top instead of from the side.
sen2two is offline
Reply Like
Old 02-03-14, 03:46 PM
  #2
Rx2 > FD

Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,359
Likes: 0
Received 8 Likes on 8 Posts
Anyone?

these are what I need. But they don't carry the type and color I need.


JayCee enterprises - WEBERS BY JAYCEE
sen2two is offline
Reply Like
Old 02-03-14, 07:14 PM
  #3
Out In the Barn


iTrader: (9)

KansasCityREPU's Avatar

Join Date: Mar 2005
Location: KC
Posts: 6,052
Received 1,013 Likes on 799 Posts
Something like this?

Earl's 991953 Earl's Big Bore Carb & Fuel Injection Fittings - Free Shipping on All Orders @ JEGS
KansasCityREPU is offline
Reply Like
Old 02-03-14, 10:41 PM
  #4
Rx2 > FD

Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,359
Likes: 0
Received 8 Likes on 8 Posts
I ordered a 10x1.0 to -6 already. Way to small. I read somewhere that's what is was, but it isn't.
sen2two is offline
Reply Like
Old 02-03-14, 11:03 PM
  #5
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts

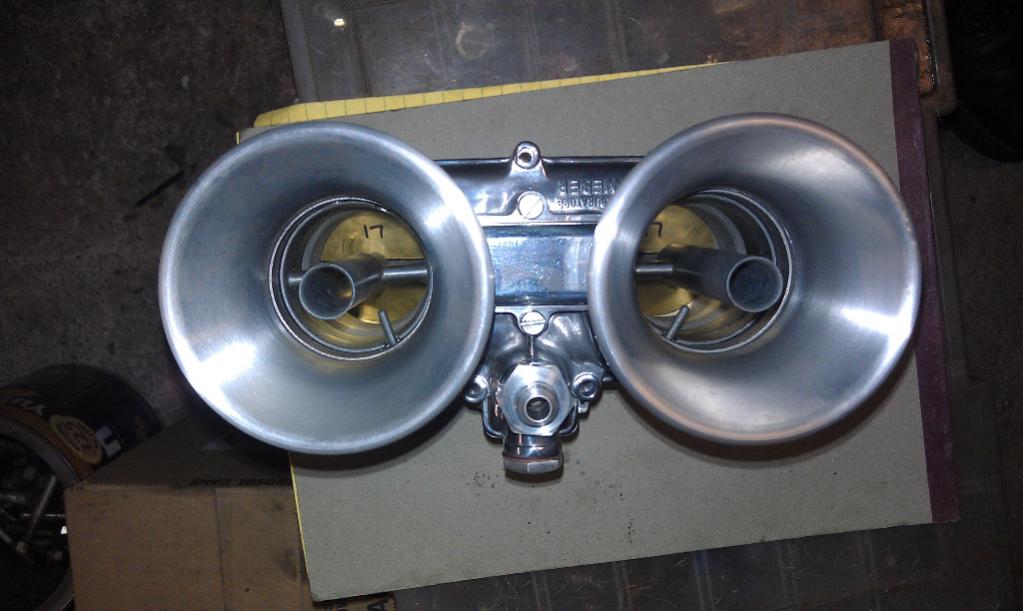

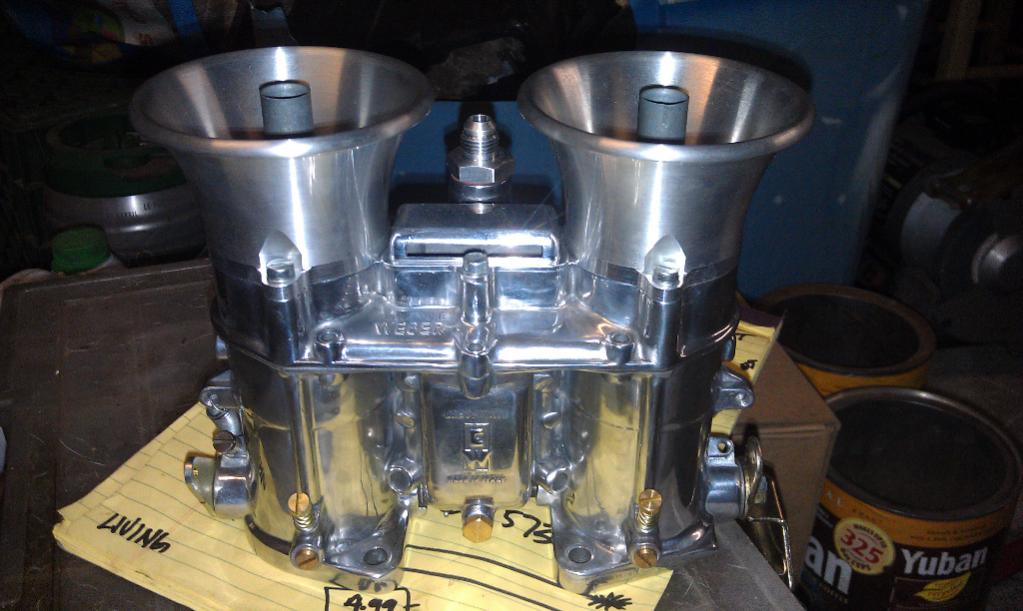

See below on my jaycee modified 51.5. I used the orig inlet as my return
Attached Thumbnails AN fitting for weber-forumrunner_20140203_210212.jpg   AN fitting for weber-forumrunner_20140203_210228.jpg
Siraniko is offline
Reply Like
Old 02-04-14, 07:09 AM
  #6
Rx2 > FD

Thread Starter
iTrader: (10)

sen2two's Avatar

Join Date: Apr 2005
Location: Florida, Orlando
Posts: 3,359
Likes: 0
Received 8 Likes on 8 Posts
For futur reference. The threads are 12x1.5 for the side inlet. And the top is 16x1.5
sen2two is offline
