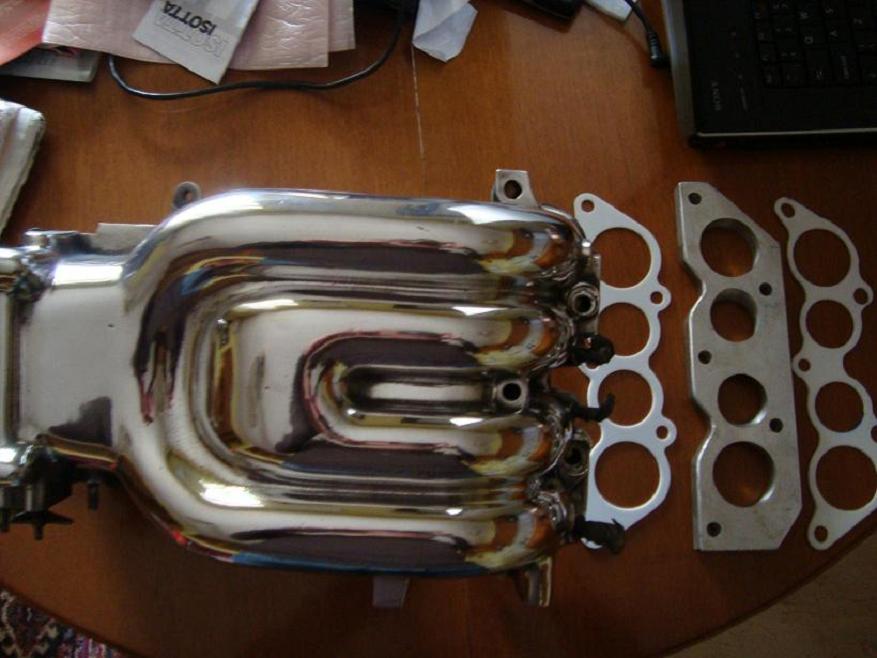

Hello,i know that a lot of people had done this but i can't found a complete write up,from start till the end.i did get the fd uim,throttle,the gaskets,the adapter for s5 from a guy here :

http://cgi.ebay.com/ebaymotors/ws/eB...3AIT&viewitem=

but what have you guys done after that?what tps you did use?any coplete threat?thank you



bump



FD manifold on S5TII engine, in the first gen section.



it looks strange but i think ther are more people with fd manifold on s5tII engine at the first generation than the second...

anyway...there are great news for both s5 and s4 guys.there is a new design,like feed adapter for sale:

http://cgi.ebay.com/ebaymotors/ws/eB...3AIT&viewitem=

and i gave him an s4 lim today so he will design a s4 adapter and will start makes them next week.but he told me (BECAUSE THERE ARE NOT SO MANY PEOPLE INTERESTED) that this adapter will be pre-order and he will make only as many adapters as he will sell. and will ship them all together at the end of the month.or right away when he reach the goal,whitch is 5 adapters.so start saving...



I have this setup. S5 motor, with the S5 LIM, feed style adapter plate, S6 upper intake manifold, S6 throttle body and greddy compression elbow. Seems like a very good setup and a good route to go. There's not too much of a write up needed, the kit comes with longer studs that go into the LIM and a longer through bolt that goes from the UIM down into the LIM.

I am using a microtech standalone so I wired the TPS as per the instructions for a S6 TPS.



Dan, I gotta see that thing!!



thank's Dan,is this possible also with a power fc?



also need a spacer peice between the uim and lim. not sure who makes this though could be custom if you got all the measurements

my car is wired to a power fc, so yes it works.



looking at your post i see you already know that.

what is your question ?
