Electrical connector identification needed

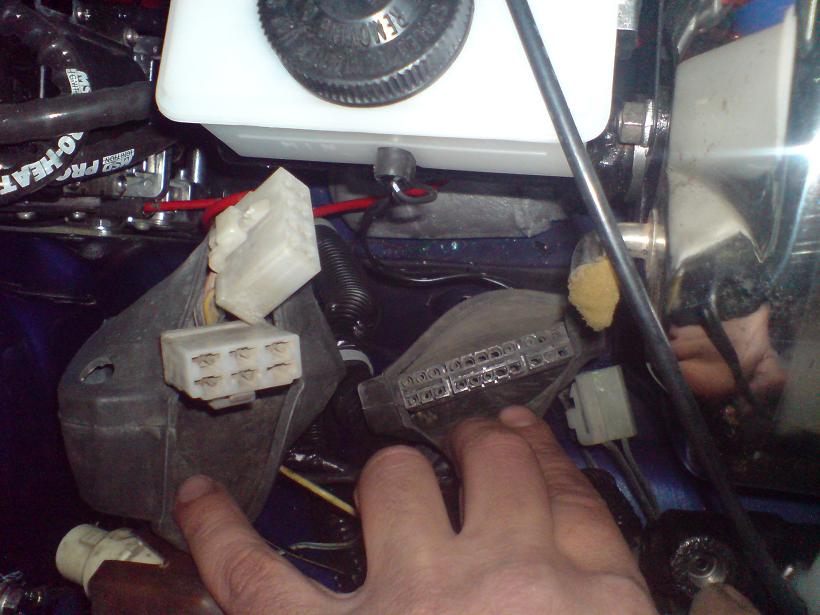

Does anybody know what are these for?it's from my 83' and i can't find anything at the manual...
Attached Thumbnails Electrical connector identification needed-%CE%95%CE%B9%CE%BA%CF%8C%CE%BD%CE%B1-069.jpg
ΝΙΚΟΣ is offline
Reply With Quote
Old 11-04-07, 08:35 PM
  #2
seniorchief

Seniorchief's Avatar

Join Date: Feb 2001
Location: Indianapolis, IN
Posts: 165
Thanks: 0
Thanked 1 Time in 1 Post
I believe the long narrow one on the left is used for plugging a diagnostic tool into for reading codes. Not sure about the two white ones.
Seniorchief is offline
Reply With Quote
Old 11-04-07, 08:49 PM
  #3
Senior Member
5 Year Member
iTrader: (2)

Join Date: Dec 2005
Location: Wauwatosa Wisconsin
Posts: 266
Thanks: 0
Thanked 0 Times in 0 Posts
Look at the color of the wires & then look at the different connectors wire colors in you factory workshop manual.
David Dewhurst is offline
Reply With Quote
Old 11-04-07, 08:50 PM
  #4
I hate drum brakes
5 Year Member

Box_Man's Avatar

Join Date: Oct 2006
Location: West Palm Beach, Florida
Posts: 638
Thanks: 0
Thanked 0 Times in 0 Posts
Those are for the engine half of the stock wiring harness, I'm only using three of the wires on mine because I have a stock carb.
