got a SA22C s4 na with a 3 core rad what has everyone else done as far as an e-fan goes trying to get ideas as far as dimensions and stuff and how they are wired up i currently have an e-fan just looking at ideas to change it up and make it better and look better i suppose pics would be nice



i was looking at the 2004-2004 Mustang fan, the radiator is the same size. the fan uses bolts on the side like the Mazda radiator has, 3 wire hookup.

its also inexpensive new, $130

part is Motorcraft RF-166.



yeah i do believe that the taurus fans are the same as well i was wondering more if someone else with a s4 na was having an issue clearing the water pump with a 3 core rad



So you have an SA with an s4 13B swapped into it? Is that what you are saying?

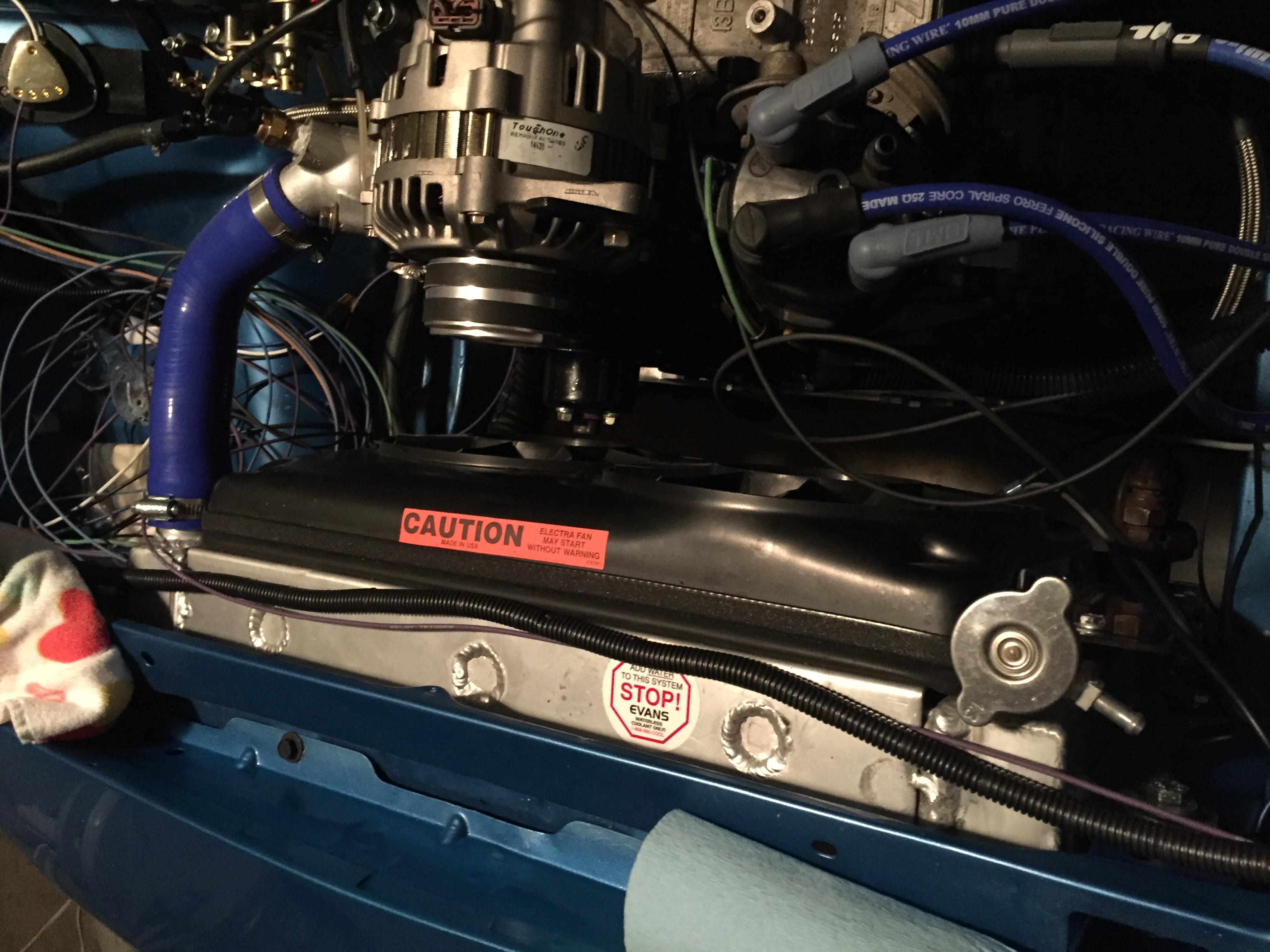

This is how I done it. Spal slim fan would be best if your tight on space. Make sure you get a fan controller. Don't be the silly person who only uses a manual switch, as one day you WILL forget to turn it on. Boom. Overheated.

www.RX7fb.com ? View topic - Kenlowe Electric Fan Conversion



fits my rx3 with a 13b.... looks almost stock, fits well, cools great



I'm running two 12" e-fans side-by-side in the FB with a short radiator, working great so far!





thats exactly what i needed to see mainly sizing of the fans thanks man



nice rx3 i was running one on the dragon during dgrr those damn things are awesom



yes its an SA with a S4 NA out of an 86 85 GSL-SE suspension brakes and rear diff seats from a 90 turbo





That was me at the Dragon with you sir!! lol
hope to see you again in 2018 brotha



That body kit looks awesome. If you don't get the Ford fan you can get a spal high performance fan for 145 and build your own shroud. They draw less amps (use a 40 amp fuse) and are pretty slim to clear the pulleys.
