dynoed the fb, big letdown
05-12-06, 10:04 PM
#51
Absolute Power is Awesome
Along the lines of the thread...
My 6-port 13b, with the sleeves REMOVED, and some minor exhaust porting dynos at 167HP with a Haltech and MSD direct fire. The exhaust is RB 2.5" and a high flow cat. The sleeves improve port filling at lower engine speeds for improved low end torque but even without them, the engine is much torquier than a 12a.
Your number seems like it just needs some tuning and you'll get alot more out of it.
My 6-port 13b, with the sleeves REMOVED, and some minor exhaust porting dynos at 167HP with a Haltech and MSD direct fire. The exhaust is RB 2.5" and a high flow cat. The sleeves improve port filling at lower engine speeds for improved low end torque but even without them, the engine is much torquier than a 12a.
Your number seems like it just needs some tuning and you'll get alot more out of it.
05-12-06, 11:03 PM
#52

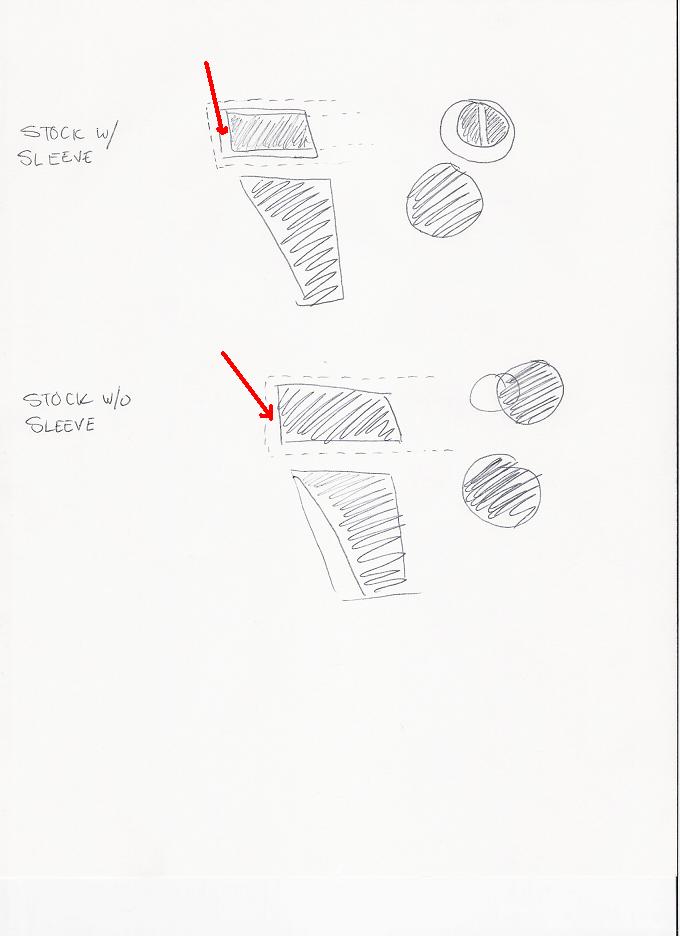

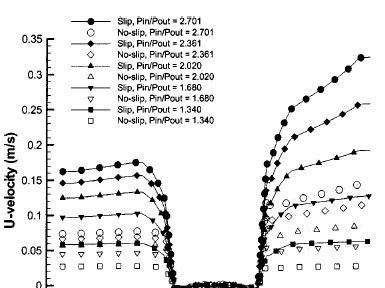

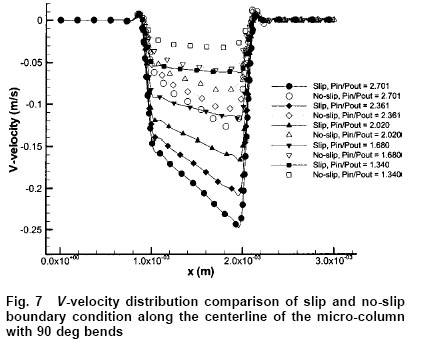

Did you do your modeling with the flow under pressure or vacuum? I tend to view things in a different way, i.e., since I sit next to the Missouri river, my test would be to drop a group of rubber duckies along a tangent line to the banks at a straight section of the river, then watch and record the progress of each one as they float through a bend in the river until they reach the next straight section.
It has been my experience in canoeing that hugging the inside bank of the bend may be the shortest route, the quicker one is usualy off center towards the outer, longer bank. In river dynamics, it is the outer bank that errodes faster than the inner one due to the increased velocity of the water flow being nearer the outer bank than the inner one.
To model this situation, the entire flow path has to be analyzed. This would have to take into account the effect that the primary and secondary ports have on flow when the 2 collide in the housing. The fun part is adding the factor that the rotor comes into play with it's rotation. I've had a theory about this collision in the aspect that if one port had a 90* curve and the other had something like a 45* one, the collision would be minimized and could possibly add to the dynamic intake effect by the 45* port accelerating the 90* intake charge.
Your modeling works fine within the limits of the distances you have set, but it is not what occurs inside the engine. With both the primary and secondary charges taking the path in your model, they will quickly impact each other on the inside of the curve, thereby slowing down the inside velocity and moving the higher velocity to the outer sections of the curve.
Must be nice to have such software to play with. If you can model the entire intake charge that includes both ports and the rotation of the rotor and prove me wrong, I will powdercoat a part for your engine bay.
Nice work, this is fun tonight, I seldom get the challenge to dig deep in the gray matter and bring out 'stuff' that I haven't used in a long time. Beats the hell out of the newb posts.
It has been my experience in canoeing that hugging the inside bank of the bend may be the shortest route, the quicker one is usualy off center towards the outer, longer bank. In river dynamics, it is the outer bank that errodes faster than the inner one due to the increased velocity of the water flow being nearer the outer bank than the inner one.
To model this situation, the entire flow path has to be analyzed. This would have to take into account the effect that the primary and secondary ports have on flow when the 2 collide in the housing. The fun part is adding the factor that the rotor comes into play with it's rotation. I've had a theory about this collision in the aspect that if one port had a 90* curve and the other had something like a 45* one, the collision would be minimized and could possibly add to the dynamic intake effect by the 45* port accelerating the 90* intake charge.
Your modeling works fine within the limits of the distances you have set, but it is not what occurs inside the engine. With both the primary and secondary charges taking the path in your model, they will quickly impact each other on the inside of the curve, thereby slowing down the inside velocity and moving the higher velocity to the outer sections of the curve.
Must be nice to have such software to play with. If you can model the entire intake charge that includes both ports and the rotation of the rotor and prove me wrong, I will powdercoat a part for your engine bay.
Nice work, this is fun tonight, I seldom get the challenge to dig deep in the gray matter and bring out 'stuff' that I haven't used in a long time. Beats the hell out of the newb posts.
05-12-06, 11:38 PM
#53
Absolute Power is Awesome
Originally Posted by trochoid
Did you do your modeling with the flow under pressure or vacuum? I tend to view things in a different way, i.e., since I sit next to the Missouri river, my test would be to drop a group of rubber duckies along a tangent line to the banks at a straight section of the river, then watch and record the progress of each one as they float through a bend in the river until they reach the next straight section.
It has been my experience in canoeing that hugging the inside bank of the bend may be the shortest route, the quicker one is usualy off center towards the outer, longer bank. In river dynamics, it is the outer bank that errodes faster than the inner one due to the increased velocity of the water flow being nearer the outer bank than the inner one.
To model this situation, the entire flow path has to be analyzed. This would have to take into account the effect that the primary and secondary ports have on flow when the 2 collide in the housing. The fun part is adding the factor that the rotor comes into play with it's rotation. I've had a theory about this collision in the aspect that if one port had a 90* curve and the other had something like a 45* one, the collision would be minimized and could possibly add to the dynamic intake effect by the 45* port accelerating the 90* intake charge.
Your modeling works fine within the limits of the distances you have set, but it is not what occurs inside the engine. With both the primary and secondary charges taking the path in your model, they will quickly impact each other on the inside of the curve, thereby slowing down the inside velocity and moving the higher velocity to the outer sections of the curve.
Must be nice to have such software to play with. If you can model the entire intake charge that includes both ports and the rotation of the rotor and prove me wrong, I will powdercoat a part for your engine bay.
Nice work, this is fun tonight, I seldom get the challenge to dig deep in the gray matter and bring out 'stuff' that I haven't used in a long time. Beats the hell out of the newb posts.
It has been my experience in canoeing that hugging the inside bank of the bend may be the shortest route, the quicker one is usualy off center towards the outer, longer bank. In river dynamics, it is the outer bank that errodes faster than the inner one due to the increased velocity of the water flow being nearer the outer bank than the inner one.
To model this situation, the entire flow path has to be analyzed. This would have to take into account the effect that the primary and secondary ports have on flow when the 2 collide in the housing. The fun part is adding the factor that the rotor comes into play with it's rotation. I've had a theory about this collision in the aspect that if one port had a 90* curve and the other had something like a 45* one, the collision would be minimized and could possibly add to the dynamic intake effect by the 45* port accelerating the 90* intake charge.
Your modeling works fine within the limits of the distances you have set, but it is not what occurs inside the engine. With both the primary and secondary charges taking the path in your model, they will quickly impact each other on the inside of the curve, thereby slowing down the inside velocity and moving the higher velocity to the outer sections of the curve.
Must be nice to have such software to play with. If you can model the entire intake charge that includes both ports and the rotation of the rotor and prove me wrong, I will powdercoat a part for your engine bay.
Nice work, this is fun tonight, I seldom get the challenge to dig deep in the gray matter and bring out 'stuff' that I haven't used in a long time. Beats the hell out of the newb posts.
To give you some background, I'm a thermal/mechanical engineer by trade. My masters degree is in engine port flow. I can direct you to my SAE publications and thesis if you'd like to PM me. Fluent is fun software, but I use it at work nearly every day.
The above example that I gave will be the case with any flow that enters a curve at a constant velocity profile, even your river example. It doesn't matter if the flow is driven by positive pressure or vacuum, flow is driven by a pressure difference.
The reason for river meandering is quite different from what you think. It's actually a product of what's known as secondary flow. I can elaborate on that more but we're already way off topic.
Last edited by purple82; 05-12-06 at 11:43 PM.
05-13-06, 12:31 AM
#54
backyard tuner
iTrader: (1)
Join Date: Sep 2002
Location: BC, Canada
Posts: 1,265
Likes: 0
Received 0 Likes
on
0 Posts
this is a interesting read, however off-topic from the beginning, since i was going to remove my sleeves to see if i can pick-up any extra power at the high rev's, right now my power really dies off at 5500rpm. i've ruled out all other factors,
guess i'll yank the sleeves and get a feel for it. currently i have a ton of torque but it dies off so quickly, for all i know my 5/6 ports could be cluttered with carbon.
guess i'll yank the sleeves and get a feel for it. currently i have a ton of torque but it dies off so quickly, for all i know my 5/6 ports could be cluttered with carbon.
05-13-06, 01:08 AM
#56
I'm pretty sure he's running either 38 or 40mm chokes. When I moved up from 38mm to 40mm in my DCOE I only gained 1 peak hp. I went from 139 in the graph I showed, up to 140whp. Here you can see the exact same problem exists with the sleeves in or out, but without the sleeves there is obvoiously more volume in the port and more port timming...
Last edited by Hyper4mance2k; 05-13-06 at 01:13 AM.
05-13-06, 08:10 AM
#57
ok whos got a flow bench? caz from my understanding removing the selves hurts the flow......at least this is what i read from paul yaw's web site....and bigger is not always better
and rotary_sex that was very rude of you to tell them to **** off...you are a new member and trochoid is 1 of the ppl that will end up helping you out...when you have other questions you dont know the answers to
and rotary_sex that was very rude of you to tell them to **** off...you are a new member and trochoid is 1 of the ppl that will end up helping you out...when you have other questions you dont know the answers to
05-13-06, 10:47 AM
#58
Absolute Power is Awesome
Originally Posted by Hyper4mance2k
I'm pretty sure he's running either 38 or 40mm chokes. When I moved up from 38mm to 40mm in my DCOE I only gained 1 peak hp. I went from 139 in the graph I showed, up to 140whp. Here you can see the exact same problem exists with the sleeves in or out, but without the sleeves there is obvoiously more volume in the port and more port timming...
05-13-06, 10:55 AM
#59
Absolute Power is Awesome
Originally Posted by 81gsl12a
ok whos got a flow bench? caz from my understanding removing the selves hurts the flow......at least this is what i read from paul yaw's web site....and bigger is not always better
Like I said before, the sleeves will help with low end torque, where port speed (as opposed to flow impedance) is more important to chamber filling and mixing so the timing is shorter. At higher engine speeds, the larger port size is necessary to fill the chamber because the time to fill the chamber is less.
Originally Posted by 81gsl12a
and rotary_sex that was very rude of you to tell them to **** off...you are a new member and trochoid is 1 of the ppl that will end up helping you out...when you have other questions you dont know the answers to
05-13-06, 12:39 PM
#60
He was just messin cause it went way off topic about something that we know isn't the cause of his problem. I didn't run any sleeves and look at my sheats. As far as i know I put more whp out of a stock port than anyone else carbed. Besides pineapple racing who did like 180, but it was build not 200k like mine was.
05-13-06, 02:15 PM
#61
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2006
Location: Seattle, wa
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by purple82
I've got a bench but I don't have any irons to mess with.
Like I said before, the sleeves will help with low end torque, where port speed (as opposed to flow impedance) is more important to chamber filling and mixing so the timing is shorter. At higher engine speeds, the larger port size is necessary to fill the chamber because the time to fill the chamber is less.
No kidding, he might learn something if he pays attention.
Like I said before, the sleeves will help with low end torque, where port speed (as opposed to flow impedance) is more important to chamber filling and mixing so the timing is shorter. At higher engine speeds, the larger port size is necessary to fill the chamber because the time to fill the chamber is less.
No kidding, he might learn something if he pays attention.
05-13-06, 05:04 PM
#64
Rotary Enthusiast
Join Date: Apr 2002
Location: Cibolo, TX
Posts: 1,477
Likes: 0
Received 0 Likes
on
0 Posts
rotary_sex dont use any sleeves. My gslse with no sleves, racing beat exhaust, msd 6a, and 48 DHLA puts down 150 horses at the wheels. I still need a little tuning. It sounds like youre just in need of some tuning. Check into your timing. I advanced mine and got a ton of responsiveness out of it. 26 degrees of total advance is nice . I am just running mechanical advance on my distributor.
. I am just running mechanical advance on my distributor.
05-13-06, 05:22 PM
#65
Originally Posted by purple82
To give you some background, I'm a thermal/mechanical engineer by trade. My masters degree is in engine port flow. I can direct you to my SAE publications and thesis if you'd like to PM me. Fluent is fun software, but I use it at work nearly every day.
The above example that I gave will be the case with any flow that enters a curve at a constant velocity profile, even your river example. It doesn't matter if the flow is driven by positive pressure or vacuum, flow is driven by a pressure difference.
The reason for river meandering is quite different from what you think. It's actually a product of what's known as secondary flow. I can elaborate on that more but we're already way off topic.
The above example that I gave will be the case with any flow that enters a curve at a constant velocity profile, even your river example. It doesn't matter if the flow is driven by positive pressure or vacuum, flow is driven by a pressure difference.
The reason for river meandering is quite different from what you think. It's actually a product of what's known as secondary flow. I can elaborate on that more but we're already way off topic.
As a I am a man of my word, PM me and we will discuus the part you wish powdercoated.
Btw, I am impressed with your knowledge on flow. You should trot it out more, you could certainly contribute to porting and flow, whether it be in port design, intake or exhaust.
Thanks for the education.
05-13-06, 08:01 PM
#66
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2006
Location: Seattle, wa
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by knight1976
rotary_sex dont use any sleeves. My gslse with no sleves, racing beat exhaust, msd 6a, and 48 DHLA puts down 150 horses at the wheels. I still need a little tuning. It sounds like youre just in need of some tuning. Check into your timing. I advanced mine and got a ton of responsiveness out of it. 26 degrees of total advance is nice . I am just running mechanical advance on my distributor.
. I am just running mechanical advance on my distributor.thinking of hunting down a jacobs ignition box
05-13-06, 08:14 PM
#68
Old [Sch|F]ool
Originally Posted by rotary_sex
damn 26 advance, im running 5 advance, stock ignition, once accel super coil (leading) and a stock coil for the trailing, no vaccum advance.
thinking of hunting down a jacobs ignition box
thinking of hunting down a jacobs ignition box
You might want to reconnect your vacuum advance (use ported vacuum not manifold vacuum) as it does wonders for part-throttle driveability and fuel economy. If you don't like the look of vacuum hoses, bend up some hardline and paint it or shine it up, fuel's too expensive to leave the vacuum advance disconnected.
The jacobs box is junk, their company is 100% hype.
05-13-06, 08:30 PM
#70
Old [Sch|F]ool
Manifold vacuum should be self-explanatory... it's the vacuum sourced direct from the manifold.
Ported vacuum is from ports in the carb, specifically from just above the throttle plate. When at idle, the throttle is shut and the ports see no vacuum. Once the throttle is opened a few degrees, it is exposed to manifold vacuum.
Generally you don't want to use manifold vacuum for the vacuum advance because it makes the idle unpredictable. High manifold vacuum causes lots of advance which makes the idle high. Load the engine down, or just start the engine without touching the throttle, and vacuum drops, causing advance to drop and idle speed will drop (and vacuum will drop, causing advance to drop...) and the engine will probably stall (or not start).
Also, using ported vacuum as the source, when you tip into the throttle, you get a nice boost of timing right when you need it, and you'll find that you won't need nearly as much accelerator pump as you thought you did, and the engine feels crisp and lively. Use manifold vacuum as the source, and you *lose* a bunch of timing right when you need it and the engine responds like complete ***.
On a Holley carb, the ported vacuum take-off is the nipple above the choke-side idle mixture adjustment. On the Nikki, you have to take it from one of the nipples on the carb spacer. I don't remember which one I took it from, I just connected up a vacuum gauge to the nipples and used the first one that showed no vacuum until I blipped the throttle
Ported vacuum is from ports in the carb, specifically from just above the throttle plate. When at idle, the throttle is shut and the ports see no vacuum. Once the throttle is opened a few degrees, it is exposed to manifold vacuum.
Generally you don't want to use manifold vacuum for the vacuum advance because it makes the idle unpredictable. High manifold vacuum causes lots of advance which makes the idle high. Load the engine down, or just start the engine without touching the throttle, and vacuum drops, causing advance to drop and idle speed will drop (and vacuum will drop, causing advance to drop...) and the engine will probably stall (or not start).
Also, using ported vacuum as the source, when you tip into the throttle, you get a nice boost of timing right when you need it, and you'll find that you won't need nearly as much accelerator pump as you thought you did, and the engine feels crisp and lively. Use manifold vacuum as the source, and you *lose* a bunch of timing right when you need it and the engine responds like complete ***.
On a Holley carb, the ported vacuum take-off is the nipple above the choke-side idle mixture adjustment. On the Nikki, you have to take it from one of the nipples on the carb spacer. I don't remember which one I took it from, I just connected up a vacuum gauge to the nipples and used the first one that showed no vacuum until I blipped the throttle
witch means i still need to work out alot of bugs err
05-13-06, 08:42 PM
#72
Thankyou Sir, just what I was looking for.
I understand manifold vacuum too well. When I hooked up the vacuum gauge to the rear intake port on the bp, at idle, the needle vibrated so bad it was just a blur. This was due to the overlap, and the overlap made worse by still having part of the stock exhaust system. I recently completed a full header back 3" system and the needle has settled down a bit.
Since I'm running the Mikuni, I'll have to check if it even has a port I can use. I have the vacuum advance unhooked.
I understand manifold vacuum too well. When I hooked up the vacuum gauge to the rear intake port on the bp, at idle, the needle vibrated so bad it was just a blur. This was due to the overlap, and the overlap made worse by still having part of the stock exhaust system. I recently completed a full header back 3" system and the needle has settled down a bit.
Since I'm running the Mikuni, I'll have to check if it even has a port I can use. I have the vacuum advance unhooked.
05-13-06, 08:43 PM
#74
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2006
Location: Seattle, wa
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by peejay
26 degrees advance is probably maximum centrifugal. Run the engine speed up until the timing quits advancing (generally, over 4000rpm) and *then* read it. With a stock distributor, 26 degrees "total" is about 6 degrees at idle, depending on which distributor is being used.
You might want to reconnect your vacuum advance (use ported vacuum not manifold vacuum) as it does wonders for part-throttle driveability and fuel economy. If you don't like the look of vacuum hoses, bend up some hardline and paint it or shine it up, fuel's too expensive to leave the vacuum advance disconnected.
The jacobs box is junk, their company is 100% hype.
You might want to reconnect your vacuum advance (use ported vacuum not manifold vacuum) as it does wonders for part-throttle driveability and fuel economy. If you don't like the look of vacuum hoses, bend up some hardline and paint it or shine it up, fuel's too expensive to leave the vacuum advance disconnected.
The jacobs box is junk, their company is 100% hype.
05-13-06, 08:44 PM
#75
Banned. I got OWNED!!!
Thread Starter
Join Date: Feb 2006
Location: Seattle, wa
Posts: 293
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by trochoid
Rotary Sex, my apologies, here I am jacking your thread again.
