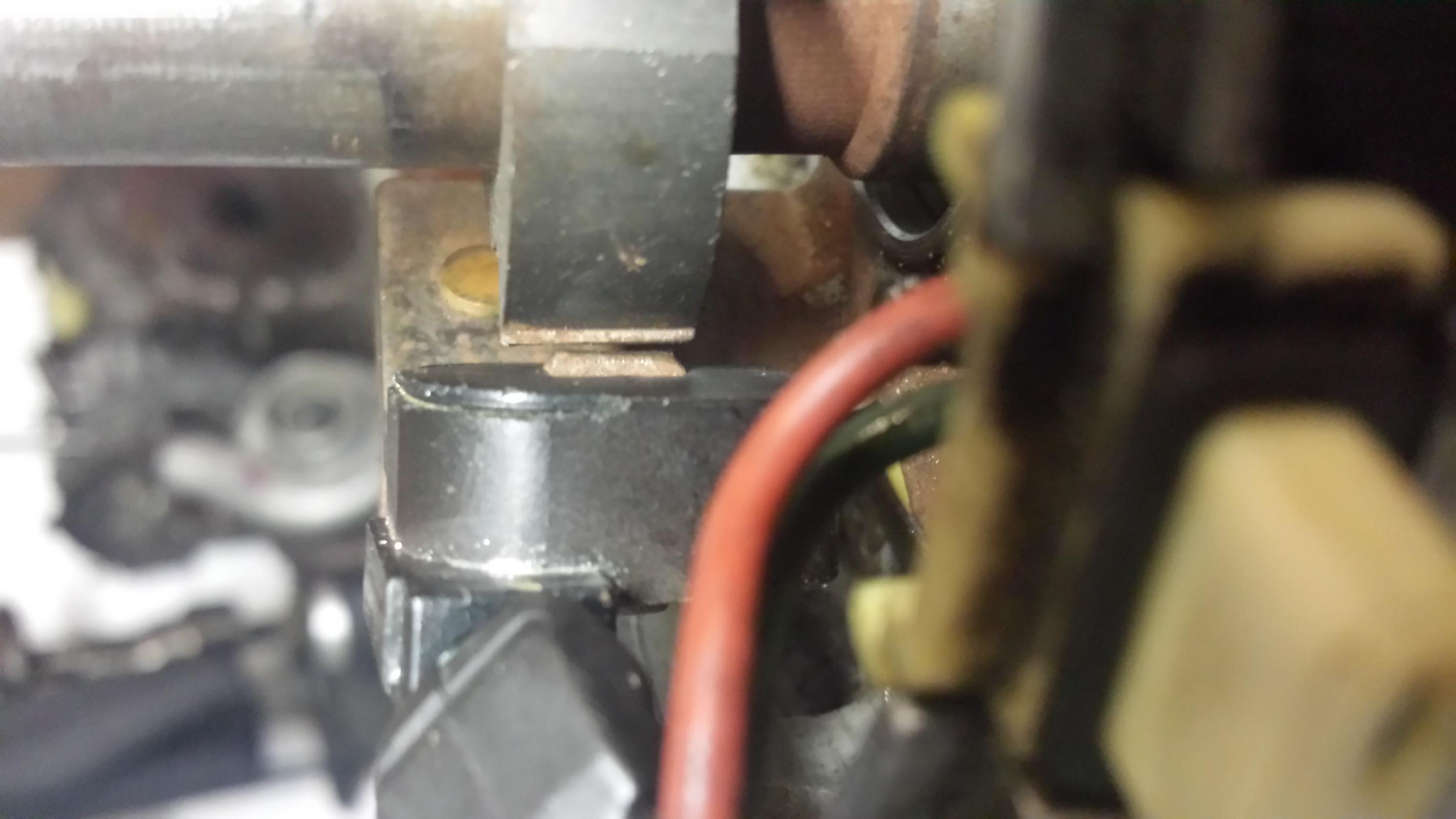

Here's a shot of the pick up on the dizzy.

Does anyone know the distance these are supposed to be at?



FSM will list it for sure. Go to Foxed.ca for the manuals.



If it's in there somewhere... I wasn't able to find it unfortunately.

I was able to find the air gap specs on other cars. Just not for 12a/13b's.



off top of my head the CAS is 0.2 - 0.6 mm , cant remember the ohms

and the dizzy is 0.5 to 0.9 mm and ohms are 650 + /- 50 ohms

most dizzys in my experience tend to like to be set down at the minimum around 0.5 and even less to 0.4
because they by now have a bit of wobble built into the bearings



Thank you sir.

I was planning to set it to .020" if I couldn't find it anyways. Which is damn close to .5mm
