Direct Fire help
#1
Senior Member
Thread Starter
Join Date: Jun 2002
Location: Minnesota
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
Direct Fire help
Ok. My car hasn’t been running for about 3 weeks now, and I am getting very sick of not being able to drive it. I need to fix it.
So what I thought was a problem with the fuel system (I bought new injectors and FPR, but neither got the car running) is turning out to be an ignition problem. I have a very weak spark, even though I have new plugs and wires. This problem started shortly after I installed the direct fire, and kept getting worse until now the car doesn’t run.
I think that the coils are bad, but I think it could also maybe be a problem with the wiring. If I hook up the (+) terminals of the coils directly to the battery (+) the engine will start very quickly, but die very shortly after.

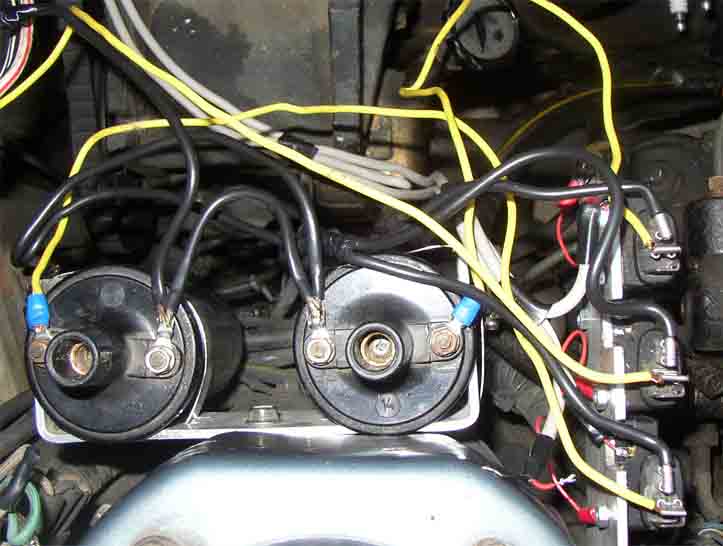

I have some pictures of the wiring; please tell me if I messed something up.
One of my leading igniters was toast so I used the trailing igniter in its place.

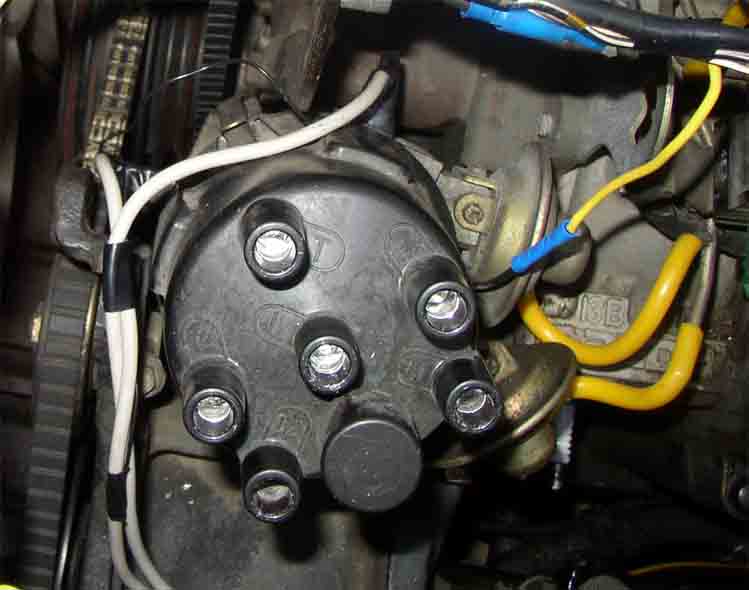

I used small spade connectors to plug the signal wires into the distributor. I used the heaviest shielded cable Radio Shack had to offer. I grounded the shielding to the igniter plate.

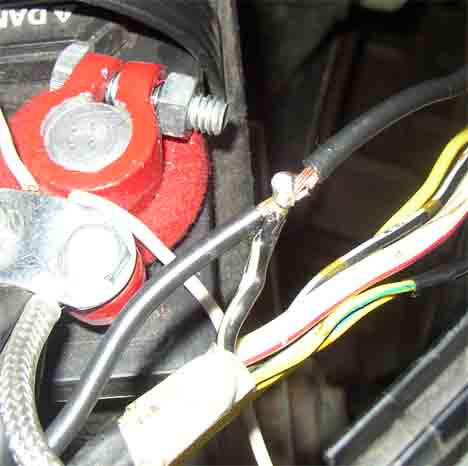

This is where I hooked up the positive wire for the coils. This is the black/ yellow wire that went to the (+) on the coils when it was stock.

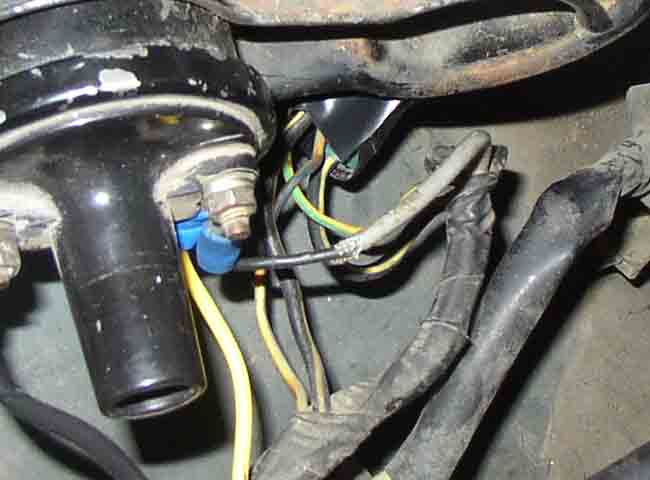

My tach wasn’t working, even when the trailing ignition was working fine. This black wire with the gray shielding is the tach signal wire, isn’t it? I hooked it up to the (-) on the trailing coil.
If I screwed something up please tell me, I am no electrician. I think I might have gotten in over my head with this, but I’m sure I will get it running again someday (soon?)
Thanks in advance for your help!
So what I thought was a problem with the fuel system (I bought new injectors and FPR, but neither got the car running) is turning out to be an ignition problem. I have a very weak spark, even though I have new plugs and wires. This problem started shortly after I installed the direct fire, and kept getting worse until now the car doesn’t run.
I think that the coils are bad, but I think it could also maybe be a problem with the wiring. If I hook up the (+) terminals of the coils directly to the battery (+) the engine will start very quickly, but die very shortly after.
I have some pictures of the wiring; please tell me if I messed something up.
One of my leading igniters was toast so I used the trailing igniter in its place.
I used small spade connectors to plug the signal wires into the distributor. I used the heaviest shielded cable Radio Shack had to offer. I grounded the shielding to the igniter plate.
This is where I hooked up the positive wire for the coils. This is the black/ yellow wire that went to the (+) on the coils when it was stock.
My tach wasn’t working, even when the trailing ignition was working fine. This black wire with the gray shielding is the tach signal wire, isn’t it? I hooked it up to the (-) on the trailing coil.
If I screwed something up please tell me, I am no electrician. I think I might have gotten in over my head with this, but I’m sure I will get it running again someday (soon?)
Thanks in advance for your help!
Last edited by Lotus00; 07-08-05 at 10:03 PM.
#3
Senior Member
Thread Starter
Join Date: Jun 2002
Location: Minnesota
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts

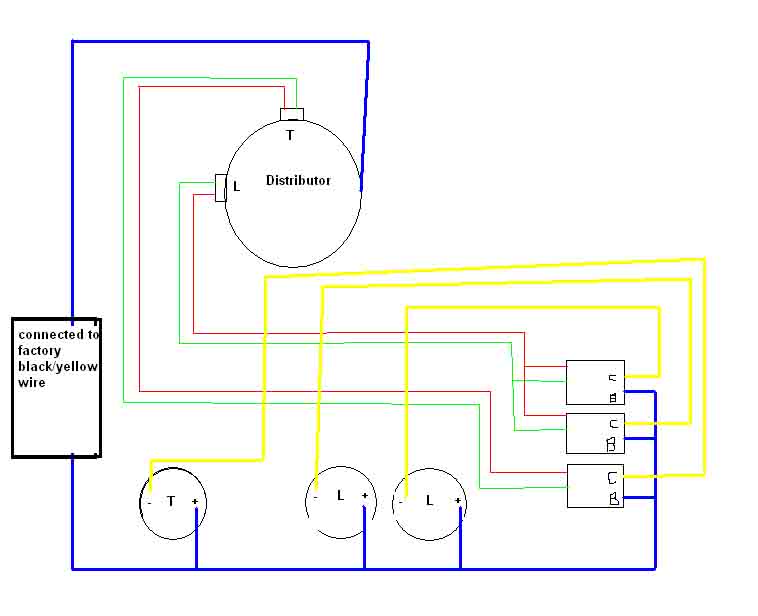

Hopefully this will give everyone a better idea of how I wired it up.
