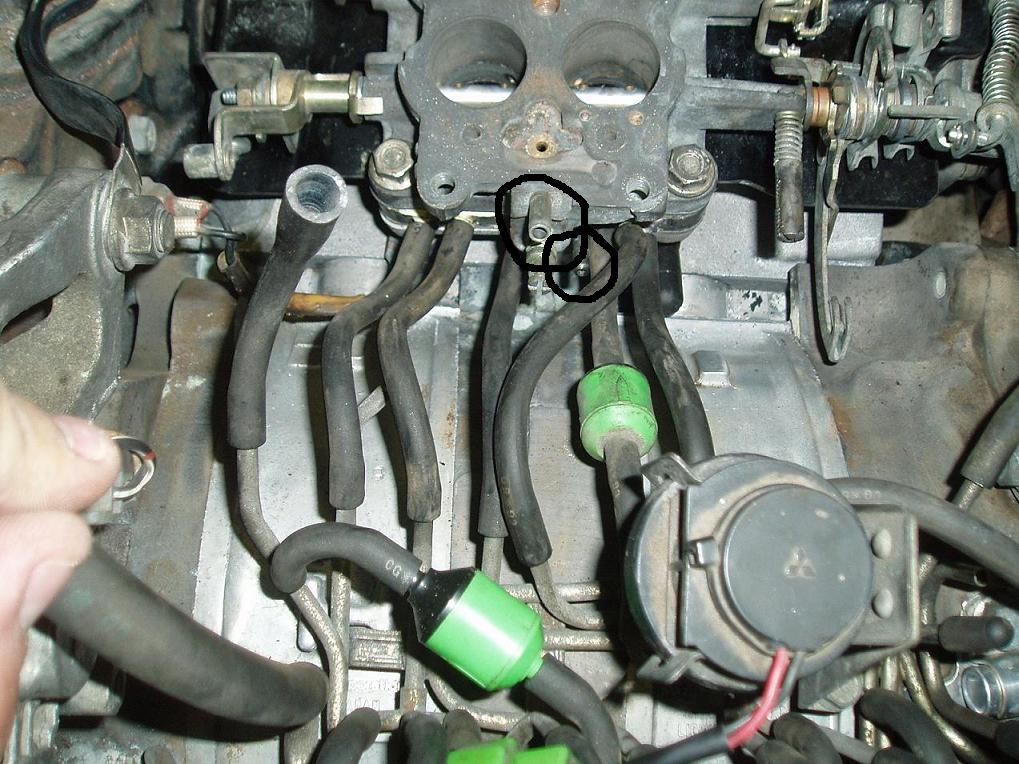

im putting my rats nest and carb back together and i need toi know if i got everything hooked up right so far! and i circled everything that where i dont know where it goes,any help would be great. i looked at the rats nest diagram and this is what i thinbk its supose tp look like.



sorry, can't help ya. i did away with all the crap as did the majority of those on this forum.



my problem is that im in Cali in the Bay Area and i dont know anyone that will hook me up with passing smog without my smog equipment! someone send me a PM if you know someone in the Bay Area that will pass me! and also if any one knows how to set the hoses up!

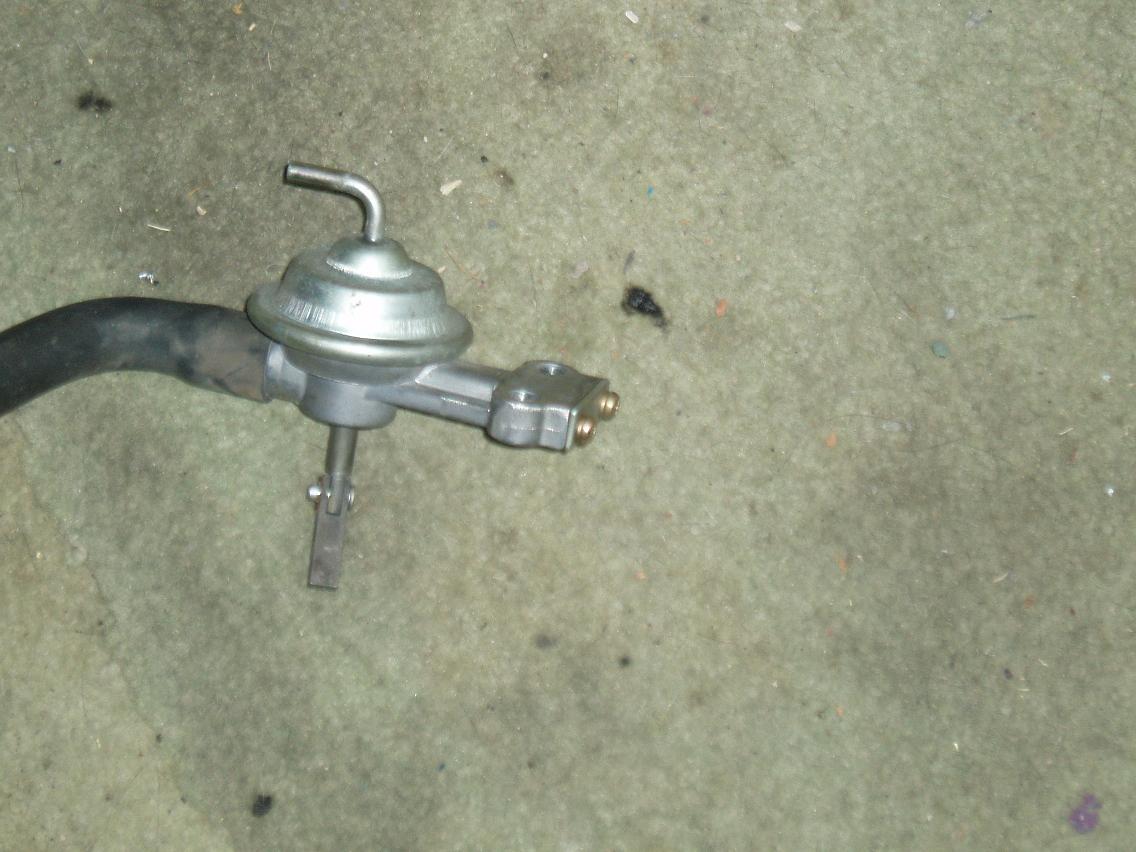

I think the top (larger) nipple in the first picture is for the cold start assist...not sure about the other one right off hand. This is exactly why I take lots of pictures as I take things apart ;-)

Rich



i wish i did take pics but i guess i learned from this time and it most likely wont happen again. i was going over the carb manual and Cali Rx7s dont have cold start! i should be able to plug that off then!

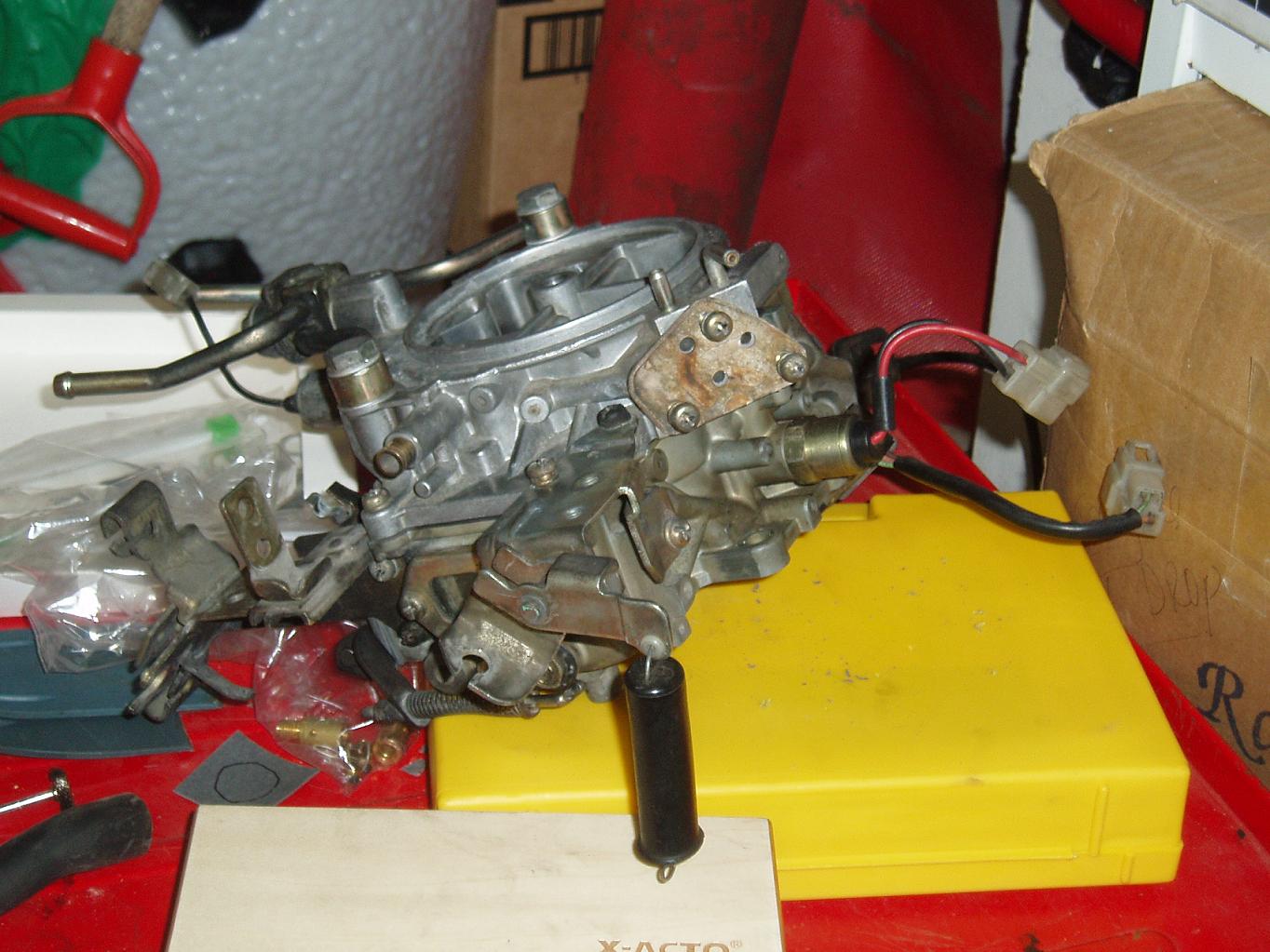

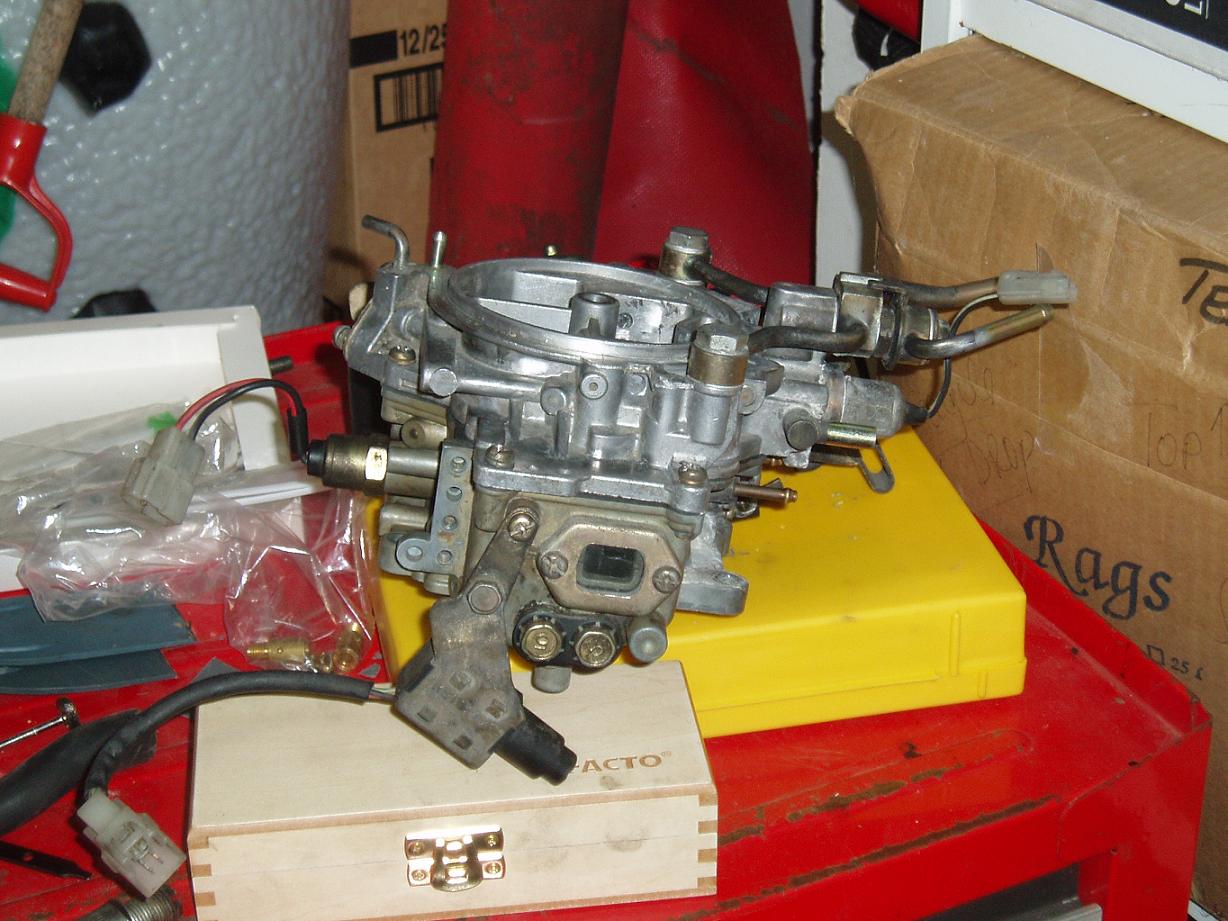

edit: i also removed some things from my carb like the chock and a few other things too i post pics of that today also so that it might make things easyer!

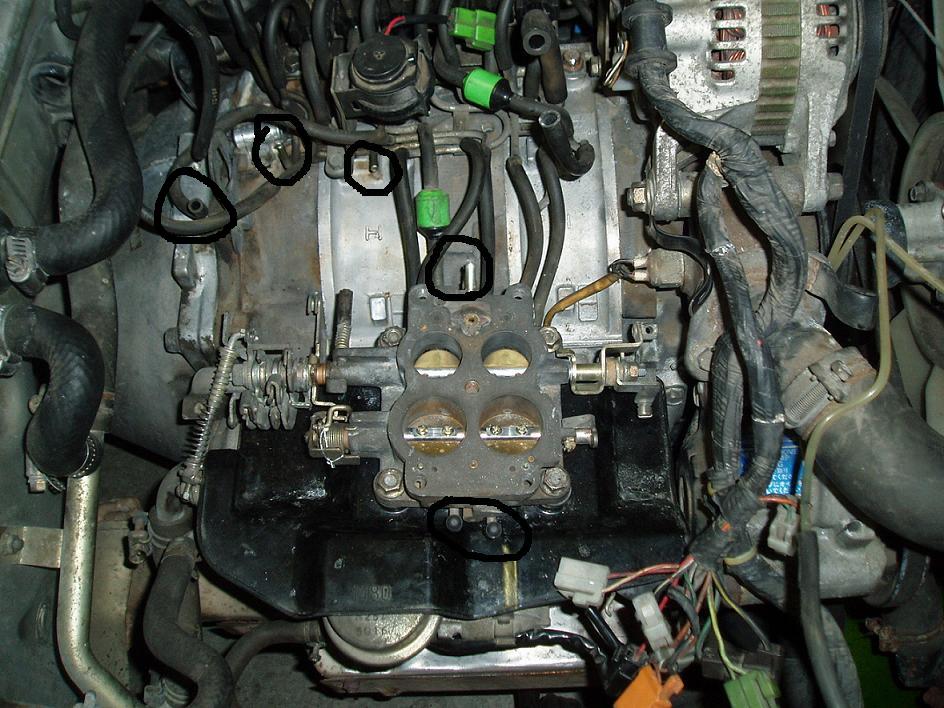

OK I think the 2nd and 3rd circled objects in the 2nd pic are for hoses going to throtle opener and cruise control, but don't quote me on that.



Actually not so sure on the 3rd one, but the other one pretty sure is for the throtle opener. Then you have coasting valve, #2aav. The one connecting to the upper part of the third solenoid from left to right (yellow) goes to coasting valve.

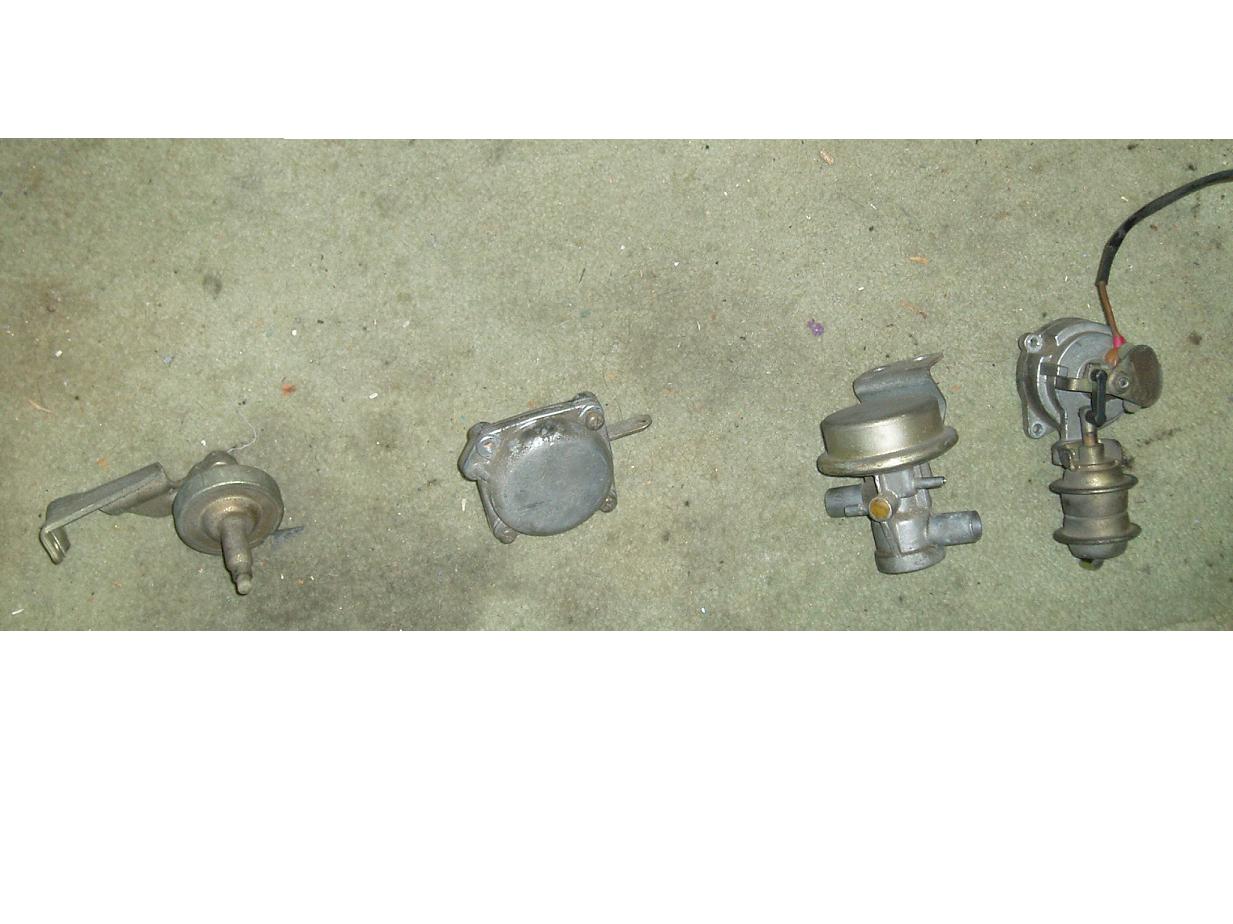

heer is what i have removed from the carb does anyone know if any of this is needed for emissions? i also removed the butterfly from the intake manifold.



if you want to alter any of my pics to show me what goes where you can do it !



The second item from the left in the first picture is the diaphragm for the vacuum secondaries...you will need it unless you convert to mechanical secondaries. You really should get your hands on a factory service manual ;-)

Rich



yeah i can get one here online cant i?



FSM link is in the archives on the 1st page. There is a seperate carb manual in there too.



sweet i thought so but i was sure! Thank You!!!
