Deadly 7

Has anyone deloomed their engine bay. Removed all ununsed wiring and rerouted the looms to make the engine bay cleaner. I'm from South Africa and there arent many RX7 around, so everyone wants to see the engine. Which looks crap with a million and one cables and wires hanging all over it. Any pics and descriptions would be great.
Theres a wierd motor in there that needs t be seen. Dynamite coms in small packages.

Max7

I removed all the emissions wiring back to the firewall, alot of work, but it does clean things up a bit.
this winter its time to move all the wires to the fenderwells.

Gregs

i gotta see pix of that when its done

Max7

someone awhile back posted pix of thiers they did. 3-4 months, it looked VERY sweet!

64mgb

iTrader: (1)

I think IanS has done this...I'll PM him to make sure he sees this.

Rich

Jon_Valjean

Hey! Have a look at the work I've done already:

https://www.rx7club.com/1st-generation-specific-1979-1985-18/how-deloom-your-fbs-engine-bay-pics-included-347104/

PM me if you need any advice - been there, done that!

IanS

iTrader: (4)

I have removed my excess emissions wires from the engine harness itself only. I will begin to work on the rest of them (AC, cruise, etc) when I get some time. Its not too bad. I just marked the wires I needed and cut the rest of them off at the plug.

Hades12

I did the emissions stuff, Just unwraped all of it back to the plug, Cut off all the ones that were loose, got them straight and looking good, then used a roll of 99 cent electrial tape to wrap it all back up.

64mgb

iTrader: (1)

I haven't done this yet, but will, and I won't be cutting any wires unless it's a last resort. You can almost always remove the pins from the connector rather than cutting the wires. This is much cleaner and allows you to easily return the wire to it's original position if you want/need to in the future. If you must cut the wires, I suggest cutting them 3 or 4 inches from the connector, for a similar reason...it makes it easier to splice a wire back in if you want or need to in the future.

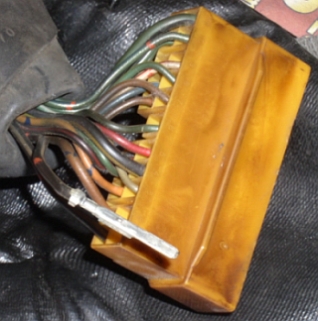

I just went out and removed a pin to show how easy it is...see the picture below. It's from the engine harness where it connects to the front harness just outside the firewall on the passenger's side.

Rich

altf4

I just removed all the wires associated with the ratsnest and stuff....I just squeezed the pind with needle nose pliers, and they slide right out....much eaiser and nicer to do it that way incase you need to go back!
