Clutch master Cylinder questions

Apparently 28 year old clutch master cylinders dont like clutch kicks.

I was just wondering if i could replace my stock(blown) unit with one from an FC? Use the push rod from the FB and everything else from the FC? Would that work?
Old 07-09-11, 01:00 PM
  #2
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,320
Likes: 0
Received 258 Likes on 239 Posts
the studs for mounting the fb master is at 12 and 6 positions. i think i've read somewhere before that the fc master is different.
Old 07-09-11, 01:17 PM
  #3
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
you are correct... i guess i could drill some holes lol
Old 07-09-11, 01:20 PM
  #4
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes on 1,848 Posts
why? just get an FB one, they are CHEAP from places like NAPA
Old 07-09-11, 01:28 PM
  #5
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
70 bucks is not cheap. 16 is. Rock auto ftw
Old 07-09-11, 01:30 PM
  #6
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
while we are on this topic, what is the bore for an FB Clutch MC? 5/8ths?
Old 07-09-11, 02:19 PM
  #7
Round and Round

iTrader: (10)

74RX4's Avatar

Join Date: Aug 2002
Location: SW Florida
Posts: 1,516
Likes: 0
Received 3 Likes on 3 Posts
Attached Thumbnails Clutch master Cylinder questions-mc.jpg
Old 07-09-11, 03:25 PM
  #8
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
thats brake MC.. lol
Old 07-09-11, 03:37 PM
  #9
Round and Round

iTrader: (10)

74RX4's Avatar

Join Date: Aug 2002
Location: SW Florida
Posts: 1,516
Likes: 0
Received 3 Likes on 3 Posts
Try again.

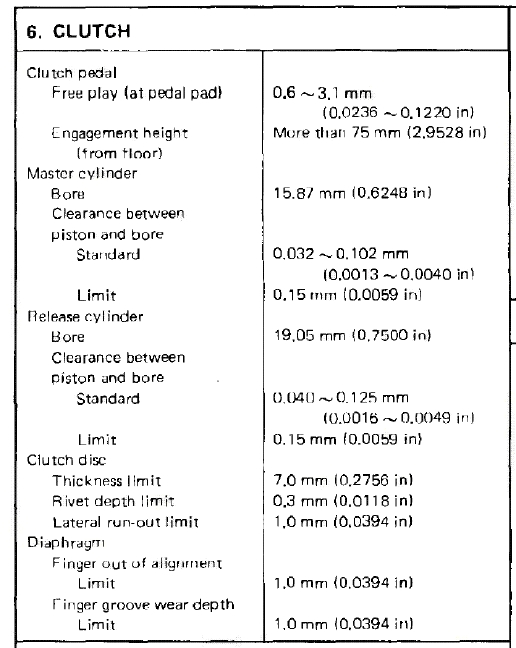

Attached Thumbnails Clutch master Cylinder questions-cmc.jpg
Old 07-09-11, 05:39 PM
  #10
A.K.A. R-Cien

iTrader: (2)

RotoricanNY's Avatar

Join Date: May 2005
Location: VA
Posts: 724
Received 0 Likes on 0 Posts
rock auto ftw, I had to replace mine, good quality too.
Old 07-09-11, 11:25 PM
  #11
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
i didnt end up buying anything to fix it. I took a fc master, took out the internals, modified the piston, and used the FB spring. works wonders.
Old 07-10-11, 12:26 PM
  #12
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,841
Received 2,605 Likes on 1,848 Posts
Originally Posted by Colbskee
i didnt end up buying anything to fix it. I took a fc master, took out the internals, modified the piston, and used the FB spring. works wonders.
today. it will live a short life...
Old 07-11-11, 12:41 PM
  #13
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
Still working. Just blew up the slave now.. lol
Old 07-11-11, 01:07 PM
  #14
Moderator

iTrader: (2)

rxtasy3's Avatar

Join Date: Jun 2002
Location: Spartanburg, SC
Posts: 9,320
Likes: 0
Received 258 Likes on 239 Posts
they tend to do that. that's why many of us suggest when one goes, go ahead and replace both along with the flex hose.
Old 07-12-11, 11:24 AM
  #15
Full Member
Thread Starter

Colbskee's Avatar

Join Date: Apr 2011
Location: Victoria, BC, Canada
Posts: 150
Likes: 0
Received 0 Likes on 0 Posts
good thing i have another slave and another flex hose
