Clutch Master Cyl Rebuild Issue

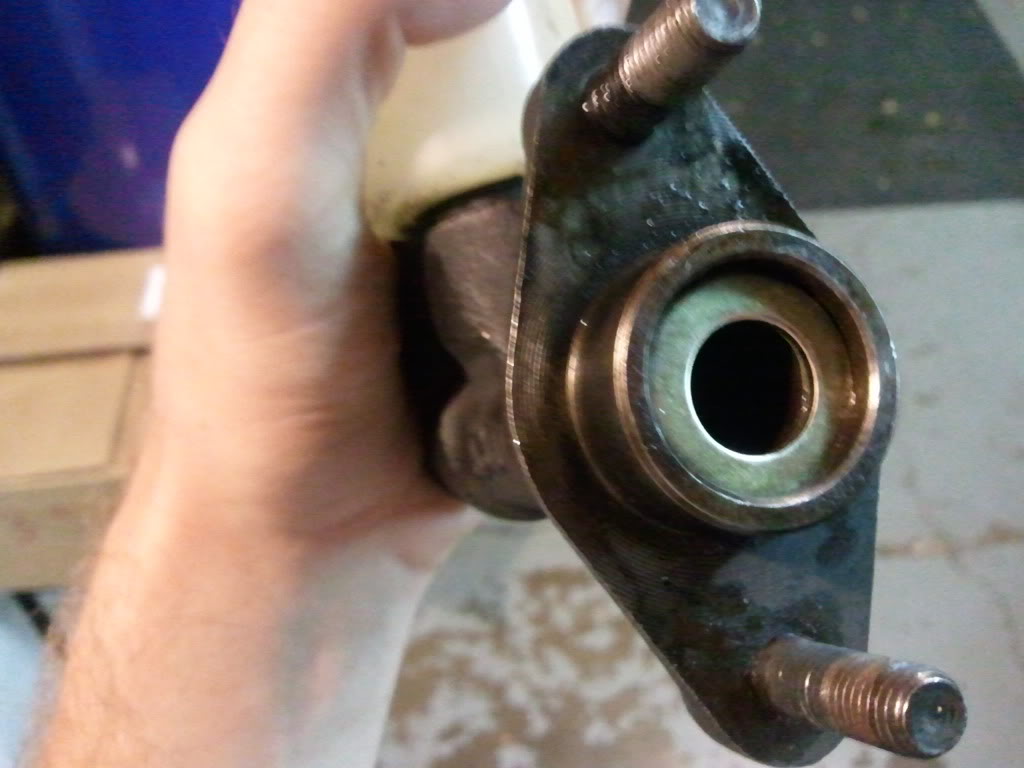

I disassembled my clutch master cyl and cleaned the casting a few weeks ago. Tonight when i went to install the new spring/piston etc I noticed the new washer that sits underneath the snap ring is too big. I have all the old internals except for this washer. Can someone post a picture of a typical washer installed so I can make a new one?
Large washer from the rebuild kit:
Thanks
Large washer from the rebuild kit:
Thanks
#2
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
If you mean that it is to thick and the snap ring won't fit just push the plunger in enough with a screwdriver and install the snap ring . Check the FSM for your car and see what it has .. Lots of times the kit is for more than one application ..Go here and look Foxed.ca - Mazda RX-7 Manuals The FSM for your car shows the washer so just push the plunger in until the clip fits . Gerald m.
#3
Full Member
Thread Starter
iTrader: (2)
Join Date: Oct 2005
Location: DFW, TX
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Gerald, thanks for the comments. If i just install the snap ring, there is nothing to retain the piston in the bore. The ring does not overlap the face of the piston. I guess I need to make a thinner washer that also has a smaller od than the one shown.
#4
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
Maybe take a few pic and post them so we can see better what is going on .Something doesn't seem right .With the thicker washer It might just be a way to put a little extra pressure on the spring to make the piston return proper . Is there a lip between the bore and where the washer goes to keep the washer from going into the bore ??
#6
Full Member
Thread Starter
iTrader: (2)
Join Date: Oct 2005
Location: DFW, TX
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts

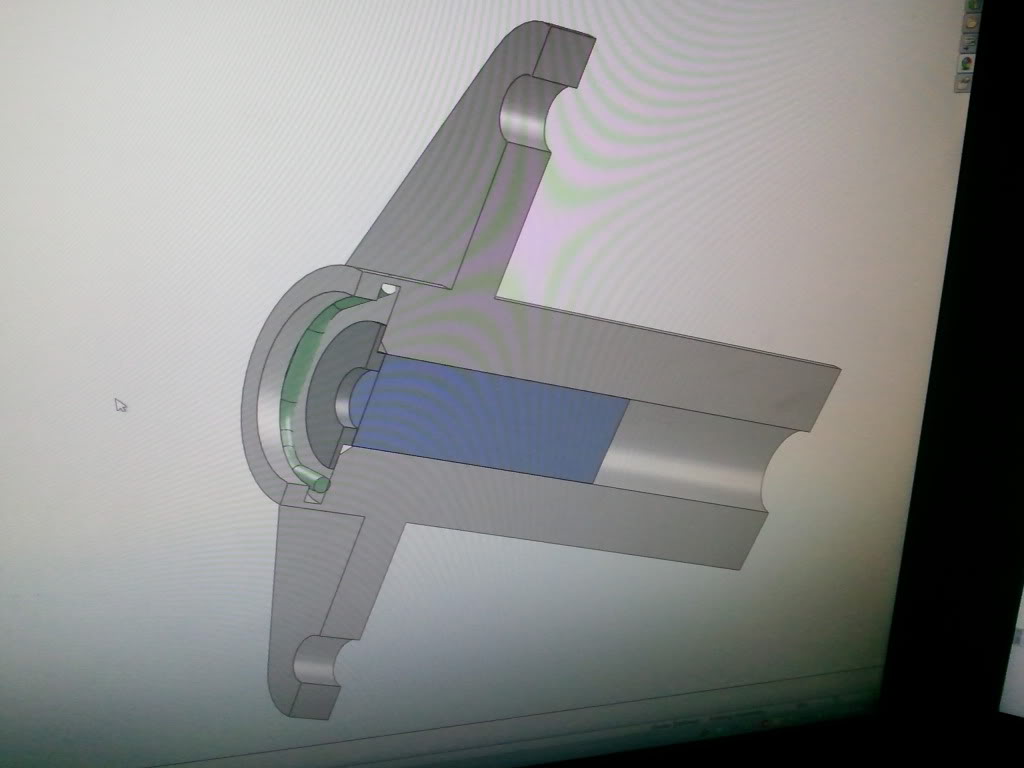

Hmm i must have a different style snap ring because it doesnt overlap the piston. This section view is bad bc the ring isnt modeled correctly but i just turned a little step washer to retain the piston.
thanks for the insight guys.
thanks for the insight guys.
