Question Carb stuff

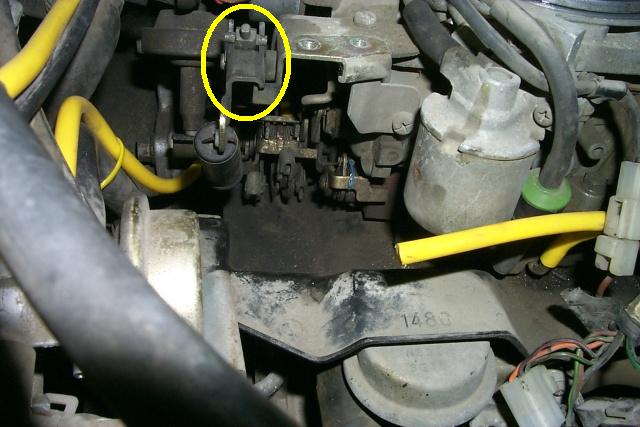

I found a mechanism on my carb.. 85 GSL.. which I'm not sure what it does.. I know its like a lever type thing hooked to a cable, see in the pic.
I'd like to know what this is called.

(the pic is from the passenger side, the circled thing is at the rear of the carb)
Attached Thumbnails Carb stuff-carb.jpg
Reply
Old Sep 27, 2006 | 02:16 AM
  #2
IanS's Avatar
Ricer
Tenured Member 15 Years
iTrader: (4)

Joined: Jun 2004
Posts: 4,424
Likes: 1
From: Washington, Iowa
cant remember, but if you ever see it resting down, under where it is now move it back up to where it is in the pic.
Reply
Old Sep 27, 2006 | 04:25 AM
  #3
slashdawg00110's Avatar
RTFFAQ
Tenured Member 10 Years

Joined: Jun 2003
Posts: 1,049
Likes: 0
From: Olathe, KS USA
What's circled is the lever for the sub-throttle (the rod with a spring) and the throttle return spring (the lower one). Combined, they provide the tension that the throttle cable works against. If they aren't connected, then the throttle plate won't close when you take your foot off the accelerator pedal. Connect them both.
Reply
Old Sep 27, 2006 | 08:06 PM
  #4
Rx7carl's Avatar
Airflow is my life
Tenured Member 10 Years

Joined: Aug 2002
Posts: 6,736
Likes: 2
From: Orlando, Fl
Slash is right, but it looks to me like its hooked up right.
Reply
Old Sep 27, 2006 | 11:15 PM
  #5
GSL12a85's Avatar
Thread Starter
Full Member
Tenured Member 05 Years

Joined: Sep 2006
Posts: 99
Likes: 0
From: Alberta, Canada
Oh thats someone elses carb.. i just used it to show what i was talking about
