Carb rebuild finished - where does this cable go?
#1
Full Member
Thread Starter
Join Date: Jul 2004
Location: East Syracuse, NY
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
Carb rebuild finished - where does this cable go?

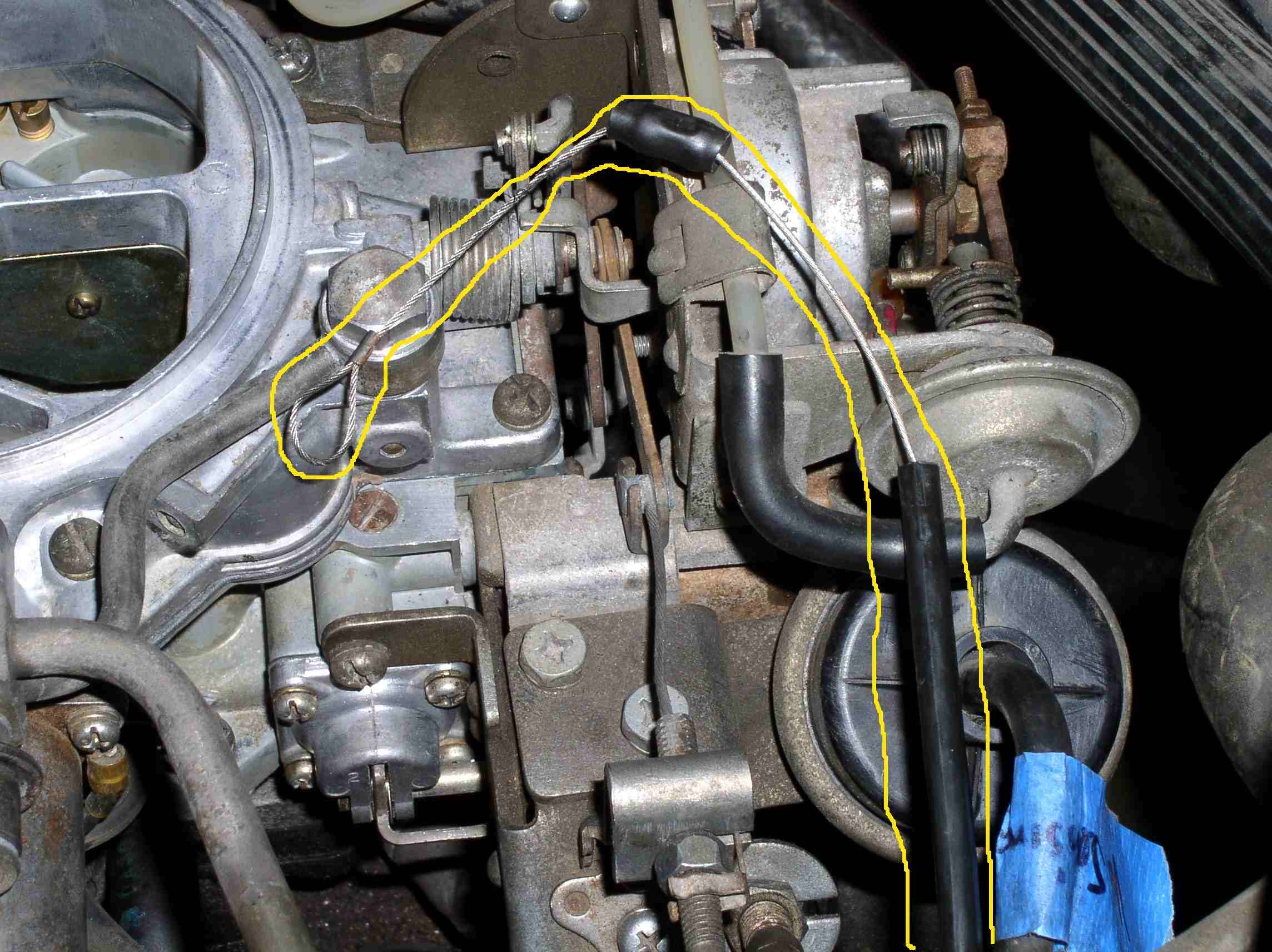

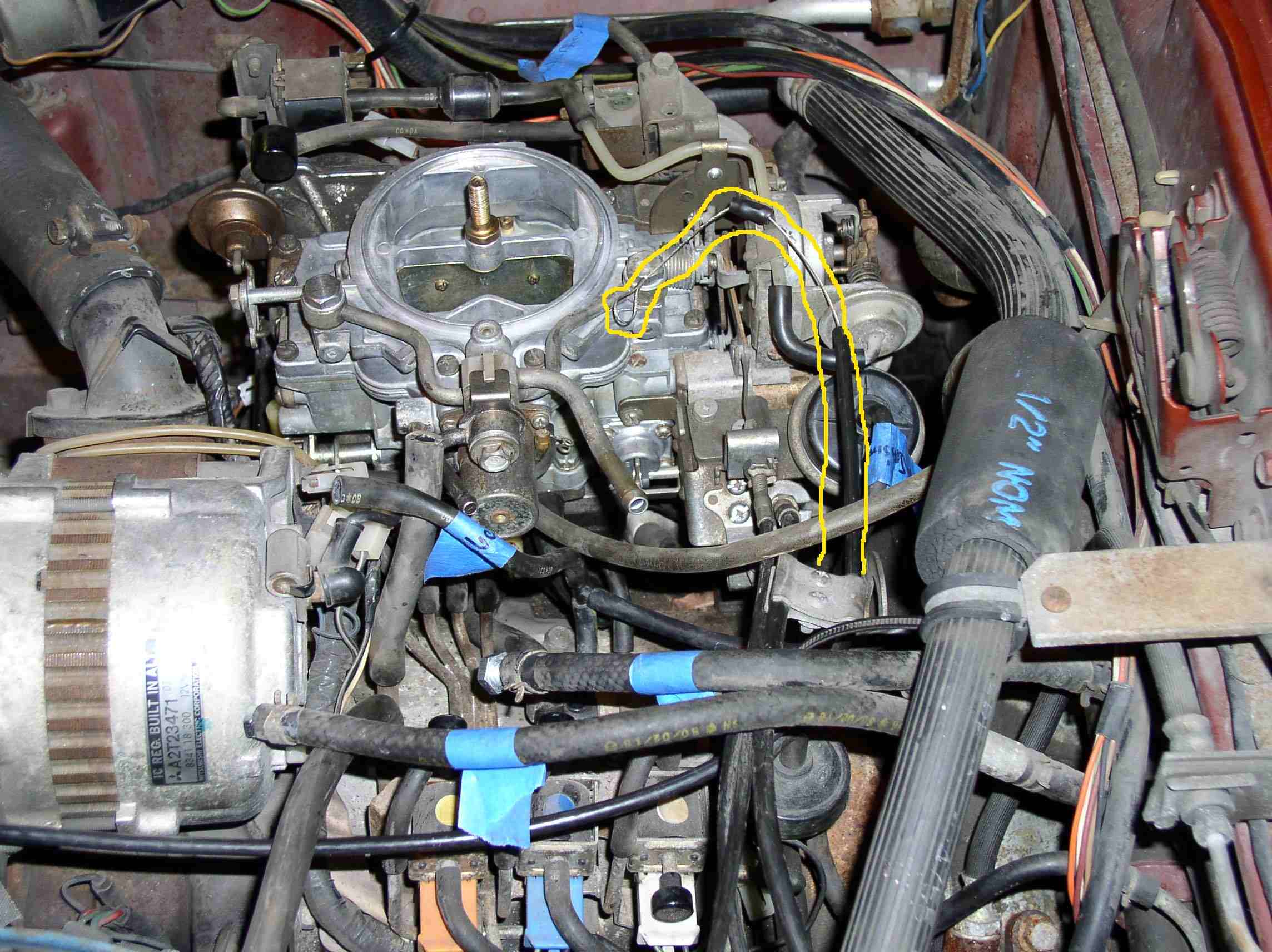

I finished rebuilding the carb and I can't remember where the cable in the photo goes. It's on an 80 and I'm pretty sure it's stock. I labeled everything except the cables...all the others were obvious. I must have thought this one was too at the time of disconnecting.
Last edited by rx7haze; 07-17-07 at 06:39 PM.
#3
Full Member
Thread Starter
Join Date: Jul 2004
Location: East Syracuse, NY
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts

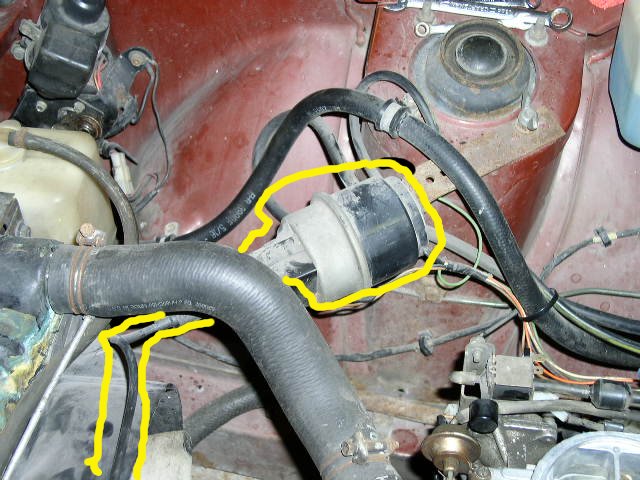

Sorry, just realized they didn't go through...too large. I compressed the pics. I got the 3 you mentioned hooked up, although you can't see the 3rd in those pics. That last one doesn't show up anywhere in the Haynes manual or the FSM. It's got that little loop on the end. Based on the curve of the cable it looks like it should head down below toward the throttle, but I don't see anything. Oh, and it runs to this thing attached by the passenger's side wheel well.
Last edited by rx7haze; 07-17-07 at 06:52 PM.
#5
Full Member
Thread Starter
Join Date: Jul 2004
Location: East Syracuse, NY
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
There is an aftermarket cruise installed, has not worked since I've owned it. Are you pretty sure that's what it is? If so I have no problems leaving it disconnected.
